Schematic Diagram - Linear Technology DC1812A Demo Manual

DEMO MANUAL DC1812A

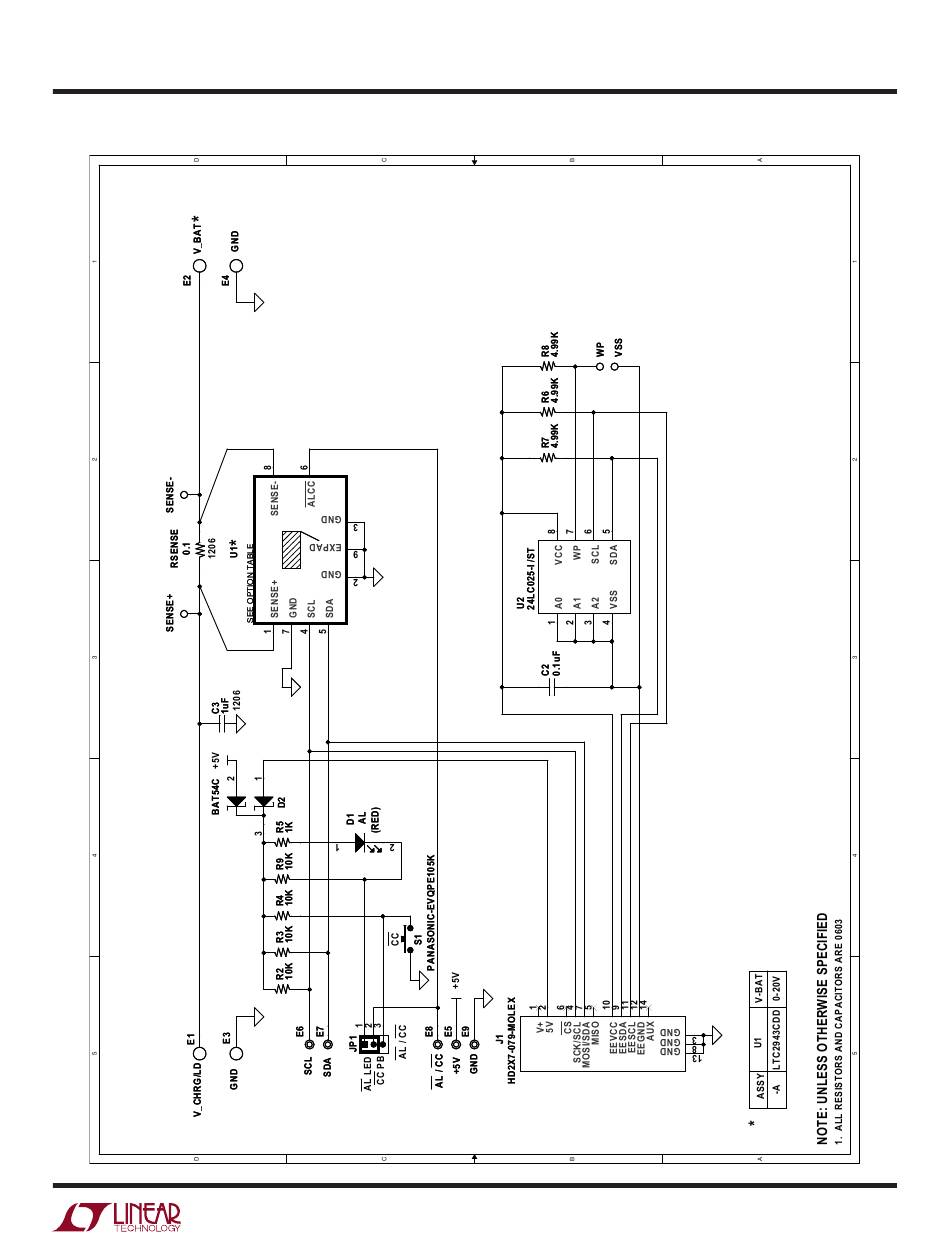

schematic Diagram

dc1812af
11
