Quikeval interface
CouLomB CounTER TAB
This tab contains time based graphical plots of charge
and current. The charge plot displays the change in ac-
cumulated charge since the start of a scan with respect to
time in mAh or coulombs depending on user input. The
current plot displays the change in current with respect
DEMO MANUAL DC1812A
to time in mA. If the current exceeds 1A, then the graph
auto scales to display the current in units of amperes. If
a scan is restarted, the plots start from the beginning. If
manual mode is selected, only the charge plot is active.
Once the plotted line reaches 300, the x-axis scrolls to
accommodate by 30 second intervals.

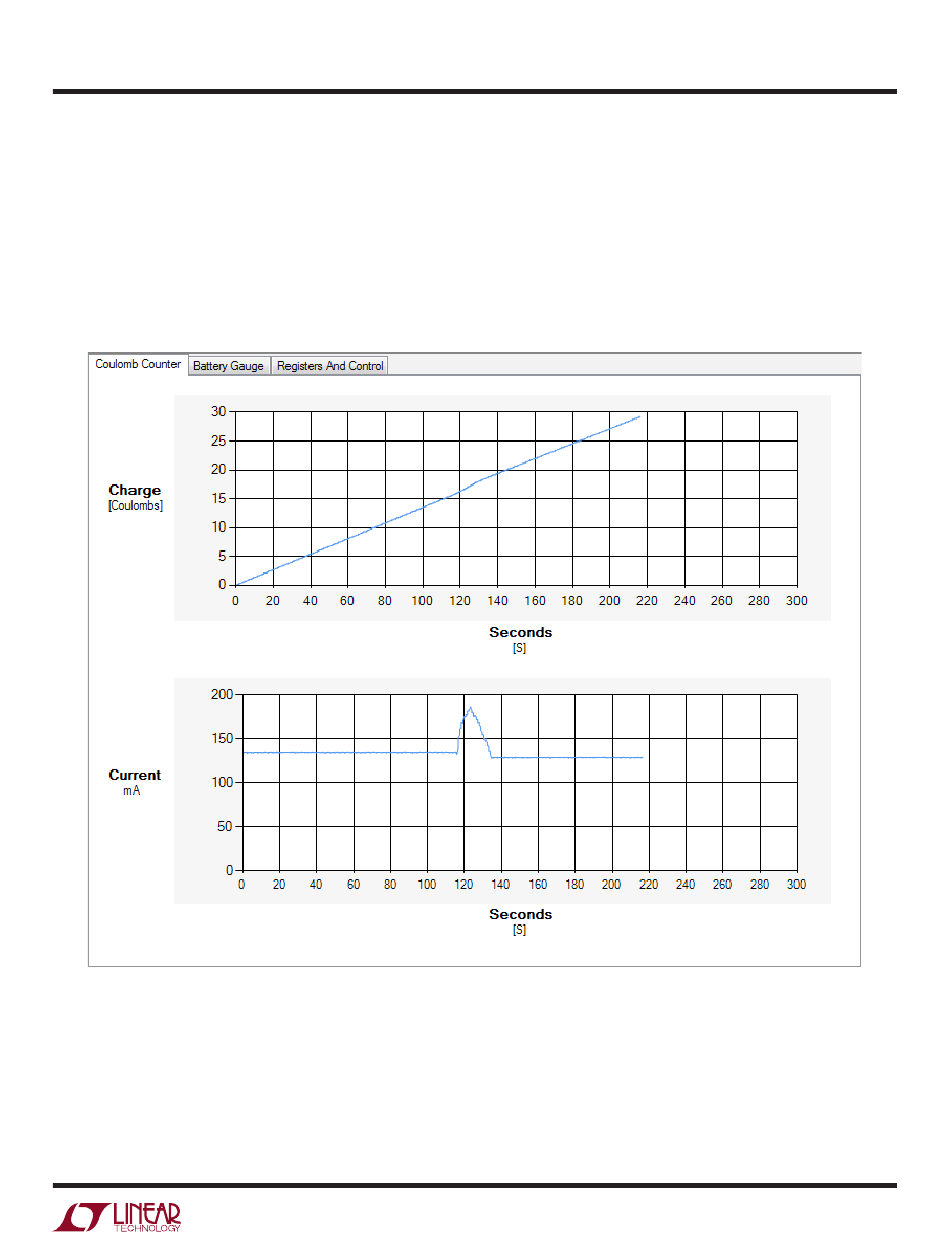

Figure 4. Coulomb Counter Tab
