Quikeval interface
The DC1812A can be connected to a DC590 and used
with the QuikEval software. The DC590 connects to a PC
through USB. QuikEval automatically detects the demo
board and brings up the LTC2943 evaluation software
interface (Figure 3).
DEMO MANUAL DC1812A
Interface Design
The QuikEval interface consists of three tabs along with a
column that displays accumulated charge since the start of
the scan, voltage, current and temperature. A start button
allows convenient polling of the registers.

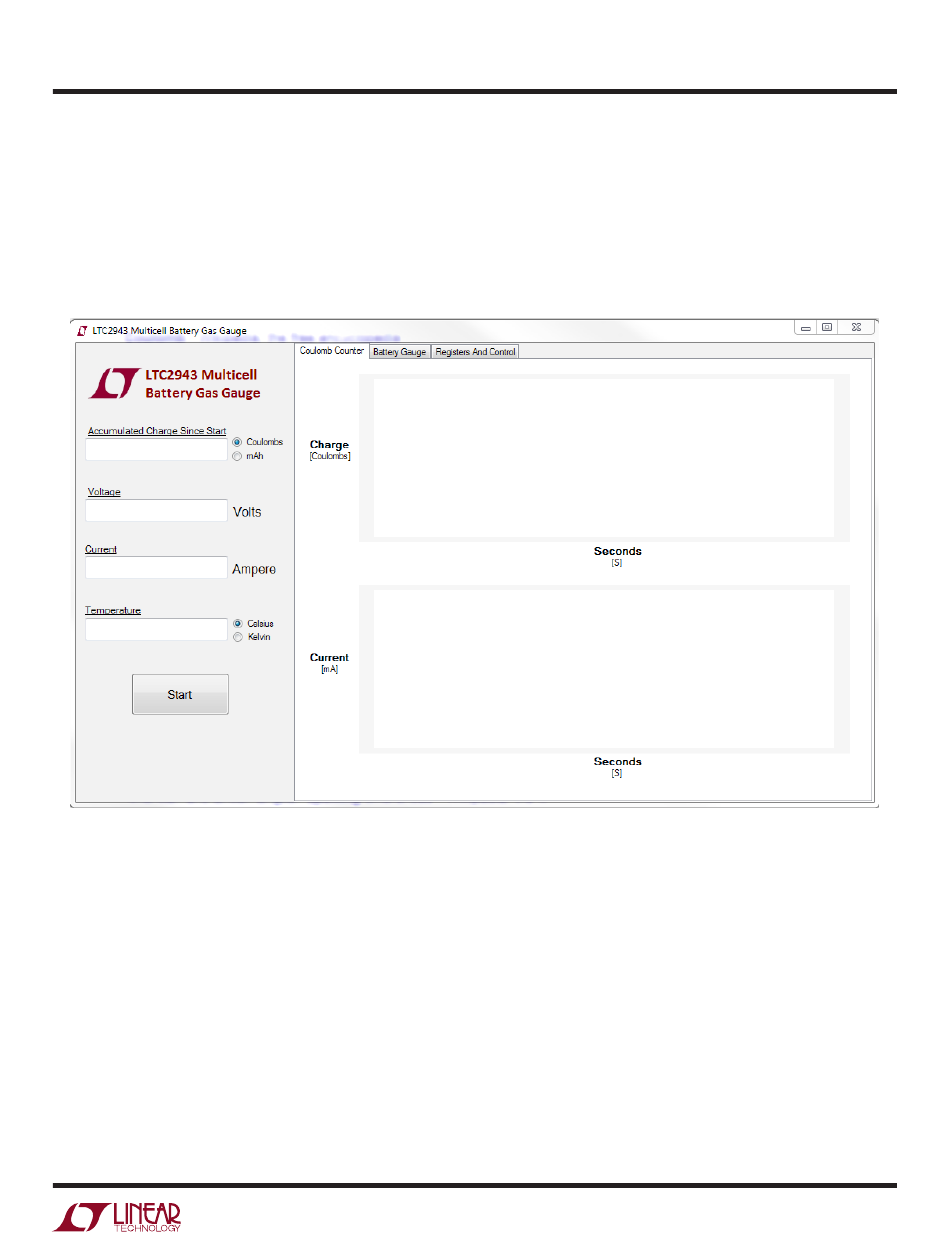

Figure 3. LTC2943 QuikEval Interface
