DEMO MANUAL DC1812A
Quikeval interface
REGISTER AnD ConTRoL TAB
The register and control tab provides a detailed view of the
LTC2943 device registers as well as provides convenient
means to read and write to them.
2
Address/I C Status
The write address for the LTC2943 is C8h and the read
address is C9h. If an error occurs while reading from
2
the LTC2943, the I C status will display an error and the
corresponding LED will turn red. Otherwise, the status is
good and the LED remains green.
8
Sense Resistor
By default, the demo board is populated with a 100mΩ
sense resistor to measure a maximum full-scale current of
500mA. If a different full-scale value current is desired, the
sense resistor can be easily replaced and the correspond-
ing resistor value can be set in the interface. Every time a
new resistor value is entered, the interface will recalculate
a suggested prescalar and q
it in the "LSB Information" section.

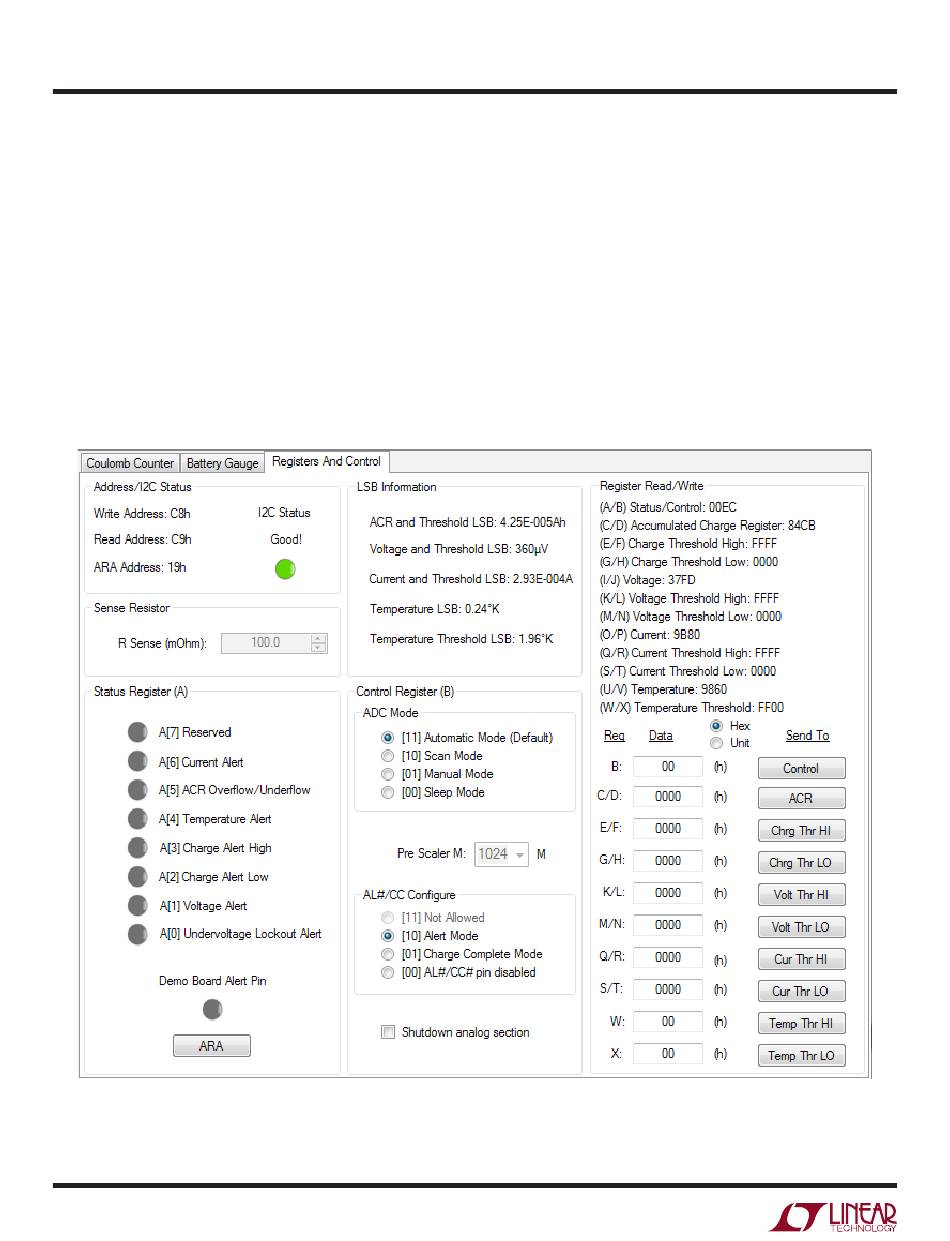

Figure 8. Register and Control Tab
automatically and display
LSB
