DESCRIPTION
Demonstration circuit 1819A features the LTC
dual ideal diodes. Each independent ideal diode can be
used to replace a standard diode for improved low forward
drop in applications requiring maximum headroom and
overall system efficiency.
The input supply voltage ranges are from 1.7V to 5.5V for
each input/output pair. As initially configured, LTC4415 can
provide a maximum current limit of 4A for each diode,
but is jumper-selectable up to 6A (internal current limit).
The voltage of the current limit pins, CLIM1 and CLIM2,
can also be monitored for a scaled representation of the
output current.
For evaluation, each diode can be controlled by the EN-
ABLE CONTROL jumper, JP1, or by the enable input pins,
PERFORMANCE SUMMARY
PARAMETER
Minimum Input Voltage
Maximum Input Voltage
Maximum Output Current
CLIMx Clamp Voltage
Forward Voltage Drop
Reverse Turn-Off Voltage
Enable Threshold

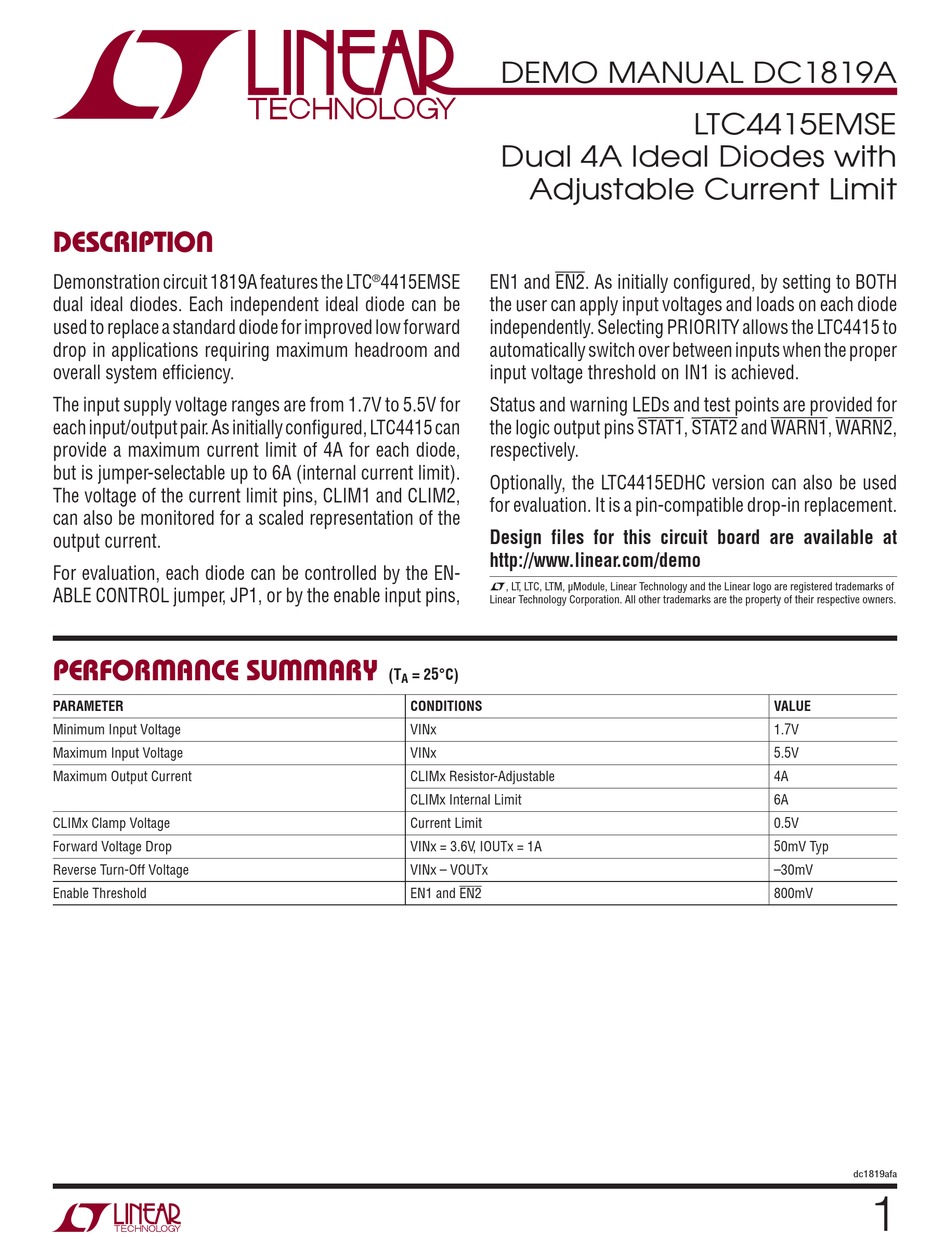

DEMO MANUAL DC1819A
Dual 4A Ideal Diodes with
Adjustable Current Limit
EN1 and EN2. As initially configured, by setting to BOTH
®
4415EMSE
the user can apply input voltages and loads on each diode
independently. Selecting PRIORITY allows the LTC4415 to
automatically switch over between inputs when the proper
input voltage threshold on IN1 is achieved.
Status and warning LEDs and test points are provided for
the logic output pins STAT1, STAT2 and WARN1, WARN2,
respectively.
Optionally, the LTC4415EDHC version can also be used
for evaluation. It is a pin-compatible drop-in replacement.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, μModule, Linear Technology and the Linear logo are registered trademarks of
Linear Technology Corporation. All other trademarks are the property of their respective owners.
(T
= 25°C)
A
CONDITIONS
VINx
VINx
CLIMx Resistor-Adjustable
CLIMx Internal Limit
Current Limit
VINx = 3.6V, IOUTx = 1A
VINx – VOUTx
EN1 and EN2
LTC4415EMSE
VALUE
1.7V
5.5V
4A
6A
0.5V
50mV Typ
–30mV
800mV
dc1819afa
1
Advertisement
Related Manuals for Linear Technology DC1819A
Summary of Contents for Linear Technology DC1819A
- Page 1 For evaluation, each diode can be controlled by the EN- L, LT, LTC, LTM, μModule, Linear Technology and the Linear logo are registered trademarks of ABLE CONTROL jumper, JP1, or by the enable input pins, Linear Technology Corporation. All other trademarks are the property of their respective owners.
-
Page 2: Quick Start Procedure
DEMO MANUAL DC1819A QUICK START PROCEDURE Demonstration circuit 1819A is easy to set up to evaluate Optional the performance of the LTC4415. Refer to Figure 1 for 1. For prioritization enable switchover set jumper JP1 to proper measurement equipment setup and follow the PRIORITY. - Page 3 DEMO MANUAL DC1819A QUICK START PROCEDURE – VIN1 – – – LOAD1 – VIN2 – – – LOAD2 Figure 1. Proper Measurement Equipment Setup dc1819afa...
- Page 4 DEMO MANUAL DC1819A PARTS LIST ITEM REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER Required Circuit Components C1, C2, C3, C4 CAP , CHIP , X5R,10μF , ±10%, 16V, 0805 MURATA, GRM21BR61C106KE15L RES, CHIP , 100k, ±1%, 1/16W, 0402 VISHAY, CRCW0402100KFKED RES, CHIP , 2k, ±1%, 1/16W, 0402 VISHAY, CRCW04022K00FKED RES, CHIP , 21.5k, ±1%, 1/10W, 0402...
-
Page 5: Schematic Diagram
Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights. - Page 6 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
- Page 7 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Analog Devices Inc. DC1819A...
