Description
Demonstration circuit 1811B-A is a dual-output, high
efficiency, high density, µModule
26.5V input range. Each output can supply 13A maximum
load current. The demo board has a
regulator, which is a dual 13A or single 26A step-down
regulator with PMBus power system management. Please
see LTM4676 data sheet for more detailed information
The DC1811B-A powers up to default settings and produces
power based on configuration resistors without the need for
any serial bus communication. This allows easy evaluation
of the DC/DC converter. To fully explore the extensive power
system management features of the part, download the GUI
software LTpowerPlay™ onto your PC and use LTC's I
SMBus/PMBus dongle DC1613A to connect to the board.

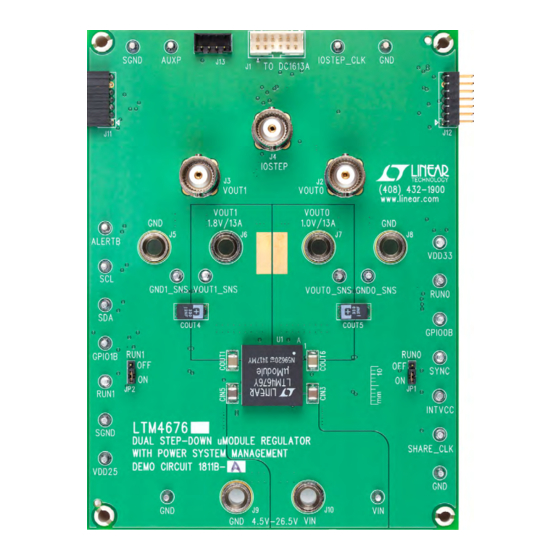

BoarD photo
Regulator with PMBus Digital
Power System Management
regulator with 4.5V to
®
LTM
4676
µModule
®
2
C/
Figure 1. Dual-Output LTM4676/DC1811B-A Demo Circuit
DEMO MANUAL DC1811B-A
Dual Step-Down µModule
LTpowerPlay allows the user to reconfigure the part on the
fly and store the configuration in EEPROM, view telemetry
of voltage, current, temperature and fault status
GUI Download
The software can be downloaded from:
http://www.linear.com/ltpowerplay
For more details and instructions of LTpowerPlay, please
refer to LTpowerPlay GUI for LTM4676 Quick Start Guide.
Design files for this circuit board are available at
http://www.linear.com/demo/DC1811BA
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
LTpowerPlay is a trademark of Linear Technology Corporation. All other trademarks are the
property of their respective owners.
LTM4676
dc1811baf
1
