- Page 1 UM11368 JN5189-DK006 Development Kit User Guide Rev.1.1 — 28 April 2020 Document information Info Content Keywords JN5189 DK, User Guide Abstract This document is a user guide for the JN5189 Development Kit...
- Page 2 Added Lighting Expansion and USB Dongle Contact information For more information, please visit: http://www.nxp.com UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 2 of 21...
-
Page 3: Introduction

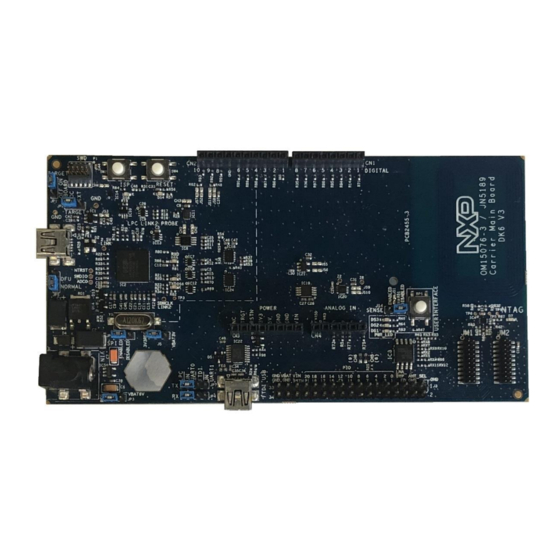

Generic expansion board • Lighting Expansion board Figure 1 Board overview UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 3 of 21... -
Page 4: Carrier Main Board
Support for external debug probes. • Power, Reset, ISP and UART Tx/Rx LEDs. UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 4 of 21... -
Page 5: Board Layout And Settings
JN5189 Reset LED – LED is on anytime the Target RESET is pulled low. UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide... - Page 6 Expansion connectors, including Arduino Uno rev3 compatible connectivity. CN3, CN4 JM1, JM2 JN5189 module headers UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 6 of 21...
-
Page 7: Led Indicators
JN5189 Reset LED – LED is on anytime the Target RESET is pulled low. UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide... -
Page 8: Arduino Connectors
Host computer. When the JN5189 Target is to be debugged from an UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide... -
Page 9: Debug Configurations
JN5189 Target section of the board from the FTDI header (J1) or UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide... -
Page 10: On-Board Link2 Flash Programming
Fit jumper JP2 across pins 2 - 3 (External Target). UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 10 of 21... -
Page 11: Jn5189 Modules
• Infrared Emitting LED Vishay VSMB2948SL connected to JN5189 IO20_IR_Blaster UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 11 of 21... - Page 12 FTDI driver chip for the USB port must be isolated by removing resistors R9 and R16). Figure 7 Generic expansion board UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 12 of 21...
-
Page 13: Light Expansion Board
1 Accelerometer & Magnetometer (IC9) connected by I2C Figure 8 Lighting expansion board UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 13 of 21... -
Page 14: Jn5189 Usb Dongle
(square pad) and negative probe to J14 pin 2. Use Ohm’s law to calculate the current UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide... -
Page 15: Current Measurement With A Multimeter
This signal goes to the module (JM1.17) and the expansion connector (J3.31) UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 15 of 21... - Page 16 To measure the current using multimeter, remove R51 and place the multimeter across J14 pins 1 and 2. Figure 12 R51 Location UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 16 of 21...
-
Page 17: Io Considerations
8,9 (UART 0) Remove jumpers on JP4 and JP7 0,1 (UART 1) UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 17 of 21... -
Page 18: Running The Dk6 Board At Different Voltages
3V3OUT signal otherwise this will continue to supply 3.3V to the board. The circuit is shown below in Figure 14 UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 18 of 21... - Page 19 It is important to leave C49 connected to Pin10 of the FT230A. To achieve this modify the boards as shown in Figure 15. Figure 15 3V3OUT modification UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 19 of 21...
-
Page 20: Legal Information
For sales office addresses, please send an email to: salesaddresses@nxp.com Date of release: 04/2020 Document identifier: UM11368 UM11368 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2020. All rights reserved. Rev.1.1 — 28 April 2020 User Guide 20 of 21... -
Page 21: Table Of Contents
JN5189 NXP Semiconductors JN5189-DK006 Development Kit User Guide 9. Contents Introduction ............3 Purpose .............. 3 Kit contents ............3 Carrier Main Board ..........4 Feature summary ..........4 Board layout and settings ........5 LED indicators ............ 7 ARDUINO connectors ........8 Buttons ...............
