1.2 AppBox C21 Applications

The AppBox C21 can be used in the following applications:

Low cost process/industrial control

Automation

Metering

Motor control

Systems operating in noisy environments

Communications converter (CAN-RS485-LIN)

Operates with industrial voltage levels

Reconfigurable applications with AppIO Modules

Entry level microcontroller educational tool

1.3 What's Included In the AppBox C21

The Spectrum Digital AppBox C21 product (Part/SKU #: 703909-0001) includes:

AppBox C21 in anti-static bag

Terminal block header for power input

Product information card
NOTE: This product does not include any software or drivers. Development tools (Atmel-ICE and
Software code generation suite) can be obtained from Microchip/Atmel at:
https://www.microchip.com/development-tools/.

1.4 AppBox C21 Front Panel

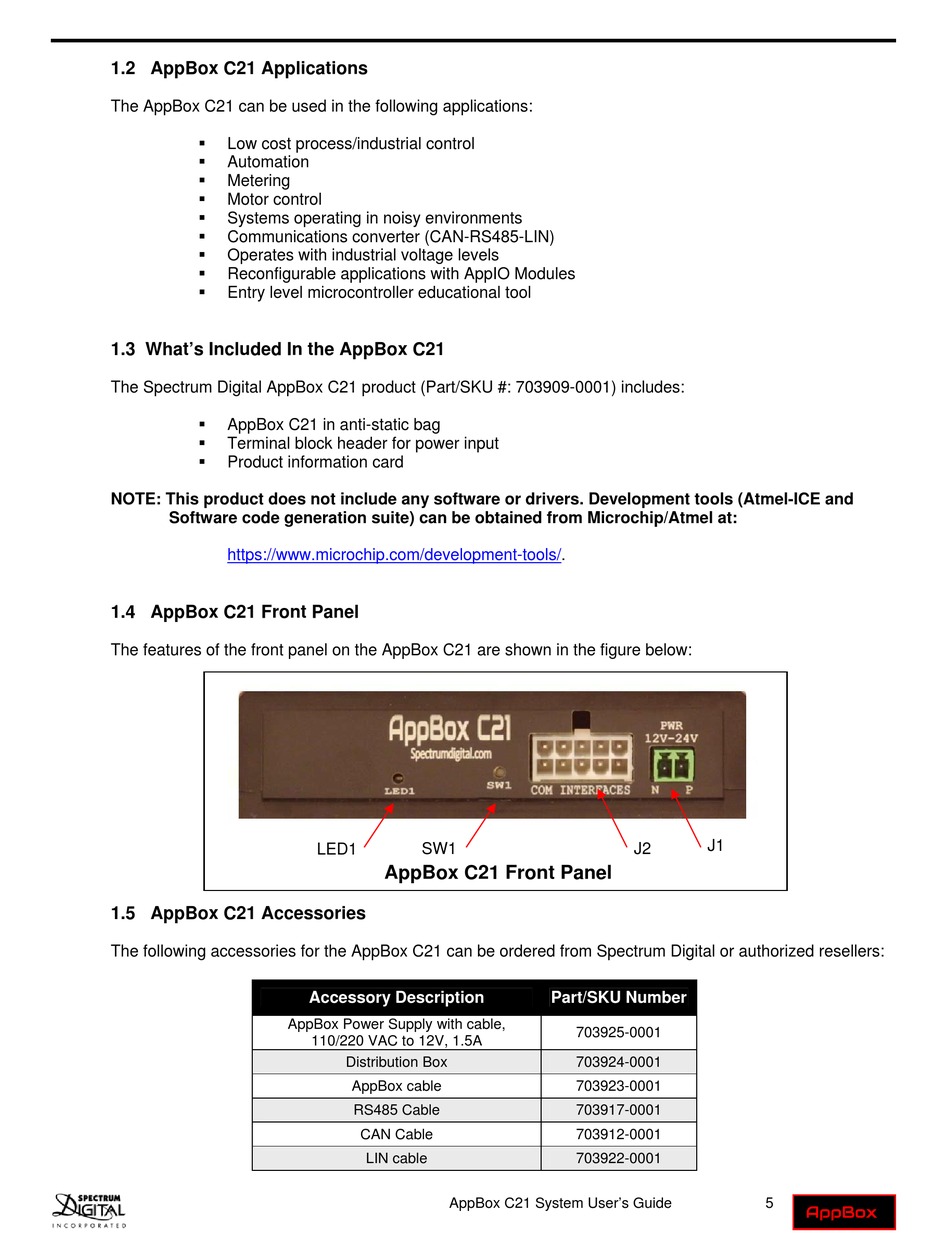

The features of the front panel on the AppBox C21 are shown in the figure below:

1.5 AppBox C21 Accessories

The following accessories for the AppBox C21 can be ordered from Spectrum Digital or authorized resellers:
AppBox Power Supply with cable,
SW1
LED1
AppBox C21 Front Panel
Accessory Description
110/220 VAC to 12V, 1.5A
Distribution Box
AppBox cable
RS485 Cable
CAN Cable
LIN cable
AppBox C21 System User's Guide
J1
J2
Part/SKU Number
703925-0001
703924-0001
703923-0001
703917-0001
703912-0001
703922-0001
