Product Dimensions - Whirlpool Custom Series Installation Instructions Manual

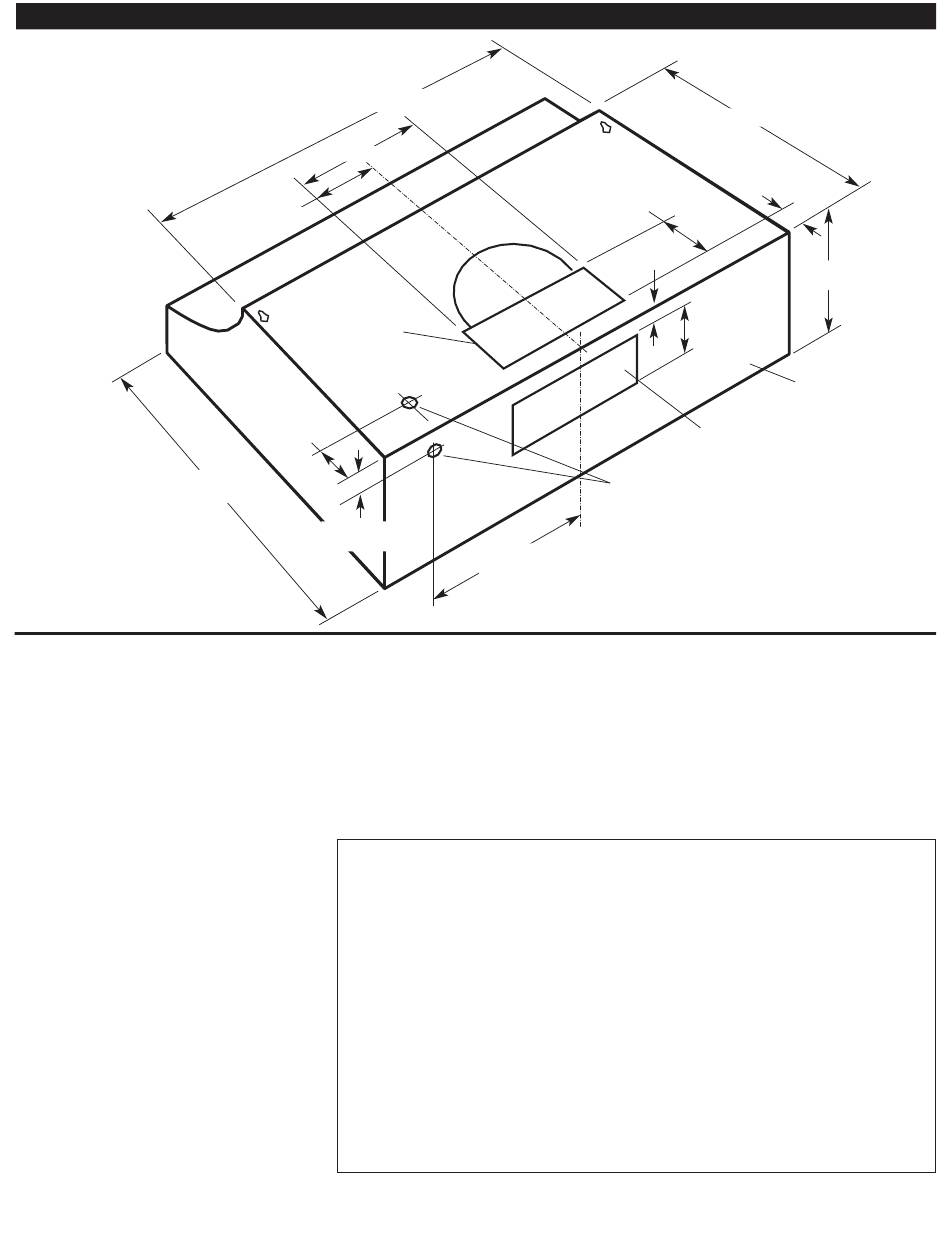

Product
dimensions
17-1/2"
(44.5 cm)
A.
A 115-volt, 60-Hz, AC-only,
fused electrical supply is required. The
total ampere load used, including the
range hood, must not exceed 90% of
the rated capacity of the circuit. The
ampere rating of the range hood is
located on the model/serial number
rating plate located on the side
cover of the blower motor housing.
B.
The range hood must be
connected with copper wire only.
C.
The range hood should
be connected directly to the
fused disconnect (or circuit
breaker) box through flexible
armored or nonmetallic sheathed
copper cable. A U.L./CSA-listed
strain relief must be provided at
each end of the power supply
cable. Wire sizes (COPPER WIRE
ONLY) and connections must
conform with the rating of the
appliance as specified on the
model/serial rating plate.
29-7/8" (75.9 cm)
10" (25.4 cm)
5" (12.7 cm)
knockout for
rectangular
roof vent
2"
(5.1 cm)
3/4"
(19.1. mm)
Wire sizes must conform to the
requirements of the National
Electrical Code ANSI/NFPA
70 — latest edition* or Canadian
Electrical Code, C22.1 and C22.2
No. 113-M1984 (or latest
edition),** and all local codes
and ordinances.
WARNING — TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable Codes and
Standards, including fire related
construction. Sufficient air is
needed for proper combustion
and exhausting of gases through
the flue (chimney) of fuel
burning equipment to prevent
back drafting. Follow the
heating equipment
manufacturer's guideline and
3-1/4"
(8.3 cm)
3/8"
(9.5 mm)
wiring
knockouts
7-1/2"
YRH2330X series vent
(19.1 cm)
hoods can be used for
vented installations only.
12" (30.5 cm)
1-1/2"
(3.8 cm)
6"
(15.2 cm)
3-1/4"
(8.3 cm)
rear of
hood
knockout for
rectangular
back vent
safety standards such as those
published by the National Fire
Protection Association
(NFPA),and the American
Society of Heating Refrigeration
and Air Conditioning Engineers
(ASHRAE), and the local code
authorities.
When cutting or drilling into wall
or ceiling, do not damage
electrical wiring and other
hidden utilities.
Ducted fans must always be
vented to the outdoors.
WARNING — To reduce the risk
of fire, use only metal ductwork.
Page 3
