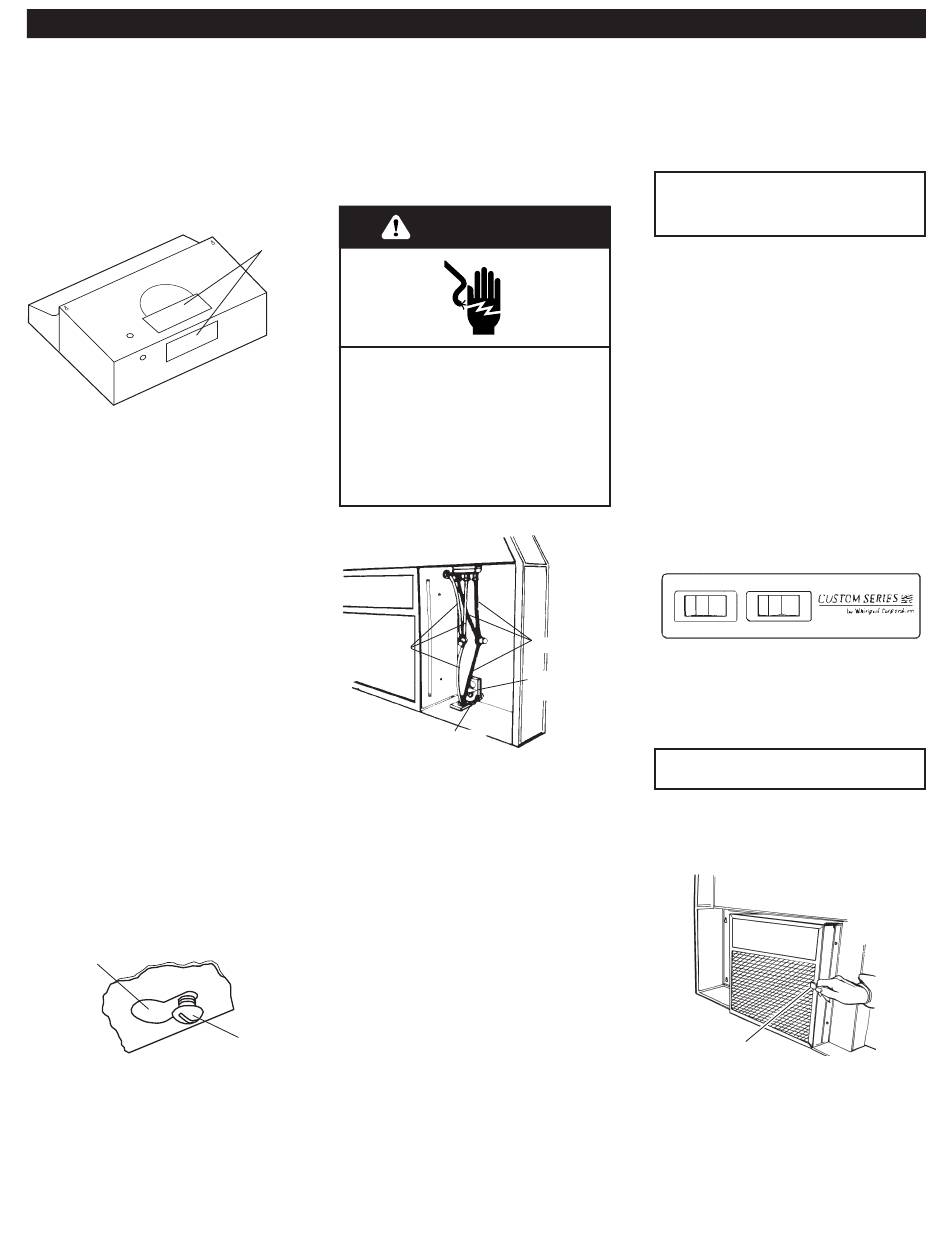

9.
Install vent through the vent
opening in upper cabinet or wall.
Complete venting system
according to method needed.
See "Venting requirements." Use
caulking to seal exterior wall or
roof opening.
10.
If roof or wall cap does
not have a damper, attach
rectangular damper supplied with
hood to selected rectangular vent
opening. If damper is attached to
back of range hood, be sure
damper hinge is toward the top.
If roof or wall cap does not have a
damper and round vent is used,
install damper (supplied with
hood) in vent to prevent air from
flowing back into vent.
If roof or wall cap has a damper,
Do not use damper blade supplied
with range hood.
11.
Do not turn on power until
installation is complete. Run wiring
through wall or cabinets
according to the National
Electrical Code and local codes
and ordinances. Use caulking to
seal ceiling or outside wall
opening.
front of hood
keyhole slot
Check that
screw is in
narrow neck
of slot.
12.
Start screws in the center
of the narrow neck of each of the
four keyhole mounting screw slots
marked on the cabinet bottom.
13.
position, feeding electrical wire
through wiring opening. Tighten
mounting screws to cabinet,
making sure mounting screws are
in narrow neck of slots.
dampers
Electrical Shock Hazard
Disconnect power before
making electrical connections.
Connect ground wire to green
ground screw in terminal box.
Failure to do so can result in
death or electrical shock.
white
14.
black wires of the power supply
cable to the white and black leads
in the range hood with twist-on
connectors.
Connect the power supply ground
wire to the green ground screw
inside the range hood terminal box.
Use caulking to seal wire opening.
Replace terminal box cover.
Turn power supply on.
screw
Lift range hood into final
WARNING
black
green ground
screw
ground
wire
Connect the white and
Use & Care
Information
OPERATION OF
RANGE HOOD
For best results, turn range hood
fan on at beginning of cooking
and allow it to run until all smoke
and odors are removed from
room.
To operate fan:
Press fan control to turn fan on
and off and adjust fan speed.
Speed may be increased or
decreased anytime during range
hood operation.
To operate light:
Press light control to turn light on
or off. Light may be turned to off
or on anytime during range hood
operation.
LIGHT
FAN
If the range does not operate:
Check that the circuit breaker is
not tripped or the house fuse
blown.
CARE OF RANGE HOOD
Filter/light lens
For best results, remove and clean
often.
filter tab
To remove filter/light lens:
Pull firmly on filter tab to remove
filter/light lens from range hood.
To clean filter/light lens:
Place filter/light lens in dishwasher
or hot sudsy water to clean.
