Quick Start Guide
TWR-TWRPI-BD
Tower Plug-In Carrier Module
TOWER SYSTEM
Arrow.com.
Downloaded from

Advertisement

loading
Need help?

Need help?

Do you have a question about the Freescale TWR-TWRPI-BD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NXP Semiconductors Freescale TWR-TWRPI-BD

Summary of Contents for NXP Semiconductors Freescale TWR-TWRPI-BD

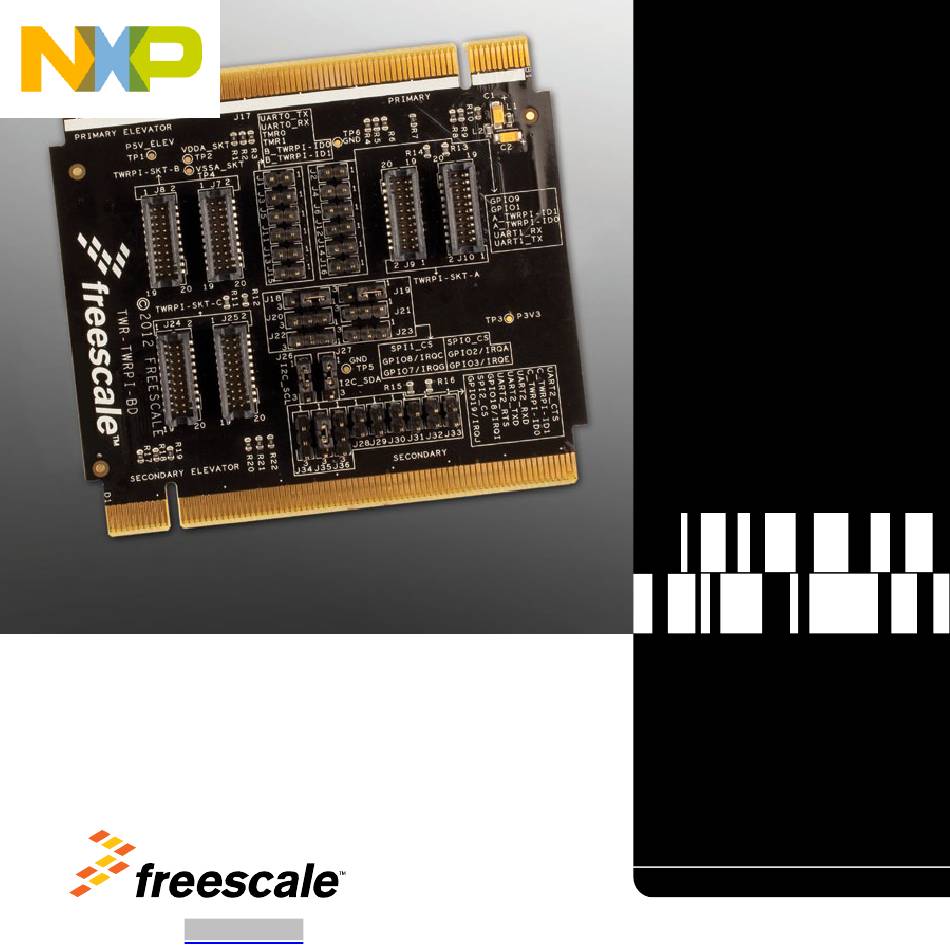

  • Page 1 Quick Start Guide TWR-TWRPI-BD Tower Plug-In Carrier Module TOWER SYSTEM Arrow.com. Downloaded from...
  • Page 2 Quick Start Guide Get to Know the TWR-TWRPI-BD Primary TWRPI B Isolation/ Connector Selection Jumpers TWRPI A Socket TWRPI B Socket TWRPI A Isolation/ TWRPI C Selection Socket Jumpers C Selection Jumpers TWRPI C Isolation/ Secondary Selection Connector Jumpers TWR-TWRPI-BD Freescale Tower System The TWR-TWRPI-BD module is part of the Freescale Tower System, a modular development platform that enables rapid prototyping and tool...

  • Page 3: Configure Jumpers

    Quick Start Guide Step-by-Step Installation Instructions In this quick start guide you will learn to set up the TWR-TWRPI-BD module and run the included demostration software. For more detailed information, review the user manual at freescale.com/Tower Identify Ensure TWRPIs Compatibility Identify the desired TWRPIs to be Each interface featured on the utilized with the TWR-TWRPI-BD and TWR-TWRPI-BD is capable of being the respective interfaces required for isolated from the Tower System. To each TWRPI. maintain the best compatibility with additional Tower peripheral module, Configure it is recommended that any unused interfaces be isolated. Jumpers Configure the TWR-TWRPI-BD jumpers to correctly interface with the respective TWRPI. Refer to the jumper table in this document for reference and the user manual for additional details. Be aware that not all controller modules will provide access to all signals available on the TWR-TWRPI-BD. Refer to the respective controller module documentation for details of which signals are available. Arrow.com. Arrow.com. Arrow.com.
  • Page 4 Quick Start Guide TWR-TWRPI-BD Jumper Options The following is a list of all jumper options. The default installed jumper settings are shown in white text within the black boxes. TWRPI Socket A Configuration Jumper Option Setting Description GPIO4/UART Connects J9_Pin19 to primary elevator CTS Isolation signal GPIO9/UART1_CTS (A9) GPIO5/UART Connects J9_Pin20 to primary elevator RTS Isolation signal GPIO1/UART1_RTS (B21) TWRPI-ID1 Connects J10_Pin18 to primary elevator Isolation signal AN1 (A29) TWRPI-ID0 Connects J10_Pin17 to primary elevator Isolation signal AN0 (A30) UART RX/ Connects J9_Pin17 to primary elevator GPIO2 Isolation signal UART1_RX (A43) UART TX/ Connects J9_Pin18 to primary elevator GPIO3 Isolation signal UART1_TX (A44) Arrow.com.
  • Page 5 Quick Start Guide TWRPI Socket B Configuration Jumper Option Setting Description UART TX/GPIO3 Connects J7_Pin18 to primary elevator Isolation signal UART0_TX (A42) UART RX/GPIO2 Connects J7_Pin17 to primary elevator Isolation signal UART0_RX (A41) TMR/GPIO5 Connects J7_Pin20 to primary elevator Isolation signal TMR0 (A34) TMR/GPIO4 Connects J7_Pin19 to primary elevator Isolation signal TMR1 (A33) TWRPI-ID0 Connects J8_Pin17 to primary elevator Isolation signal AN2 (A28) TWRPI-ID1 Connects J8_Pin18 to primary elevator Isolation signal AN3 (A27) SPI CS Connects J7_Pin11 to primary elevator Selection signal SPI1_CS0 (B9) Connects J7_Pin11 to primary elevator signal SPI1_CS1 (B8) GPIO0/IRQ...
  • Page 6 Quick Start Guide C Configuration Jumper Option Setting Description C SCL Connect primary elevator signal I2C0_SCL Selection (A7) to all TWRPI sockets Connect primary elevator signal I2C1_SCL (B50) to all TWRPI sockets C SDA Connect primary elevator signal I2C0_SDA Selection (A8) to all TWRPI sockets Connect primary elevator signal I2C1_SDA (B51) to all TWRPI sockets Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...

  • Page 7: Warranty

    Quick Start Guide Visit freescale.com/Tower for more information on the TWR-TWRPI-BD, including: • Schematics • User manual Support Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. For more information, visit freescale.com/Tower Join the online Tower community at towergeeks.org Freescale and the Freescale logo are trademarks of Freescale Semiconductor, Inc., Reg.
