arcelik BEKO K70520NE Service Manual

arcelik BEKO K70520NE Service Manual

Double door combi no-frost refrigerator
Table of Contents

Advertisement

AG2014 70 CM REFRIGERATORS
20.09.2018 / REV NO: 1
00

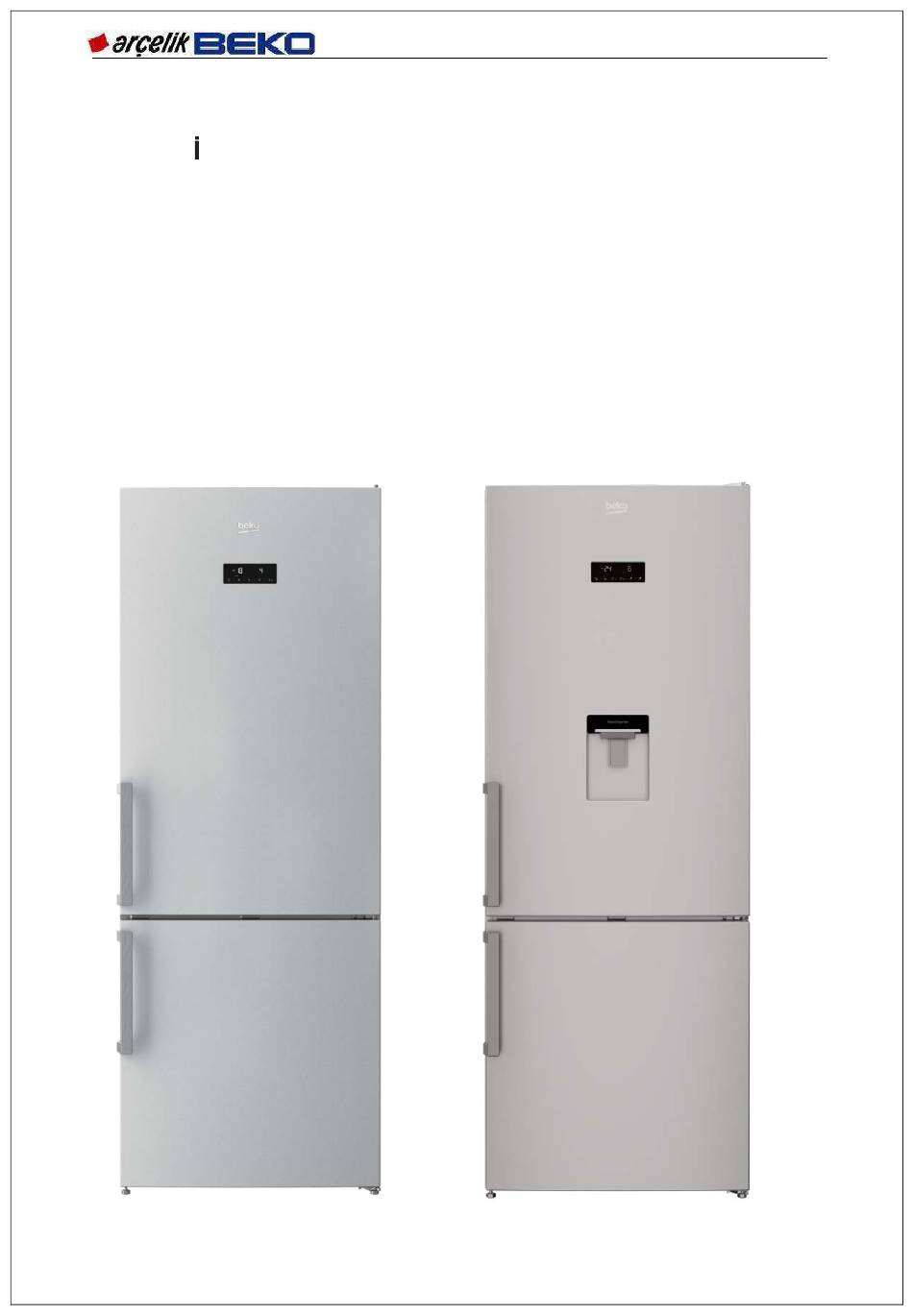

1. COVER
ARÇEL K 2014 70 CM DOUBLE DOOR COMBI NO-FROST
REFRIGERATOR
SERVICE MANUAL
`
K70520NE - K70520NU - K70520NLU - K70530 NE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEKO K70520NE and is the answer not in the manual?

Questions and answers

Shaban Lumi
June 28, 2025

Hello. How to change temperature from F to C°

Stephen C Gleason
April 25, 2025

Does this refrigerator have a water filter and if so what is the model number and where is it located. also the ice maker stop making ice, and ideas why?

Subscribe to Our Youtube Channel

Summary of Contents for arcelik BEKO K70520NE

  • Page 1 AG2014 70 CM REFRIGERATORS 20.09.2018 / REV NO: 1 1. COVER ARÇEL K 2014 70 CM DOUBLE DOOR COMBI NO-FROST REFRIGERATOR SERVICE MANUAL K70520NE - K70520NU - K70520NLU - K70530 NE...
  • Page 2: Revision History

    AG2014 70 CM REFRIGERATORS 20.09.2018 / REV NO: 1 PREPARED BY: Burak AKAY 2. REVISION HISTORY REVISION DATE Initial edition: Arçelik 2014 70 cm Double-Door Combi No-Frost Refrigerator Service Manual 23.03.2015 20/09/2018 E2 hata diyagramı eklendi...
  • Page 3: Table Of Contents

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: COVER ..........................1 REVISION HISTORY ..................... 2 GENERAL SAFETY WARNINGS ................6 3.1......................7 WARNING 3.2..............7 OR PRODUCTS W TH WATER D SPENSER 3.3......................7 NTENDED USE 3.4......................
  • Page 4 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: GAS FLOW DøAGRAM AND PARTS ................ 17 9.1............... 18 PERATION OF THE OOLING YSTEM 9.1.1. FF Defrost ......................19 FF Defrost ........................19 9.1.2. Compressor ...................... 19 9.1.3. Quick Freeze ....................20 ELECTRONIC AND CONTROL SYSTEM ............
  • Page 5 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 14.17......................48 PPER INGE 14.18..............49 OWER INGE AND DJUSTABLE 14.19..................49 OMPRESSOR OVER 14.20..................51 VAPORATION ONTAINER 14.21..................51 ERMINAL OVER 14.22....................52 APACITOR 14.23......................
  • Page 6: General Safety Warnings

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 3. GENERAL SAFETY WARNINGS • Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone. • If the product has a failure , it should not be operated unless it is repaired by the authorised service.
  • Page 7: Hca Warning

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: inside the product. 3.1. HCA warning • If the product is equipped with a cooling system containing R600a gas, pay attention not to damage the cooling system and piping during usage and transportation. This gas is flammable.
  • Page 8: Disposing Of The Waste Product

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 3.7. Disposing of the waste product • This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose of the product with normal domestic waste at the end of its service life.
  • Page 9: Product Overview

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: Product Overview The given figure is schematic only and may not be identical with the product. If the relevant parts are not available in the product, it applies to other models.
  • Page 10: Overall Dimensions Of The Product

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 4.1. Overall Dimensions of the Product 4.1.1. K70520 N / NE...
  • Page 11: K70530 N / Ne

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 4.1.2. K70530 N / NE...
  • Page 12: 90° And Maximum Exploded View Of The Product

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 4.2. 90° and Maximum Exploded View of the Product 4.2.1. K70520 N / NE 4.2.2. K70530 N / NE...
  • Page 13: Installation

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 5. INSTALLATION 5.1. Transportation Instructions 1. This appliance should be transported only in upright position. Delivered package should not be damaged during transportation. 2. If the appliance is to be transported in horizontal position, it should only be leaned towards right-hand side when you are facing the front of the appliance.
  • Page 14: Electrical Connection

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: • Do not install the product in places where the temperature falls below 10° C. If two coolers are to be installed side by side, there should be at least 4 cm distance between them. 5.4.
  • Page 15: Water Connection To Ice Machine

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 5.6. Water connection to ice machine The gasket which is shown with “A” pull out and water connect to water inlet which is shown with “B”. The other side of water pipe connect to water main or water carboy. 6.
  • Page 16: Operating The Product

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 8. OPERATING THE PRODUCT 8.1. Inner Display 8.1.1. Sign of Automatic ice machine On / Off Sign shown that auto ice machine is on or off 8.1.2. Sign of Cooler Side When adjust the tempreatuare of cooler side , sign actives. 8.1.3.
  • Page 17: Gas Flow Døagram And Parts

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 8.1.6. Sign of Temperature Set You can set cooler between -24°C/-11.2 F-18°C/ 0.4 F and freezer 8°C/ 46.4...1°C/ 33.8 F . 8.1.7 Sign of Bölme Seçim Dü÷mesi Seçim dü÷mesi so÷utucu ve dondurucu bölmeleri arasında geçiú yapmak için buzdolabı...
  • Page 18: Operation Of The Cooling System

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: &RROLQJ 6\VWHP &RPSRQHQWV :HOGLQJ 3RLQWV &RPSUHVVRU &RPSUHVVRU  +HDWHU 3LSH +HDWHU 3LSH +HDWHU 3LSH  &RQGHQVHU &RQGHQVHU & &RQGHQVHU  'U\HU 'U\HU ' 'U\HU  &DSLOODU\ 3LSH &DSLOODU\ 3LSH &DSLOODU\ 3LSH  )UHH]HU (YDSRUDWRU )UHH]HU (YDSRUDWRU )UHH]HU (YDSRUDWRU  )) (YDSRUDWRU )UHVKIRRG (YDSRUDWRU...
  • Page 19: Ff Defrost

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 9.1.1. FF Defrost FF Defrost Decision: Normal Status Door Closed Alg. 1. Subject to compressor cycle number Every 4 cycles 240 min 1000 min 2. Subject to maximum defined operation time of the compressor 3.
  • Page 20: Quick Freeze

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 9.1.3. Quick Freeze Pushing the 3 and 10 buttons on the &Z &Z display control will activate the quick freeze. Both compartments start being cooled quickly. This function is terminated when the fridge compartment set value is  &...
  • Page 21 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: Compressor: Coolant gas circulation is enabled by the compressor. Electric supply is made via a thermal protection. The auxiliary winding which is activated for a short time during the first start up of the compressor is deactivated by relay.
  • Page 22 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: Cycles per minute 2200 +/- 10% Condenser Fan Motor Type FDQB24AL4 Voltage range 12 V Power (W) 1.5W Direction of Rotation Counter-clockwise (CCW) Cycles per minute 1600 +/- 200 Sensors: Its resistance decreases as the temperature rises. Sensors on the refrigerator body detect the temperature of their surrounding area and transmit this to the electronic control card.
  • Page 23: Electronic Control System

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 0,05086 2,26 0,5086 0,04430 2,37 0,443 0,03870 2,47 0,387 0,03391 2,57 0,3391 0,02931 2,67 0,2931 0,02628 2,77 0,2628 0,02323 2,86 0,2323 0,02059 2,95 0,2059 0,01831 3,05 0,1831 0,01631 3,15 0,1631 FF Air sensor (Fridge Compartment Sensor): It detects the temperature in the fridge compartment and transmits it to the microprocessor.
  • Page 24 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 1. PORT 2. PORT 3. PORT Blue (GND) Blue (GND) Purple (Common Door - VCC) Brown (Phase) Red (FF Illumination)
  • Page 25 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: Red (FF + Pipo Yellow (FF Door Illumination) Open/Closed) Black (Compressor) Green (12 V Led - Blue Blue (GND) light) Blue (GND) Yellow (FRZ-Drain Heater) FF Fan FG Pink (FF Fan) Dark Blue (Sensor FRZ EVA) Red (FF Heater) Green (Sensor FRZ EVA)
  • Page 26: Defrost Heater

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: Power: 10W Resistance: 5290 11.4. Defrost Heater It ensures thawing of ice in the freezer compartment evaporator zone. It runs during defrost. It ensures melting of the ice on the evaporator by activating every 26 hours. It is deactivated when the FRZ evaporator sensor temperature reaches cut-out.
  • Page 27: Productøon Test

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 11.5. Electric Circuit Diagram 12. Production Test...
  • Page 28: Troubleshooting

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13. TROUBLESHOOTING 13.1. Refrigerator is not running...
  • Page 29 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13.2. Condensation in the Fridge Compartment...
  • Page 30 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13.3. Compressor is not running...
  • Page 31: Refrigerator Is Running Frequently Or For A Long Time

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13.4. Refrigerator is running frequently or for a long time.
  • Page 32: Temperatures Are Too Low

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13.5. Temperatures are too low...
  • Page 33: Refrigerator Runs Noisily

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13.6. Refrigerator runs noisily...
  • Page 34: Sounds Coming From The Refrigerator

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13.7. Sounds coming from the refrigerator...
  • Page 35: Moistening On The Inner Walls Of The Refrigerator

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13.8. Moistening on the inner walls of the refrigerator...
  • Page 36: Condensation On The Outside Of The Refrigerator

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13.9. Condensation on the outside of the refrigerator...
  • Page 37: Doors Cannot Be Closed

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13.10. Doors cannot be closed 13.11. Sensor Error If the Power is “ON” in case of a sensor error, none of the components are driven for 15 min. Eva sensor error does not Eva sensor error exists exist crisper runs according to eva’s...
  • Page 38 Fridge E2 Error flashing Evaporator Sensor Error Check the cables connected to control board sensor socket (KN6) pins no. 3 and If the cables are dislocated, place them and operate the Is there any error on the display? Use the multimeter to measure the sensor resistance from the control board KN6 pins no 3 and 4 and check if the measured value is between 5K...
  • Page 39: Attachment/Detachment Processes Of Parts

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 14. ATTACHMENT/DETACHMENT PROCESSES OF PARTS 14.1. Upper Hinge Lid Hinge lid is mounted on the hinge body with tab locks and without any screw. To remove it, screw has to be disconnected by using phillips screwdriver and the cover has to be slightly lifted from bottom. 14.2.
  • Page 40: Changing The Opening Direction Of The Door

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 14.4. Changing the Opening Direction of the Door To change the door opening direction, primarily the hinge lid should be removed with the help of a flat- head screwdriver as step 4.1. Middle hinge is removed to detach the lower door and upper door (See, 4.2).
  • Page 41 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: After removing the lower hinge, lower hinge pin shall also be removed by using a wrench and re- tightened into the hole on the other end. Thus, the same hinge can be used on the other side. After the direction of the lower hinge pin is changed, rear foot at the side where the hinge will be tightened shall be removed and the lower hinge shall again be fitted on the body with the 3 screws.
  • Page 42 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: Middle hinge plugs on the opening side should be removed and these removed plugs are grouped into the housings on the opposite side. Hinge bearing and stopper under the upper door shall be removed by unscrewing the 1 screw. To mount it on the opposite side, 1 piece of 4852560200 Left Hinge Bearing must be provided.
  • Page 43: Board Cover And Electronic Boards

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 14.5. Board Cover and Electronic Boards Board slot is located on the upper sheet iron of the refrigerator. Single fitting screw has to be unscrewed to remove the board cover assembly and the board box cover must be removed. Main board is locked by means of tabs.
  • Page 44: Crisper Sliding Rails

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 14.8. Crisper Sliding Rails Crisper compartment slides on total 2 rails located on the left and right. Rails are fixed on the body through tab snapping and there is screw connection. To remove these rails, crisper have to be taken out.
  • Page 45: Crisper Cover

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 14.10. Crisper Cover Crisper groups used in the fridge compartment are serviced separately as the cover and drawer compartment. To remove the drawer cover from the drawer compartment, follow the below steps respectively;...
  • Page 46: Fridge Compartment Evaporator Cover Group

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: To snap them on again, first the upper part and side tabs are snapped on the drawer body, then the tabs on the lower part are snapped on the drawer body to complete attachment. 14.12.
  • Page 47: Freezer Compartment Evaporator Cover Group

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 14.13. Freezer Compartment Evaporator Cover Group Tabs will be released from the housings on the body when the rating cover on the freezer compartment evaporator cover group is held from both sides and pulled hardly. The 10-socket box cover shall be removed by using a phillips screwdriver to detach the group from the body completely and the FRZ fan socket is removed.
  • Page 48: Thermostat Setting Box

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: All processes should be applied in reverse order for attachment. 14.14. Thermostat Setting Box To detach the thermostat box, thermostat box is pulled outwards with the aid of a thin-tipped screwdriver from the gap in the indicated part of it, thus the thermostat box is released from the body. Socket connection is unfastened to detach it.
  • Page 49: Above-Body Pediment And Above-Body Pediment Connection Sheet Iron

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: To re-attach it, the new group should be mounted by applying appropriate force on the housing in accordance with the tab directions. 14.16. Above-Body Pediment and Above-Body Pediment Connection Sheet Iron Above-body pediment's tab connection shall be released from both sides by applying force using a thin-tipped screwdriver on the evacuations on the upper sheet as shown in the picture.
  • Page 50: Lower Hinge And Adjustable Foot

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 14.18. Lower Hinge and Adjustable Foot To remove the lower hinge, the plug which is connected to the hinge is removed from the adjustable foot primarily by using a thin-tipped screw and the adjustable foot is detached from the hinge. 3 screws connecting the lower hinge to the body are removed to detach the lower hinge.
  • Page 51 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: On the products with icematic, water valve group is reached after the compressor rear cover is removed. The water valve group is consisted of two main sections. While the first section is the area shown in red and which is located on the upper section of the product, the other and lower section is the cabin bottom area shown in orange.
  • Page 52 $*  &0 5()5,*(5$7256   5(9 12 Care must be taken that firstly the heater socket on the inner body must be removed in order to disassemble the connection on the upper part. After removing the socket connection, the group called heater pipe group which is connected with two screws is disassembled through unscrewing.
  • Page 53: Run Capacitor

    AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 14.22. Run Capacitor It is mounted on the rear foot piece by means of snap-in tabs. If it is required to be removed, tabs of the relevant part should be loosened from bottom and the piece should be pulled upwards to release it from the tabs.
  • Page 54 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO:...
  • Page 55 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 13.Service equipment 1. Knife 2. Set with different tips 3. Phillips 4. Torque-tip 5. Cordless gun 6. Flat screwdriver 7. Phillips screwdriver 8. Side cutter 9. Needle nose pliers 10. Socket wrench set...
  • Page 56 AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO: 14. MAINTENANCE AND CLEANING Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals. WARNING: Unplug the product before cleaning it. • Never use gasoline, benzene or similar substances for cleaning purposes. •...
