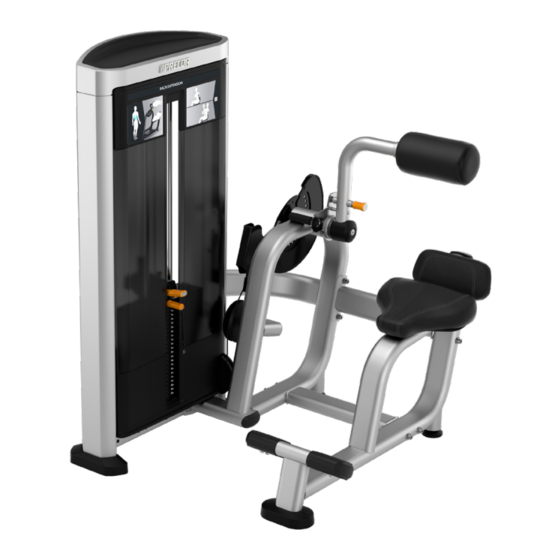

Precor Resolute RSL 313 Assembly Manual
Strength selectorized line back extension
Hide thumbs
Also See for Resolute RSL 313:
- Getting started manual (2 pages) ,
- Assembly manual (17 pages)
Subscribe to Our Youtube Channel
Related Manuals for Precor Resolute RSL 313
Summary of Contents for Precor Resolute RSL 313
- Page 1 ENGLISH Resolute™ Strength Selectorized Line Back Extension RSL 313 Assembly Guide...
-
Page 2: Assembly Requirements
It takes about 90 minutes to assemble this equipment. If this is your first time doing this, allow more time. CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the flooring at all anchoring points. -
Page 3: Parts List
Shroud, rear middle Retaining ring, 38 mm Shroud, front middle (left and right) Retaining ring, 35 mm Top tray Weight plates 10 lb (4.5 kg) Shroud, lower pulley cover Wave washer ©2019 Precor Inc. | Back Extension RSL 313 | Assembly Guide... -
Page 4: Seat Assembly
5/16-inch x 1-inch hole plug Tap seat frame end cap into top of seat frame Tool: Socket wrench, ½-inch with extension seat frame end cap Tool: Mallet ©2019 Precor Inc. | Back Extension RSL 313 | Assembly Guide... -
Page 5: Frame Assembly
11 mm removed in a later step. M12 x 35 mm SHCS Connect main frame to side of weight stack tower washers, domed Tool: Hex wrench, 10 mm ©2019 Precor Inc. | Back Extension RSL 313 | Assembly Guide... - Page 6 55 ft-lb (75 N-m). Socket wrench, 19 mm Do not tighten the M10 screws installed in step 1 at this Torque wrench time. They will be removed temporarily in a later step. ©2019 Precor Inc. | Back Extension RSL 313 | Assembly Guide...
-
Page 7: Moving Parts
Slide roller pad onto pivot arm shaft. retaining ring 38 mm Secure roller pad with retaining ring and snap on roller pad cap. roller pad cap Tool: Retaining ring pliers ©2019 Precor Inc. | Back Extension RSL 313 | Assembly Guide... - Page 8 6 inches (15 cm), enough clearance weight stack spacer, 3-inch for the weights. Flat side of weight stack spacer should face user side. ©2019 Precor Inc. | Back Extension RSL 313 | Assembly Guide...
- Page 9 2½-inch add-on weight add-on weight handle counterweight Place counterweight over front two rods and handle. ©2019 Precor Inc. | Back Extension RSL 313 | Assembly Guide...
- Page 10 Socket wrench, 17 mm washer, rubber, black Place the washers into the top of the cable connector in the add-on weight handle. washer, silver 13.5 mm ID x 35 mm OD ©2019 Precor Inc. | Back Extension RSL 313 | Assembly Guide...
- Page 11 Lubricate the guide rods with a Teflon-based lubricant, such as Tri-Flow Supe- rior Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Back Extension RSL 313 | Assembly Guide...
- Page 12 Recommended bolt torque M10 x 40 mm SHCS Place shroud crown is 25 ft-lb (34 N-m). Tools: Hex wrench, 8 mm Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Back Extension RSL 313 | Assembly Guide...
-
Page 13: Complete The Assembly
Complete the Assembly Precor recommends that the strength equipment be bolted down at all anchoring points. Adjust the round feet on the frame up or down by turning them left or right to help level the equipment. Anchor each oblong foot on the frame to the floor, including the feet on the weight stack tower. Each oblong foot has a rubber cap with slits to allow access the anchor points. - Page 14 RSL Back Extension 313 | Assembly Guide | P/N CW39519-101 ENG © Precor, Incorporated | 30 August 2019...
