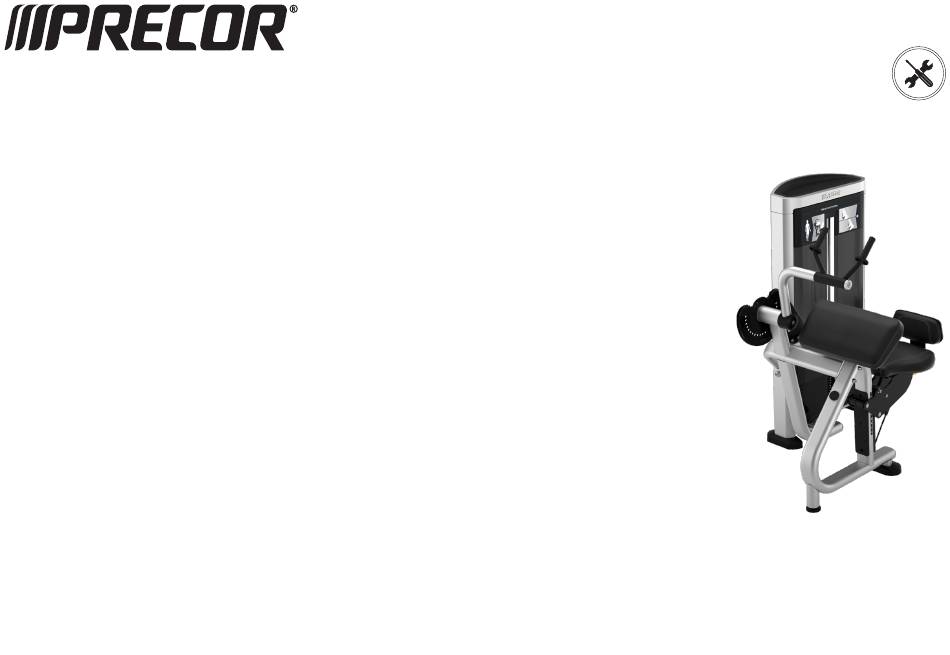

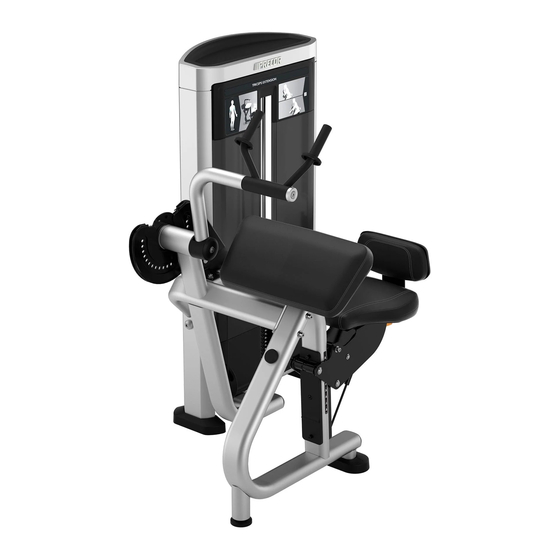

- Page 1 ENGLISH Resolute™ Strength Selectorized Line Triceps Extension RSL 208 Assembly Guide...
-
Page 2: Assembly Requirements
It takes about 90 minutes to assemble this equipment. If this is your first time doing this, allow more time. CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the flooring at all anchoring points. -
Page 3: Parts List
Nylon lock nuts, M10 Shroud, front lower Nylon lock nuts, M12 Shroud, lower pulley cover Hex head screws 5/16-inch x 1-inch Weight plates 10 lbs (4.5 kg) Elbow pad Seat pad ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide... -
Page 4: Frame Assembly
M10 x 125 mm BHCS Insert both guide rod fasteners from user side to align kick plate. Hand tighten only. They will be removed temporarily in a later washers, 11 mm step. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide... - Page 5 55 ft-lb (75 N-m). Socket wrench, 19 mm Torque wrench Do not tighten the M10 screws installed in step 3 at this time. They will be removed temporarily in a later step. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide...
-
Page 6: Moving Parts
. Place the seat over the plate and align the front holes. Secure the seat washers, 9 mm pad through the plate and frame. Tool: Socket wrench ½-inch with extension ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide... -
Page 7: Route The Cable
To route the cable to the upper pulleys of weight stack tower, remove the cable retainers, route the cables, and replace the retainers. Tighten to 50 Open-end wrench, 19 mm ft-lb (67 N-m) of torque. Torque wrench ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide... - Page 8 Place the top 10 lb (4.5 kg) weight plates plate over the weight plates. The plates and top plate should align flush on the top plate assembly user side. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide...
- Page 9 Torque wrench plate. Let the guide rods drop onto the bolts and fully tighten the bolts. Tighten M10 screws to 32 ft-lb (43 N-m) of torque. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide...
- Page 10 Lubricate the guide rods with a Teflon-based lubricant, such as Tri-Flow Supe- rior Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide...
- Page 11 M10 x 40 mm SHCS Place shroud crown on top and secure. Recommended bolt torque is 25 ft-lb (34 N-m). Tools: Hex wrench, 8 mm Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Triceps Extension RSL 208 | Assembly Guide...
-
Page 12: Complete The Assembly
Complete the Assembly Precor recommends that the strength equipment be bolted down at all anchoring points. Adjust the round feet on the frame up or down by turning them left or right to help level the equipment. Anchor each oblong foot on the frame to the floor, including the feet on the weight stack tower. Each oblong foot has a rubber cap with slits to allow access the anchor points.
