OPTIDEW VISION, Panel Mount Fitting
13. Hold the instrument with its bezel tight against the panel. Slide the 2 brackets up
against the rear of the panel and tighten all the screws.
14. Fit the completed panel into the required rack using the M6 x 16 long pan head
screws, M6 plastic washers and M4 cage nuts (x4 of each) supplied.

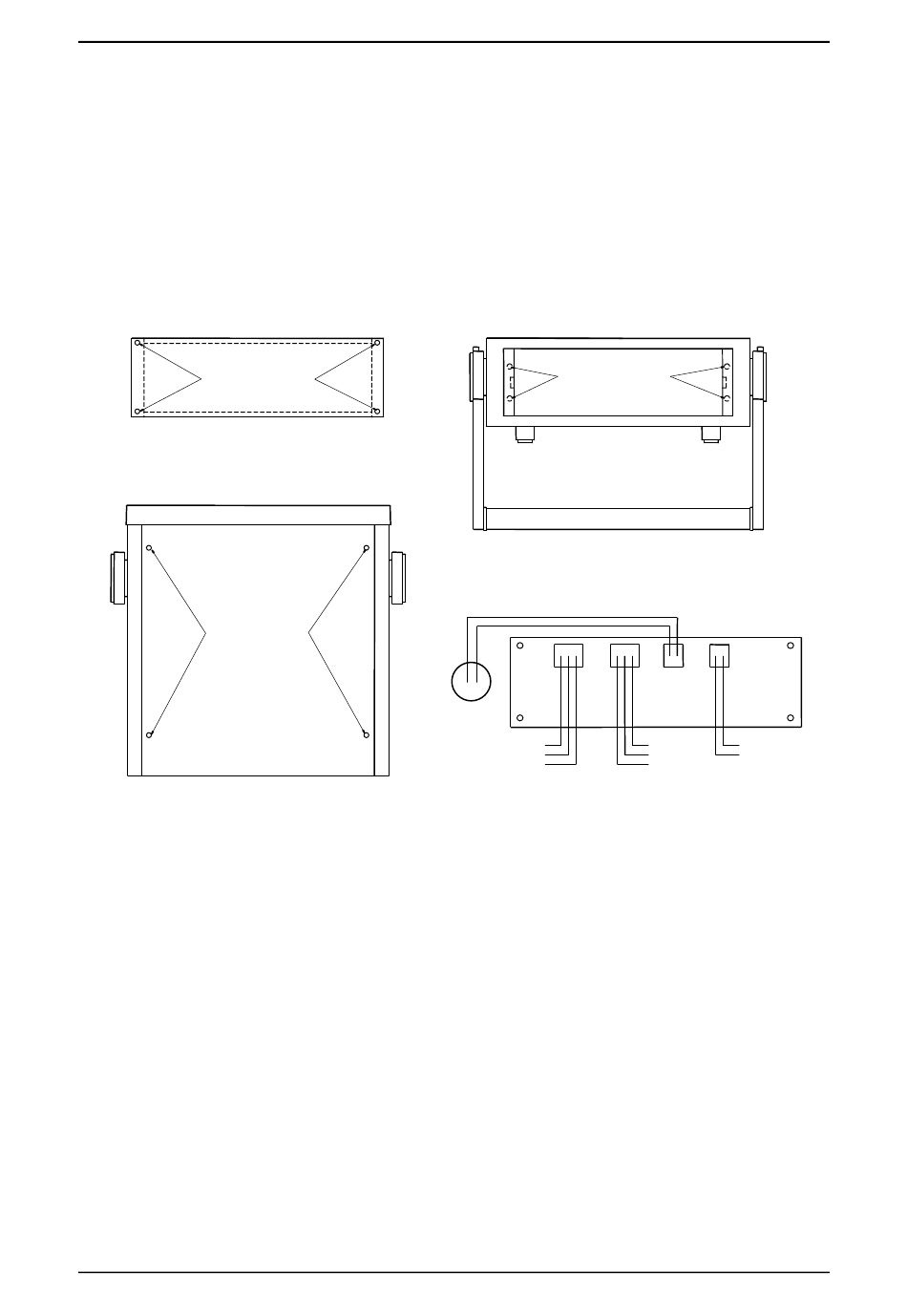

FIG 1
BACK PANEL
REMOVE 4 SCREWS
FIG 3
BASE PANEL
REMOVE 4 SCREWS
Users Guide Supplement No. 1
DISPLAY PCB CONNECTIONS (FRONT VIEW OF PCB)
BLUE BLUE
PL3
GREY
PURPLE
BLACK
TO PL9
www.michell.com
FIG 2
FRONT PANEL
LEVER CLIPS OUT
REMOVE SCREWS
FIG 4
PL2 PL4 PL1
RED
GREY
PURPLE
BLACK
BLACK
TO RS232
Page 3
