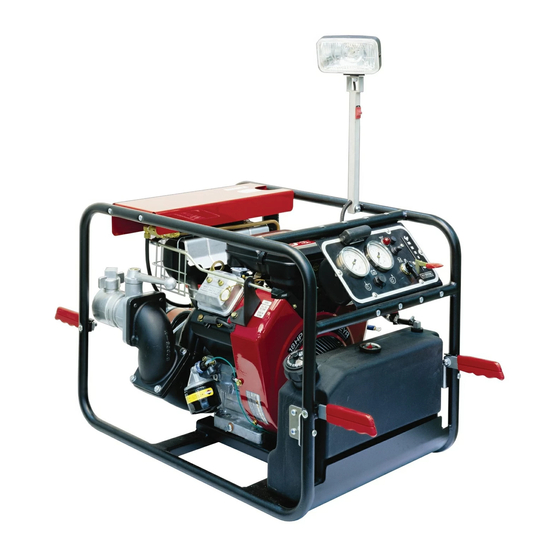

Waterous PB18 SERIES Operation, Maintenance And Overhaul Instructions
Portable pump
Hide thumbs
Also See for PB18 SERIES:
- Operation instructions manual (22 pages) ,
- Operation, maintenance and overhaul instructions (72 pages)
Related Manuals for Waterous PB18 SERIES
Summary of Contents for Waterous PB18 SERIES
- Page 1 WATEROUS COMPANY Form No. F−2058 South St. Paul, Minnesota 55075 January, 1992 OPERATION, MAINTENANCE AND OVERHAUL INSTRUCTIONS PB18 SERIES PORTABLE PUMPS Printed in U.S.A.
- Page 2 Waterous Company F−2058 Page 1 of 6 INTRODUCTION Waterous PB18 series pumps are single stage impeller shaft. centrifugal pumps mounted on Briggs & Strat- These instructions list the steps to follow in ton four cycle gasoline engines. The direct placing the pump unit into operation, main- mounted pumps have the pump body mounted taining and repairing the pump and engine.
- Page 3 MAINTENANCE INSTRUCTIONS for start- Connections between the pump and suction ing a cold or warm engine. The PB18 series and discharge hoses or piping should be made pumping engines are equipped with choke lo- leakproof.Wrench torque should be limited to cated under the flywheel side of the air cleaner.
- Page 4 Loctite Corpora- Drain and refill with one pint SAE 90 weight tion.) REPAIR Repairs to be done during the Waterous or pany Service Parts List supplied with the pump for these parts. Briggs and Stratton warranty period must be...
- Page 5 F−2058 Waterous Company Page 4 of 6 PUMP REPAIR AND OVERHAUL Refer to Service Parts List provided with Por- impeller shaft easily, use a gear puller or two table Pump packet. screw drivers between the impeller and adapt- er. Remove the impeller key. The mechanical...
- Page 6 Waterous Company F−2058 Page 5 of 6 INSPECTION After the pump has been disassembled, check 2. If parts of the seal are to be reused, ex- the following before reassembly: amine mating seal faces for severe scratches, scoring or other damage. If the bellows,spring, Impeller Wear etc., are not in good condition, replace the com-...
- Page 7 F−2058 Waterous Company Page 6 of 6 2. Position the gear case over the shaft sleeve 7. Lubricate the impeller hub with light oil on the engine and replace the four socket head and carefully press the mechanical seal on the cap screws and washers.
