  • Page 1 AC-CXMF62-AUHD User Manual AC-CXMF62-AUHD Page 1...
  • Page 2 AC-CXMF62-AUHD Introduction The ConferX Multi Format 6x2 Matrix Switcher is the ideal solution for any conference room, classroom or huddle space. This 4K switcher is able to display any of the four sources through both the HDBaseT or HDMI output port. Each of these outputs are completely independent of each other allowing to show two sources at the same time.
  • Page 3 AC-CXMF62-AUHD Page 3...
  • Page 4 AC-CXMF62-AUHD Page 4...

  • Page 5: Device Overview

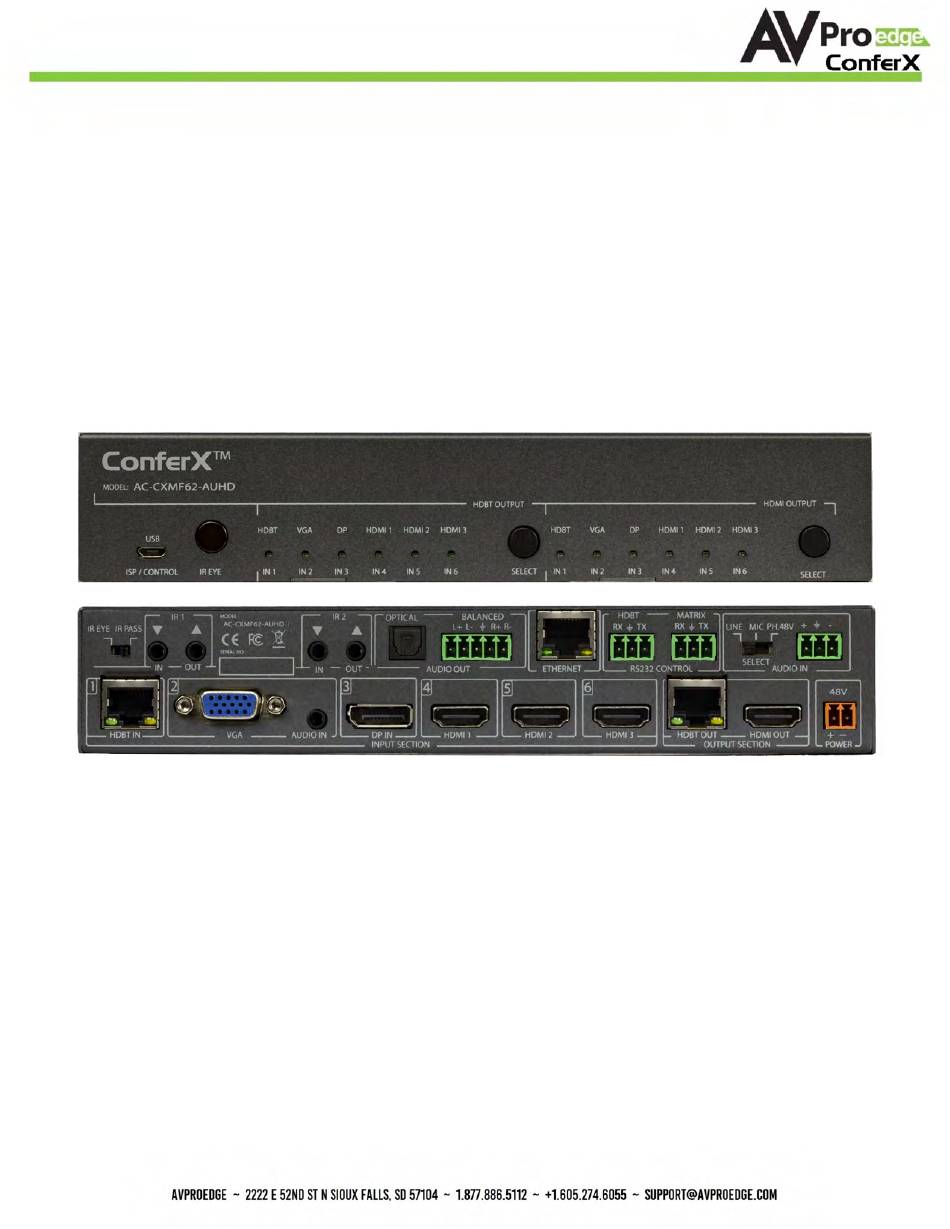

    AC-CXMF62-AUHD Device Overview FRONT BACK Page 5...
  • Page 6 AC-CXMF62-AUHD Basic Installation: The unit has an Auto-Config on boot up and reception of new sources and displays to maximize plug and play installation: 1. Plug in the display(s) or sink devices 2. Plug in the sources 3. Plug in the power supply to the AC-CXMF62-AUHD 4.
  • Page 7 AC-CXMF62-AUHD RS232 Configuration: The AC-CX42-AUHD two distinct RS232 Ports: HDBT - This is for transmitting RS232 signals from the Matrix to the remote HDBaseT Receiver MATRIX - This is for sending signals to the AC-CX42-AUHD Matrix for controlling the device. An example is shown on the next page. The complete command list is on page after that.

  • Page 8: Rs-232 And Tcp/Ip Commands

    AC-CXMF62-AUHD RS-232 and TCP/IP Commands: The Matrix can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine.
  • Page 9 AC-CXMF62-AUHD Page 9...
  • Page 10 AC-CXMF62-AUHD IR Configuration IR Mode Slide Switch: (On Back) This is used to select a preferred IR Mode - There are two modes: • IR-EYE - The IR Input will be configured to operate with an IR Receiver Eye. • IR PASS - The IR Input will be configured to safely operate with a direct connection from a control system using a mono or stereo 3.5mm cable.
  • Page 11 AC-CXMF62-AUHD IR Configuration Cont. IR OUT - The IR OUT port is send IR signals out of an IR Emitter (Pictured below) that originate at the HDBaseT Receiver OR HDBaseT Transmitter IR Sensor: IR Emitter: Page 11...
  • Page 12 AC-CXMF62-AUHD Audio Output Logic and Cable Prep: You can extract audio from toslink or balance 2CH Audio. Audio outputs are an un-decoded output. This means that what goes in, is what goes out. 2CH Balanced Audio Port - Supports 2CH PCM audio only, which is ideal for 2 Channel systems and zoned audio systems.
  • Page 13 AC-CXMF62-AUHD Microphone In and Cable Prep: The Microphone/Line InputThere are 3 settings for the Microphone Input, they are 1. LINE IN - Select this if input will be standard L/R audio. 2. MIC - Select this for non-powered or Dynamic microphones. 3.

  • Page 14: Audio Status

    AC-CXMF62-AUHD Web OS Overview Sense Switch Use this to switch between inputs and outputs from the web interface. HDMI Auto Switch Use this to turn HDMI Auto Sense Switching ON/OFF per output. Video Scaler Mode With the video scaler mode, you can scale the HDBaseT output (OUT1) o 4K-2K - If incoming signal is 4K, it will be downscaled to 1080P or 1900x1200 depending on the input format.

  • Page 15: Mic Volume

    AC-CXMF62-AUHD Audio Binding Use this to select what Output the Audio Follows. Mic Volume Use this change the Mic (INPUT) Volume Level (0~14) Test Pattern Use this to turn the built in Test Pattern Generator ON/OFF for each output. EDID Manage Use this to select the EDID for each INPUT (default is 1080p 2ch) o Select from the Drop-down list, then click "Apply".

  • Page 16: System Setting

    AC-CXMF62-AUHD System Setting IP Settings - Default is "Static IP" with the following • Host IP Address 192.168.1.239 • Subnet Mask 255.255.255.0 • Router IP Address 192.168.1.1 • TCP Port Port Alias Setting Here you can re-label the individual Input/Outputs **Note - There is a 7 Character limit** Re-label, then click "Apply"...
  • Page 17 AC-CXMF62-AUHD Page 17...

  • Page 18: Maintenance

    AC-CXMF62-AUHD Maintenance  To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

  • Page 19: Warranty

    AC-CXMF62-AUHD  Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •...

  • Page 20: Troubleshooting

    AC-CXMF62-AUHD  Troubleshooting • Verify Power - The HDBT and HDMI INPUT Select blue LEDs on the front will always be on when powered. • Verify Connections - Check that all cables are properly connected • Issues with one INPUT/OUTPUT - Swap ports/cables/etc to help narrow down if the issue stays with the input/output/etc Follows the device, then it may be an EDID issue.
  • Page 21 AC-CXMF62-AUHD _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 21...
  • Page 22 AC-CXMF62-AUHD AC-CXMF62-AUHD _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 22 Page 22...
  • Page 23 AC-CXMF62-AUHD AC-CXMF62-AUHD Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! A V P r oE d g e 2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o e d g e .
