AVPro Edge Confer X AC-CX42-AUHD Quick Start Manual

Hide thumbs Also See for Confer X AC-CX42-AUHD:
1
2
3
4
5
6
7

Advertisement

Table of Contents

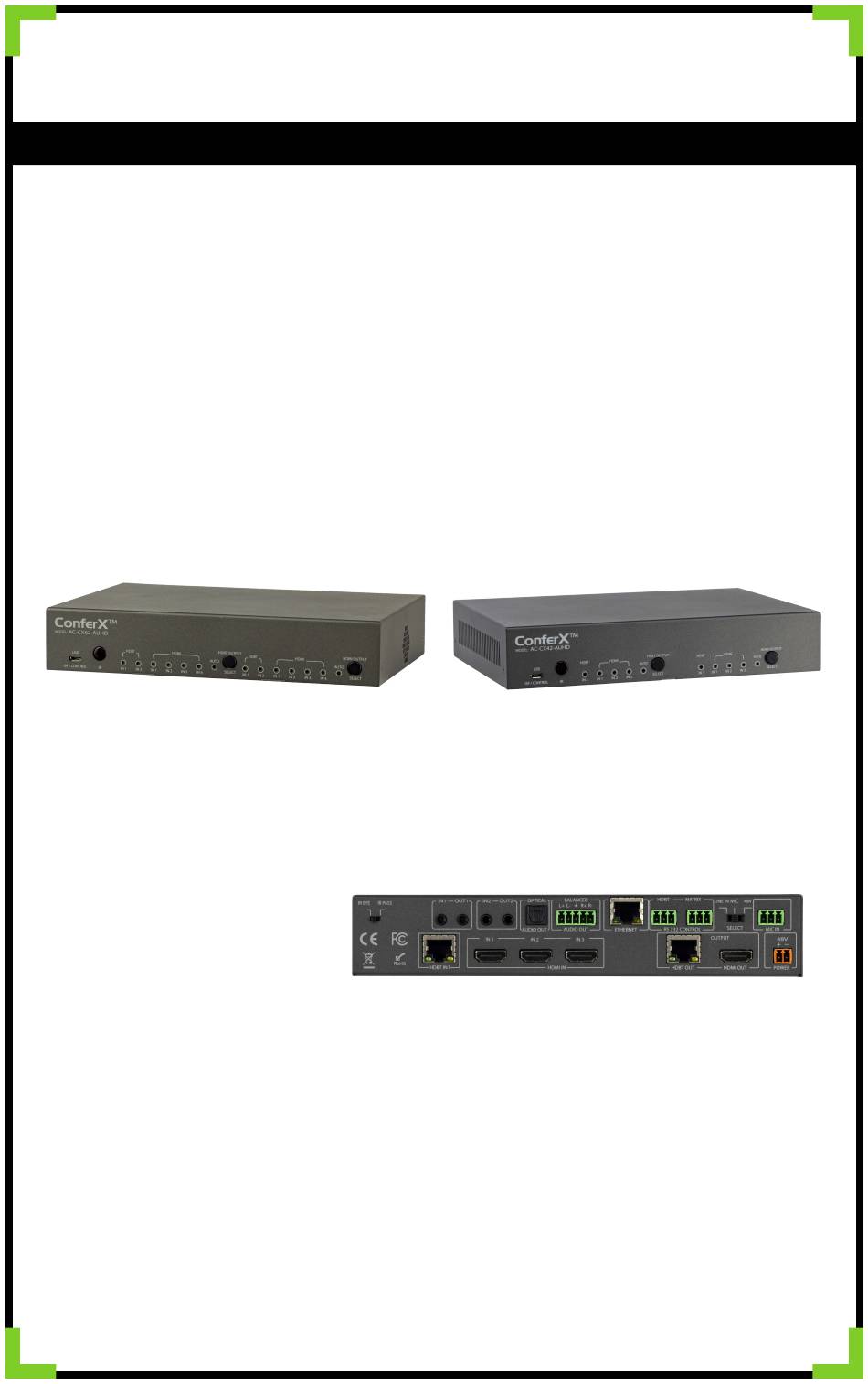

AC-cX42-AUHD & AC-cX62-AUHD
conferx classroom/conference room matrix switchers
Quick Start Guide
The AC-CX42-AUHD/AC-CX62-AUHD is a HDMI/HDBT matrix switcher. Supporting HDMI 2.0(a/b), HDCP 2.2, up
to 4K video resolution, and up to 18 Gbps bandwidth(18Gbps through HDMI ports only). This switch
allows any source to be shown on any of the connected displays. This matrix features a HDBT input(s)
and an HDBT output for video, RS232, and IR extension up to 100M (330Ft). Conference room all-star.
The auto-switching feature makes this unit an ideal, affordable, component for any conference room
system. Ideal for feeding a video signal into a video conferencing codec with very little setup. This is
an ideal solution for digital entertainment centers, HDTV retail, show sites, data centers, schools,
conference and training centers and more!
This quick start guide will be going through:
•
Installation
•
Front/rear Panel Control
•
EDID management
•
IR & RS-232 Control
•
LAN Control
•
troubleshooting
Quick Installation:
1. Connect the HDMI/HDBT input sources (PC, Wall Plate, etc...) to the AC-CX42-AUHD/AC-
CX62-AUHD.
2. Connect the HDMI/HDBT output devices (Display, Distribution Amplifier, Projector,
Receiver) to the AC-CX42-AUHD/AC-CX62-AUHD.
3. Power on the sources.
4. Connect the power supply into the AC-CX42-AUHD/AC-CX62-AUHD.
5. Turn on output devices/displays.
6. Use the front panel controls, supplied IR remote or free LAN (IP: 192.168.001.239) to
control the matrix.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Confer X AC-CX42-AUHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVPro Edge Confer X AC-CX42-AUHD

Summary of Contents for AVPro Edge Confer X AC-CX42-AUHD

  • Page 1 AC-cX42-AUHD & AC-cX62-AUHD conferx classroom/conference room matrix switchers Quick Start Guide The AC-CX42-AUHD/AC-CX62-AUHD is a HDMI/HDBT matrix switcher. Supporting HDMI 2.0(a/b), HDCP 2.2, up to 4K video resolution, and up to 18 Gbps bandwidth(18Gbps through HDMI ports only). This switch allows any source to be shown on any of the connected displays.

  • Page 2: Button Commands

    Front Panel Control and commands: Buttons: 1. “HDBT Output Select” button - Toggles the active source for HDBT OUTPUT 2. “HDMI Output Select” button- Toggles the active source for HDMI Output Button Commands: Button Commands: Enable/Disable “Auto-Switching” - Simply PRESS & HOLD the OUTPUT SELECT button for 4 seconds to toggle “Auto-Switching"...
  • Page 3 Web interface Continued Use this area to route inputs to outputs Video Scaler Mode: This will set the scaler mode for HDBT output, the options are •BP = Bypass - Scaler is disabled (Default) •4K-2K = 1080P - If incoming signal is 4K, it will be downscaled to 1080P or 1900x1200 depending on the input format.
  • Page 4 IR Control: For IR Control there is an IR Window on the front face of the device. RS-232 Control: In order to connect your computer to the swtich by rs-232 you need to make your own cable with one end a phoenix connector and the other end a rs-232 port. Your computer doesn’t have a rs-232 input, get a usb converter (as shown below), and plug the usb end into any computer EDID Management: The BEST/EASIEST WAY to setup EDID’s is to use the web interface.

  • Page 5: Back Panel

    The EDID options are: 17. 1080P_6CH_HDR 1. 1080P_2CH 18. 1080P_8CH_HDR 2. 1080P_6CH 19. 1080P_3D_2CH_HDR 3. 1080P_8CH 20. 1080P_3D_6CH_HDR 4. 1080P_3D_2CH 21. 1080P_3D_8CH_HDR 5. 1080P_3D_6CH 22. 4K30HZ_3D_2CH_HDR 6. 1080P_3D_8CH 23. 4K30HZ_3D_6CH_HDR 7. 4K30HZ_3D_2CH 24. 4K30HZ_3D_8CH_HDR 8. 4K30HZ_3D_6CH 25. 4K60HzY420_3D_2CH_HDR 9. 4K30HZ_3D_8CH 26.

  • Page 6: Troubleshooting

    Troubleshooting (we recommend every integrator has a fox and hound testing and trouble- shooting kit to ensure quality hdmi connection) Verify Power - The LEDs on the front of the matrix should be lit up when power is applied. Check power supply connections to device and power Verify Connections - Check all cables are properly connected Issues with one INPUT/OUTPUT- Swap ports to see if the issue stays with the port or with the device...
  • Page 7 Have a question or need assistance? Don’t hesitate to contact us! SUPPORT: +1 605-274-6055 USA TOLL FREE: 877-886-5112 EMAIL: support@avproedge.com...
