AVPro Edge AC-CXMF62-AUHD Quick Start Manual

6 input, 2 output multi-format classroom/conference room matrix switcher
Hide thumbs Also See for AC-CXMF62-AUHD:
1
2
3
4
5
6

Advertisement

Table of Contents

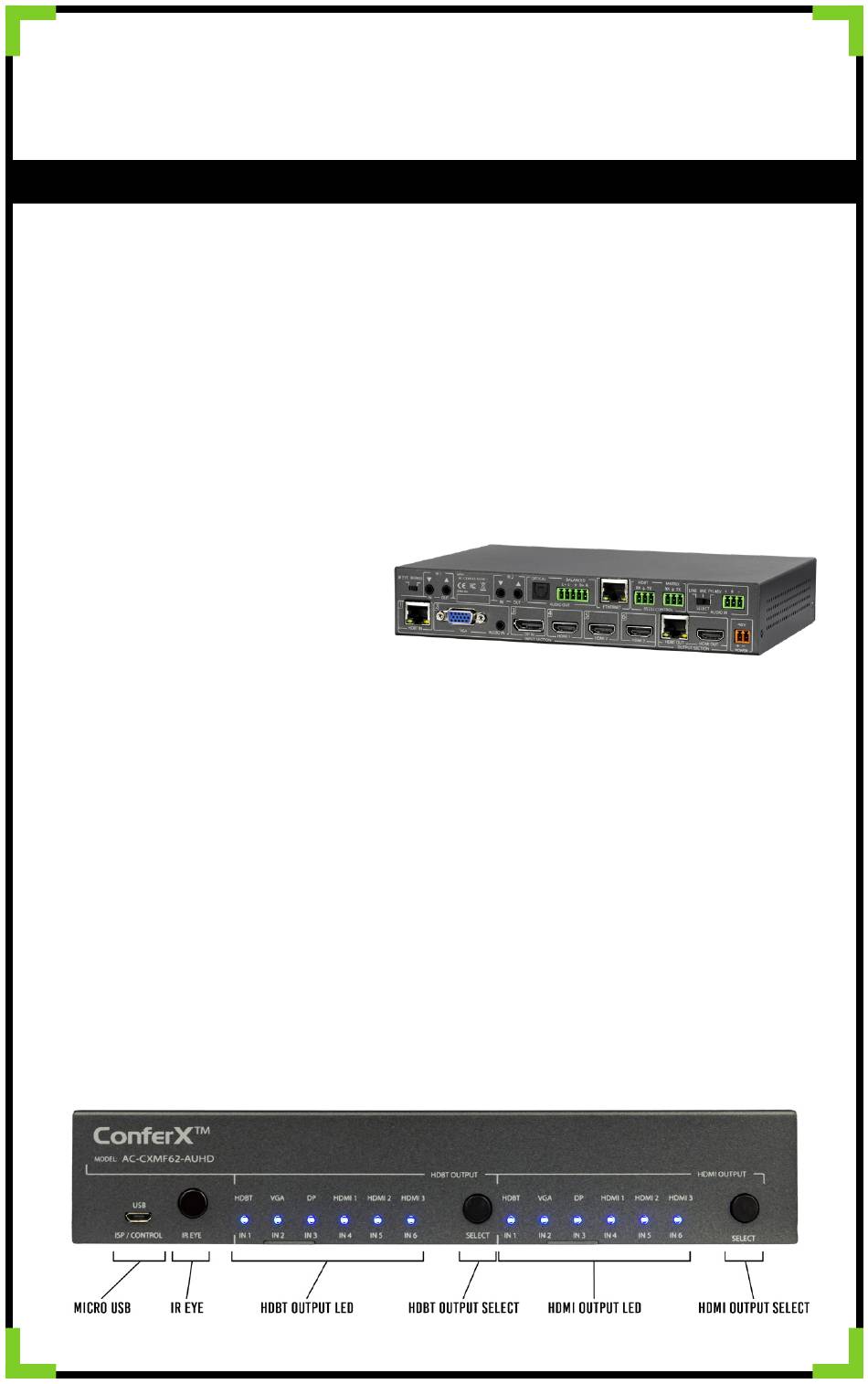

AC-cxmf62-auhd
6 input, 2 output Multi-Format Classroom/Conference Room Matrix switcher
Quick Start Guide
The AC-CXMF62-AUHD is the ultimate switcher for connecting a variety of sources. HDBaseT, VGA, DisplayPort 1.2, and
HDMI allows for integration in almost any room where meetings take place. Simplifying class and conference rooms
farther with independent HDMI and HDBaseT output ports, allowing for distribution of video to a local monitor as
well as a presentation projector or display up to 100 meters away.
This quick start guide will be going through:
• INSTALLATION
• FRONT/REAR PANEL CONTROL
• EDID MANAGEMENT
• IR & RS-232 CONTROL
• LAN CONTROL
• TROUBLESHOOTING
Quick Installation:
1. Connect the HDMI/HDBT/VGA/DP1.2 input sources (PC, Wall Plate, etc...) to the AC-CXMFX62-AUHD.
2. Connect the HDMI/HDBT output devices (Display, Distribution Amplifier, Projector, Receiver) to the AC-
CXMFX62-AUHD.
3. Power on the sources.
4. Connect the power supply into the AC-CXMFX62-AUHD.
5. Turn on output devices/displays.
6. Use the front panel controls, supplied IR remote or free LAN (IP: 192.168.001.239) to control the matrix
Front Panel Control and commands:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-CXMF62-AUHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVPro Edge AC-CXMF62-AUHD

Summary of Contents for AVPro Edge AC-CXMF62-AUHD

  • Page 1 6 input, 2 output Multi-Format Classroom/Conference Room Matrix switcher Quick Start Guide The AC-CXMF62-AUHD is the ultimate switcher for connecting a variety of sources. HDBaseT, VGA, DisplayPort 1.2, and HDMI allows for integration in almost any room where meetings take place. Simplifying class and conference rooms farther with independent HDMI and HDBaseT output ports, allowing for distribution of video to a local monitor as well as a presentation projector or display up to 100 meters away.

  • Page 2: Controlling The Matrix

    buttons • HDBT Output Select button - Toggles the active source for HDBT OUTPUT • HDMI Output Select button - Toggles the active source for HDMI Output buttoN Commands • Enable/Disable “Auto-Switching” - Simply PRESS & HOLD the OUTPUT SELECT button for 4 seconds to toggle “Auto-Switching”...

  • Page 3: Test Pattern

    Video Scaler Mode • This will set the scaler mode for OUTPUT 1, the options are: • BP = Bypass - Scaler is disabled (Default) • 4K-2K = 1080P - If incoming signal is 4K, it will be downscaled to 1080P or 1900x1200 depending on the input format.
  • Page 4 EDID Management: The BEST/EASIEST WAY to setup EDID’s is to use the web interface. However, we know that may not always be an option. Since there is no screen on the device, you will have to rely on the LED’s to complete EDID setup. Please follow the steps below (This might take one or two tries to get used too.) 1.

  • Page 5: Troubleshooting

    IR Ports Used for IR extension over HDBT. Choose IR Input type using the dipswitch on the back of the unit. • IR Eye = IR from remote/emitter • IR Pass = IR direct from control system • IR can be routed. By default, the switch comes in: •...
