AVPro Edge ConferX AC-CX84-AUHD Quick Start Manual

8 input, 4 output hdmi classroom/conference room matrix switcher
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

8 input, 4 output HDMI Classroom/Conference Room Matrix switcher
Quick Start Guide
The AC-CX84-AUHD is the premiere switch for large conference room solutions solving needs for
source extension, display extension, and 4k distribution. With a mix of HDB
CX84 can easily allow for divisible conference rooms with both local and distant displays up to 100
meters. Allowing for integration even with legacy projectors using the 1080p down scaler on the
HDB
T Outputs.
ase
This quick start guide will be going through:
• Installation
• Front Panel Control
• EDID management
• IR & RS-232 Control
• LAN Control
• troubleshooting
Quick Installation:
1. Connect the HDMI/HDBT input sources (PC, Wall Plate, etc...) to the AC-CX42-AUHD/AC-CX62-AUHD.
2. Connect the HDMI/HDBT output devices (Display, Distribution Amplifier, Projector, Receiver) to
the AC-CX84-AUHD.
3. Power on the sources.
4. Connect the power supply into the AC-CX84-AUHD.
5. Turn on output devices/displays.
6. Use the front panel controls, supplied IR remote or free LAN (IP: 192.168.001.239) to control
the matrix.

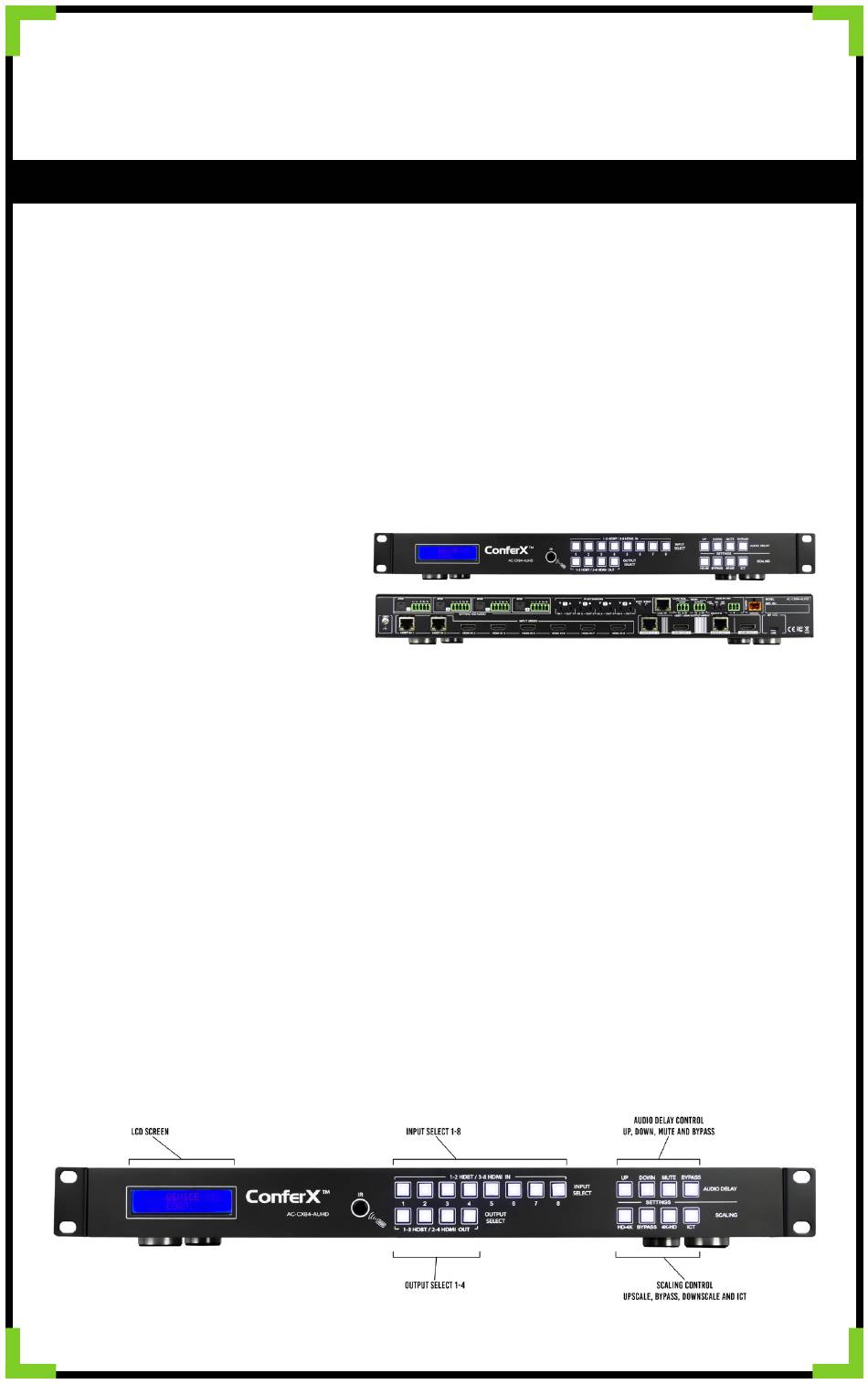

Front Panel Control and commands:
Front Panel:
AC-cx84-auhd
T and HDMI Outputs the
ase

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ConferX AC-CX84-AUHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVPro Edge ConferX AC-CX84-AUHD

Summary of Contents for AVPro Edge ConferX AC-CX84-AUHD

  • Page 1 AC-cx84-auhd 8 input, 4 output HDMI Classroom/Conference Room Matrix switcher Quick Start Guide The AC-CX84-AUHD is the premiere switch for large conference room solutions solving needs for source extension, display extension, and 4k distribution. With a mix of HDB T and HDMI Outputs the CX84 can easily allow for divisible conference rooms with both local and distant displays up to 100 meters.
  • Page 2 Scaling The AC-CX84-AUHD has a scaler built into every HDMI output. In a 2K/4K mixed system you can scale specific outputs up or down to match the connected display. There are 4 scaler modes to choose from: 1. HD-4K (scales 1080p to 2160p) HDMI Only 2.

  • Page 3: Audio Matrix

    Audio Matrix Once the switch is set to Matrix audio mode, audio signals can be routed however you’d like. To control the Audio Matrix from the front panel: 1. Press and hold the BYPASS button for 3 seconds 2. The UP and DOWN buttons will illuminate. Press either one until you locate “Matrix” mode. 3.
  • Page 4 EDID on each input (unless you capture the EDID from the display). To change EDID settings: 1. Press and hold (3 seconds) the button for the INPUT that you would like to change 2. The UP and DOWN buttons will illuminate. Use these to toggle between the different EDID options. These will be shown on the switch’s LCD display.

  • Page 5: Web Interface

    Web Interface: Along with the front panel controls, you can also control the Matrix Switch with a web interface. The advantage of using the web interface is that you have access to more features in the Matrix Switch than you would by only using the front panel controls such as Image Enhancement, access to a Test Pattern Generator, and HDB T compatibility mode.

  • Page 6: Troubleshooting

    Troubleshooting: we recommend every integrator has a fox and hound testing and troubleshooting kit to ensure quality hdmi connection. • Verify Power - The LEDs on the front of the matrix should be lit up when power is • applied. Check power supply connections to device and power •...
