Summary of Contents for AVPro Edge AC-MX88-AUHD-GEN2

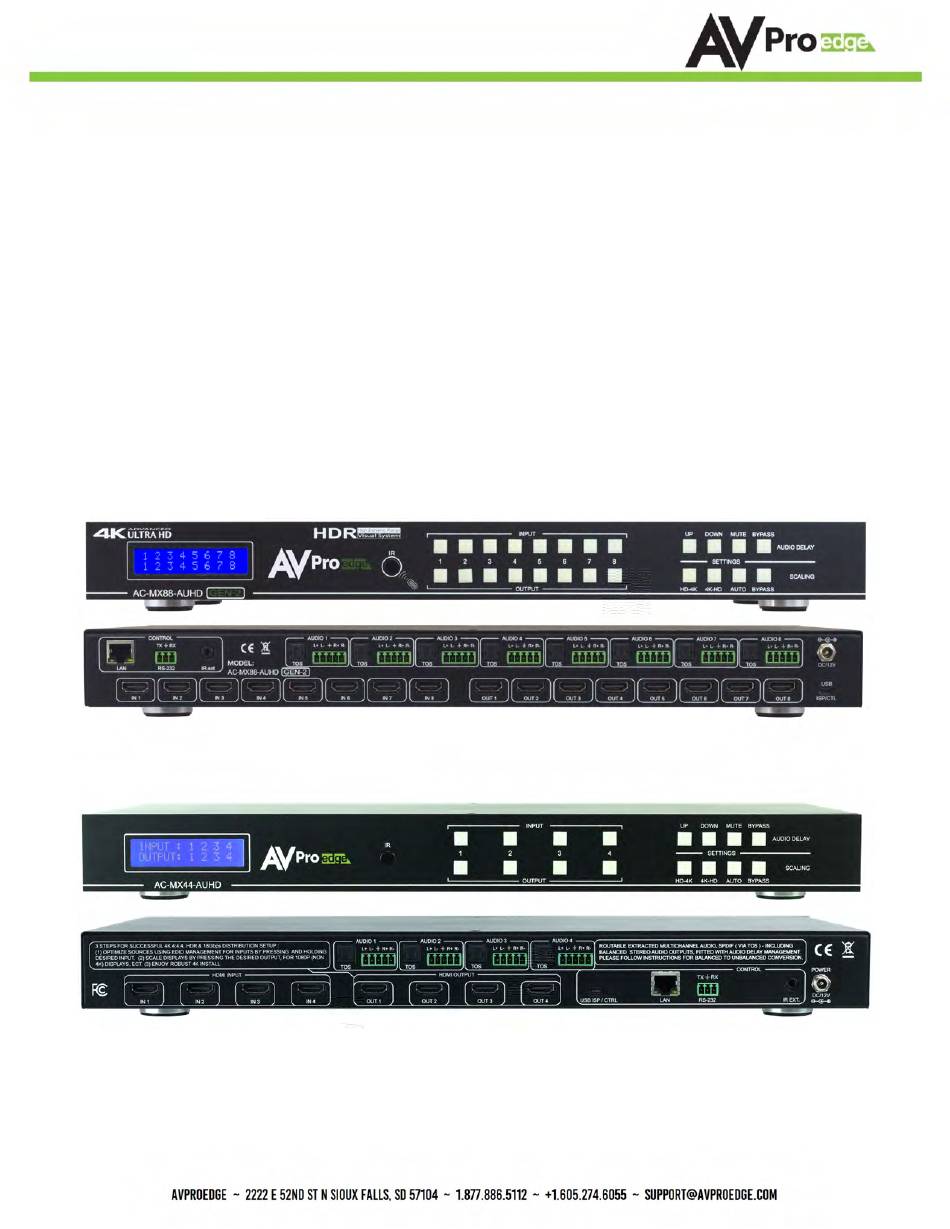

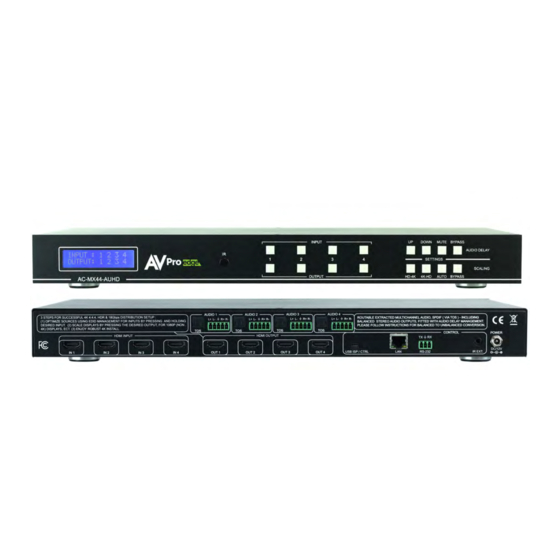

- Page 1 AC-MX88-44-AUHD-GEN2 User Manual AC-MX88-AUHD-GEN2 & AC-MX44-AUHD 18 Gbps True 4K60 4:4:4 8 x8 HDMI Matrix w/ Dual Audio De- Embedding, Scaling & Audio Delay. Page 1...
-
Page 2: Easy To Use
• 12V/4A Locking Power Supply • RS-232 Control Cable Quick Installation: 1. Connect the HDMI input sources (Blu-ray, Set Top Box, etc...) to the AC-MX88-AUHD-GEN2/AC- MX44-AUHD. 2. Connect the HDMI output devices (AVR, Display, Distribution Amplifier, Extender) to the AC- MX88-AUHD-GEN2/AC-MX44-AUHD. - Page 3 AC-MX88-44-AUHD-GEN2 Page 3...
- Page 4 AC-MX88-44-AUHD-GEN2 Page 4...
-
Page 5: Device Overview
AC-MX88-44-AUHD-GEN2 Device Overview: • Definition - Matrix switches provide the ability to route any input to any output or to multiple outputs at any time. Depending on the model, a matrix switch can route HD, UHD or AUHD content in this manner. Additionally, since most venues have both, audio zones and video zones, the requirement to breakout or strip off the audio is often necessary and has become almost a standard feature on most matrix switches. - Page 6 AC-MX88-44-AUHD-GEN2 Page 6...
- Page 7 AC-MX88-44-AUHD-GEN2 Options Parameter How To Switching Control 1. Press the OUTPUT button you want to switch 2. Press the desired INPUT button 1. Press and hold (3 sec) the INPUT button of the source you want to set EDID for See Pages 7, 12, 18, 21, and 24 in the manual for full list of 2.
-
Page 8: Front Panel Control
Front Panel Control Switching: The AC-MX88-AUHD-GEN2/AC-MX44-AUHD can be switched from the front panel by selecting the OUTPUT button first and then selecting the INPUT button: Press the button (1 through 8) on the bottom row that corresponds with the OUTPUT (Display, or Sink Device) you would like to send to a source. - Page 9 2. Toggle selection by pressing the "UP" and "DOWN" buttons, which are now lit up. 3. Once a desired selection is found, quick press the BYPASS button again. Audio Matrix Control: Once in "Matrix" mode for audio, the extracted audio routing on the AC-MX88-AUHD-GEN2/AC- MX44-AUHD can be controlled from the front panel: To Control 1.
-
Page 10: Audio Delay Control
AC-MX88-44-AUHD-GEN2 Audio Delay Control: The AC-MX88/44-AUHD has an Audio Delay feature built-in. Audio Delay is set on the extracted audio OUTPUT (Digital and Analog) of the switch, and each can have seperate settings. The Audio Delay has 4 controls: • UP (Increase Delay) •... -
Page 11: Audio Wiring Diagram
AC-MX88-44-AUHD-GEN2 Audio Output Logic and Cable Prep: You can extract audio from toslink or balance 2CH Audio. Audio outputs are an un-decoded output. This means that what goes in, is what goes out. 2CH Balanced Audio Port - Supports 2CH PCM audio only, which is ideal for 2 Channel systems and zoned audio systems. -
Page 12: Edid Management
AC-MX88-44-AUHD-GEN2 EDID Management: This matrix has 29 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID memories are independent to each input and can be set differently. The user defined EDID can be uploaded using the free PC Control software or RS-232. In addition, you can choose to read the EDID from the desired output and the captured EDID will automatically store and overwrite the EDID in "USER EDID 1"... - Page 13 AC-MX88-44-AUHD-GEN2 Display IP Data: In order to see the current IP settings, press and hold (for 3 seconds) INPUT 3 and INPUT 4 buttons simultaneously. This screen will change every 3 seconds showing additional settings (host, net mask, router IP). NOTE: This screen always starts with the current IP address of the matrix: In order to toggle DHCP on and off, press and hold (for 3 seconds) the INPUT 1 and INPUT 4 buttons simultaneously.
- Page 14 AC-MX88-44-AUHD-GEN2 Web Interface: Switching Use this page to switch between inputs and outputs from the web interface. Page 14...
-
Page 15: Image Enhancement
AC-MX88-44-AUHD-GEN2 Web Interface: Video Setting Video Scaler Modes: With the video scaler mode, you can scale each HDMI output independently • BP = Bypass - Scaler is disabled (Default) • 2K = 4K --> 2K - If incoming signal is 4K, it will be downscaled to 1080P or 1900x1200 depending on the input format. -
Page 16: Audio Status
AC-MX88-44-AUHD-GEN2 Web Interface: Audio Settings EX-Audio Delay: This setting allows the user to change the audio delay to overcome lip-sync issues when using audio separate from HDMI. The user can choose from the above options in milliseconds. Bp = Bypass or No Delay. Delay can be different per audio output port. - Page 17 AC-MX88-44-AUHD-GEN2 Web Interface: Audio Matrix Audio Matrix: This allows the user to route the audio in a matrix fashion for the extracted audio ports. *NOTE: The Audio Matrix Function only works if "MATRIX" is selected on the right (See next explanation). Ex-Audio Matrix Mode: This allows the user to set a binded audio setting or set the extracted audio to Matrix.
- Page 18 AC-MX88-44-AUHD-GEN2 Web Interface: EDID Manage EDID Manage: Using the built-in EDID manager, a multitude of EDID's can be set for each input, and each input can be assigned a different EDID. This should be used to optimize sources or to manage infrastructure. The EDID options are: 17.
-
Page 19: Web Interface: System Settings
AC-MX88-44-AUHD-GEN2 Web Interface: System Settings IP Settings: Port Alias Settings: Set network settings such as: Rename inputs and outputs for easy management. Each custom name is limited to eight (8) characters. • Static IP • Subnet Mask • Router IP •... -
Page 20: Ir Remote Control
AC-MX88-44-AUHD-GEN2 IR Control: For IR Control there is an IR Window on the front face of the device. The supplied IR Extension Cable can also provide a different receiver position. If needed, plug the IR Extension Cable into the IR Extension Socket on the back of the matrix and place the receiver in a more convenient location. -
Page 21: Rs-232 And Tcp/Ip Commands
AC-MX88-44-AUHD-GEN2 RS-232 and TCP/IP Commands: The AC-MX88/44-AUHD can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine. - Page 22 AC-MX88-44-AUHD-GEN2 Page 22...
- Page 23 AC-MX88-44-AUHD-GEN2 Using the Free PC Software: General Matrix Control Page 23...
- Page 24 AC-MX88-44-AUHD-GEN2 Using the Free PC Software: EDID Management Page 24...
- Page 25 AC-MX88-44-AUHD-GEN2 Using the Free PC Software: IP Settings Page 25...
- Page 26 AC-MX88-44-AUHD-GEN2 Using the Free PC Software: Video and Audio Control Scaler Setting -- This setting scales the HDMI output. You can also scale each output independently. • BP = Bypass - Scaler will be disabled (Default). • 2K = 4K --> 2K - If incoming signal is 4K, it will be downscaled to 1080P or 1900x1200 depending on the input format.
- Page 27 AC-MX88-44-AUHD-GEN2 Using the Free PC Software: Video and Audio Control cont. Audio Mx -- Set audio binding (FROM INPUT, FROM OUTPUT, MATRIX) and chose audio route when in MATRIX Mode. PG On/Off -- Enables and disables the internal 1080P test pattern per output. De-embedded audio delay control -- Allows user to set delay for each output, available options are: De-embedded audio mute -- This feature allows the user to mute or...
-
Page 28: Maintenance
AC-MX88-44-AUHD-GEN2 Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 29: Warranty
AC-MX88-44-AUHD-GEN2 Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •... -
Page 30: Troubleshooting
AC-MX88-44-AUHD-GEN2 Troubleshooting • Verify Power - The LCD screen on the front of the matrix should be lit up when power is applied. Check that the power supply is connected to the matrix and powered • Verify Connections - Check that all cables are properly connected •... - Page 31 AC-MX88-44-AUHD-GEN2 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 31...
- Page 32 AC-MX88-44-AUHD-GEN2 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 32...
- Page 33 AC-MX88-44-AUHD-GEN2 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 33...
