AVPro Edge AC-MX1616-AUHD-HDBT User Manual

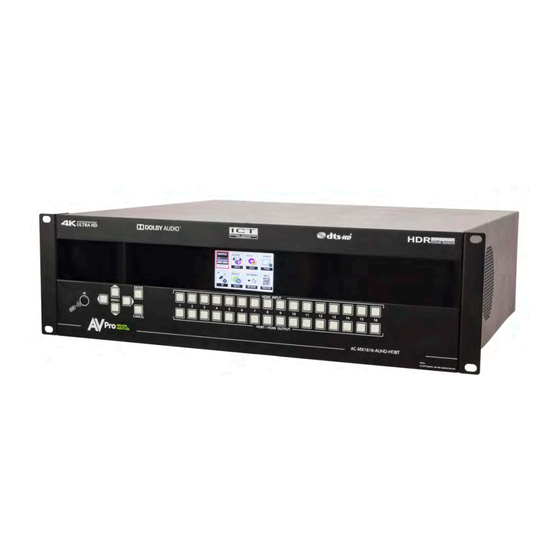

4k60 (4:4:4) 18gbps matrix switcher
Hide thumbs Also See for AC-MX1616-AUHD-HDBT:
Table of Contents

Advertisement

Quick Links

Download this manual

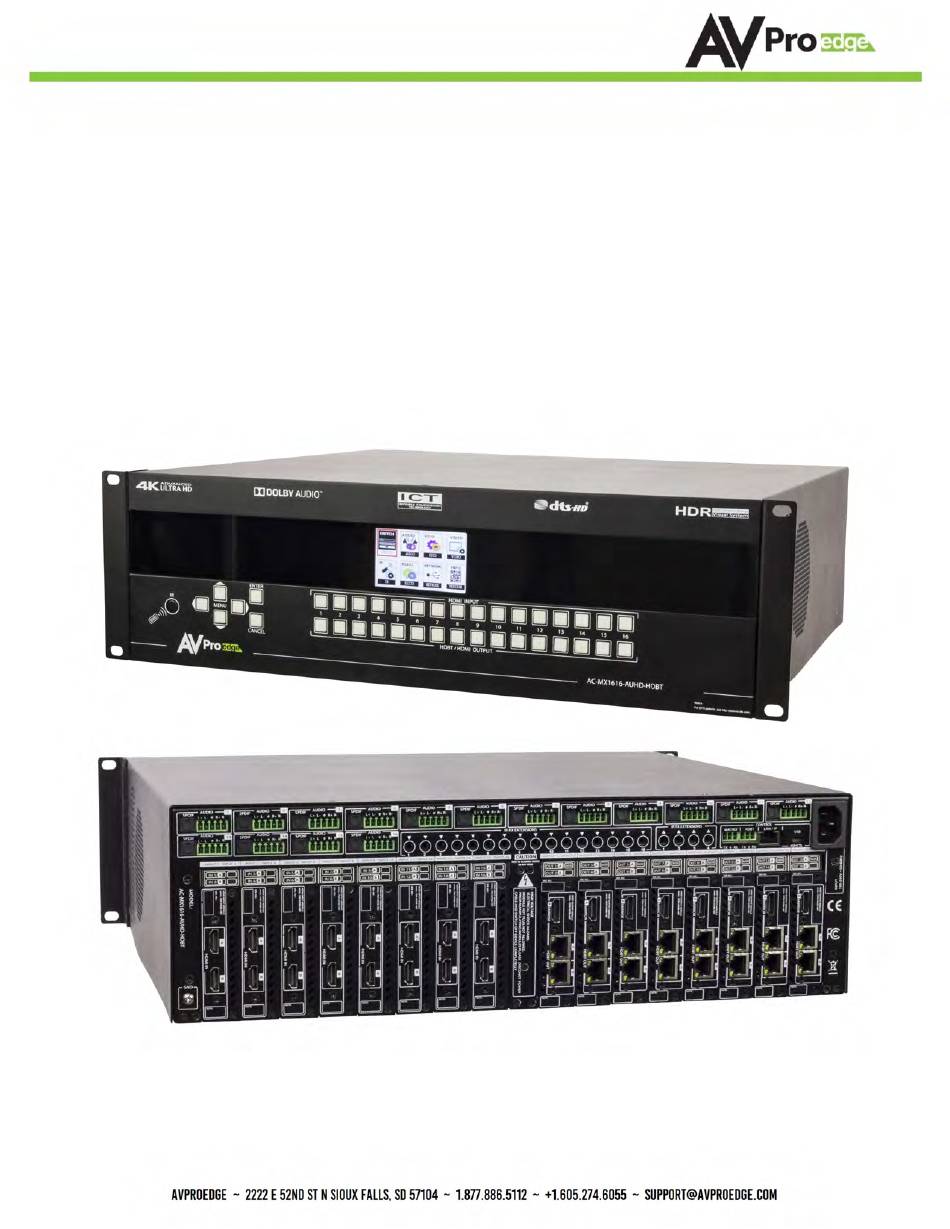

AC-MX1616-AUHD-HDBT
USER MANUAL
AC-MX1616-AUHD-HDBT
AVPro Edge's 4K60 (4:4:4) 18Gbps Matrix
Switcher comes with16 HDMI Inputs, 16 HDBaseT
Outputs and 8 mirrored HDMI Outputs
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-MX1616-AUHD-HDBT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVPro Edge AC-MX1616-AUHD-HDBT

Summary of Contents for AVPro Edge AC-MX1616-AUHD-HDBT

  • Page 1 AC-MX1616-AUHD-HDBT USER MANUAL AC-MX1616-AUHD-HDBT AVPro Edge's 4K60 (4:4:4) 18Gbps Matrix Switcher comes with16 HDMI Inputs, 16 HDBaseT Outputs and 8 mirrored HDMI Outputs Page 1...
  • Page 2 AC-MX1616-AUHD-HDBT The AC-MX1616-AUHD-HDBT is a true HDMI/HDBaseT switch. This unit includes 16 HDMI inputs, 16 HDBaseT outputs, with 8 mirrored HDMI outputs (these mirror the odd numbered HDBaseT Ports 1, 3, 5, etc). This Matrix supports HDMI 2.0(a/b), HDCP 2.2, up to 4K video resolution, and up to 18 Gbps bandwidth.
  • Page 3 AC-MX1616-AUHD-HDBT Page 3...
  • Page 4 AC-MX1616-AUHD-HDBT Page 4...

  • Page 5: Compatible Receivers

    AC-MX1616-AUHD-HDBT Compatible Receivers: AC-EX70-444-RNE: (W/ICT) AC-EX70-UHD-R: • 70M 4K 60 4:4:4 & HDR 40M 4K 60 4:2:0 • • 100M 1080P 70M 1080P • NOTE: You MUST use this receiver to get 18Gbps ICT Video Indicator Troubleshooting Lights on the HDBaseT Port on Matrix and Receivers: LINK - Above RJ45 (HDBT) Port &...
  • Page 6 AC-MX1616-AUHD-HDBT Common Application Diagram & What Is ICT: Page 6...
  • Page 7 Device Feature Overview: ​ T he AC-MX1616-AUHD-HDBT is a 16 input/output Matrix switch built to handle all the latest sources outputting 4K 60 (4:4:4) HDR video signals. What truly makes this switch the choice of integrators around the world is the ability to distribute 18Gbps 4K to some some zones and 1080p to others.

  • Page 8: Basic Setup

    AC-MX1616-AUHD-HDBT Basic Setup: Quick Setup: 1. Connect the HDMI input sources (Blu-ray, Set Top Box, etc...) to the AC-MX1616-AUHD-HDBT 2. Connect the HDMI output devices (AVR, Display, Distribution Amplifier, Extender) to the AC-MX1616- AUHD-HDBT 3. Power on the sources 4. Connect the power supply's into the AC-MX1616-AUHD-HDBT 5.
  • Page 9 AC-MX1616-AUHD-HDBT Navigating the Control Screen: You can use the control screen to setup/control several key features including: Home Screen • Switch ~ Control the switching of Inputs and Outputs • Audio ~ Set the default extracted audio mode to Bind to Input, Bind to Output or Matrix - When in Matrix, audio route can be selected.
  • Page 10 AC-MX1616-AUHD-HDBT Control Screen - Audio: **NOTE: The same settings can be found in the Web Interface under Audio Setting and Audio Matrix** The Audio Settings Menu has Select Three Functions "AUDIO" • Audio Mode: • Audio En/Dis: • Audio Delay: Function 1 - Set the default extracted AUDIO MODE.
  • Page 11 EDID effectively tells the source what the system is capable of handling, devices without robust EDID control just have to hope the source behaves how we want it to. With the AC-MX1616-AUHD-HDBT you control the sources: To Set the EDID, just choose EDID from the "Home Screen" and then select the INPUT you want to set. Finally toggle through the EDIDs until you get the one you want.
  • Page 12 AC-MX1616-AUHD-HDBT Control Screen - Video: **NOTE: The same settings can be found in the Web Interface under Video Setting** The VIDEO Settings Menu has Three Functions • Video Mode • HDMI Stream • HDBT Stream Function 1 - Set the Output Video Mode •...
  • Page 13 AC-MX1616-AUHD-HDBT Control Screen - IR: **NOTE: The same settings can be found in the Web Interface under "IR EX-Setting", and "IR & RS232 Control"** The IR Settings Menu has two Functions • IR TX o Routing o ON/OFF • IR RX...
  • Page 14 AC-MX1616-AUHD-HDBT Control Screen - RS232 Management: 1. Here you can turn RS232 ON/OFF per OUTPUT a. Use the arrow keys to select the OUTPUT b. Press enter c. Use Up/Down arrow keys to change from ON/OFF d. Press Enter again to set Control Screen - Network: 1.
  • Page 15 AC-MX1616-AUHD-HDBT IR Details: HDBaseT Receiver IR Details: Matrix The "IR RX EXTENTION" and "IR TX EXTENTION" ports on the back of the Matrix are designed to be directly connected to a control system. They are not designed to be used with IR Emitters/Receivers.
  • Page 16 AC-MX1616-AUHD-HDBT RS232 Details: Here is a sample cable. in this example you can see how to connect or build and RS232 cable to use to control the Matrix. The pin configuration is shown here as well. You can send serial commands in the 3-Pin port or the Micro USB port...

  • Page 17: Rs-232 And Tcp/Ip Control

    AC-MX1616-AUHD-HDBT RS-232 and TCP/IP Control: The AC-MX1616-AUHD-HDBT can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine.
  • Page 18 AC-MX1616-AUHD-HDBT Command List Continued: Page 18...
  • Page 19 AC-MX1616-AUHD-HDBT Extracted Audio: The extracted audio ports have distinct operating modes. Your desired mode can be set to suite your particular installation. The 3 modes are: From Input ~ This is the default configuration. In this mode the audio port number corresponds to the INPUT signal.

  • Page 20: Audio Wiring Diagram

    AC-MX1616-AUHD-HDBT Extracted Audio cont: Audio Diagrams: Audio Wiring Diagram: Page 20...
  • Page 21 AC-MX1616-AUHD-HDBT Web Interface: Sense Switch Here you can switch INPUTS/OUTPUTS Page 21...
  • Page 22 AC-MX1616-AUHD-HDBT Web Interface: Link Info Here you can see video information for each INPUT. Page 22...
  • Page 23 AC-MX1616-AUHD-HDBT Web Interface: Video Settings 1. HDBT Video Scaler Mode a. Odd number HDBaseT Ports can be either i. 4K-HD, any incoming 4K Signal will be downscaled to 1920x1080P ii. ICT MODE (18G), Our Invisible Compression Technology mode (Default) when paired with 444 HDBaseT Receiver will deliver a 18Gbps signal over HDBaseT 2.
  • Page 24 AC-MX1616-AUHD-HDBT Web Interface: Audio Settings 1. Extracted Audio Delay (MS) a. Each extracted Audio Port has the ability to delay the audio in 90 millisecond intervals. i. 90, 180, 270, 360, 450, 540, and 630 Miliseconds. b. Bp = BYPASS (Default).
  • Page 25 AC-MX1616-AUHD-HDBT Web Interface: Audio Matrix The Audio Setting tab allows to: 1 - Select the Ex-Audio Matrix Mode: • Bind To Output (Default) ~ Extracted audio will switch with the corresponding HDMI Output of the same number • Bind To Input ~ Extracted audio will be fixed to the corresponding HDMI Input of the same number (Audio will never switch) •...
  • Page 26 AC-MX1616-AUHD-HDBT 1. By d ef au l t th e IR RX is r o u t e d t o th e c o r r e s p o n di ng H D Ba s eT O u t p u t Web Interface: IR EX-Settings n um b e r ( ie .
  • Page 27 AC-MX1616-AUHD-HDBT Web Interface: IR & RS232 Control • RS232 Control: o ON (Default) - Allows RS232 signals to route through Matrix to HDBaseT Receiver o OFF - RS232 signals will not route through the Matrix to the corresponding HDBaseT Receivers •...
  • Page 28 AC-MX1616-AUHD-HDBT Web Interface: IR & RS232 Control Using the built-in EDID manager, a multitude of EDID's can be set for each input, and each input can be assigned a different EDID. This should be used to optimize or to manage infrastructure.
  • Page 29 AC-MX1616-AUHD-HDBT Web Interface: System Settings • IP Settings o Host IP Address o Subnet Mask o Router IP Address o TCP Port o DHCP/Static • Port Alias Settings o Rename/Label each INPUT and OUTPUT (limited to Six Characters) Page 29...

  • Page 30: Troubleshooting

    AC-MX1616-AUHD-HDBT  Troubleshooting Verify Power - Pg. 7 • o Ensure the Power cord is properly connected, front panel HDBaseT port LED indicator lights should be active Verify Connections - Check that all cables are properly connected • Not passing video, this may be an EDID issue. Out of the box the default is 1080P 2CH. Try a •...

  • Page 31: Maintenance

    AC-MX1616-AUHD-HDBT  Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

  • Page 32: Warranty

    AC-MX1616-AUHD-HDBT  Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •...
  • Page 33 AC-MX1616-AUHD-HDBT Page 33...
  • Page 34 AC-MX1616-AUHD-HDBT Page 34...
  • Page 35 AC-MX1616-AUHD-HDBT Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 35...
