AVPro Edge AC-MX9XHDL-HDBT User Manual

9x9 seamless hdbaset matrix
Hide thumbs Also See for AC-MX9XHDL-HDBT:

Advertisement

Quick Links

Download this manual
AC-MX9XHDL-HDBT
User Manual
AC-MX9XHDL-HDBT

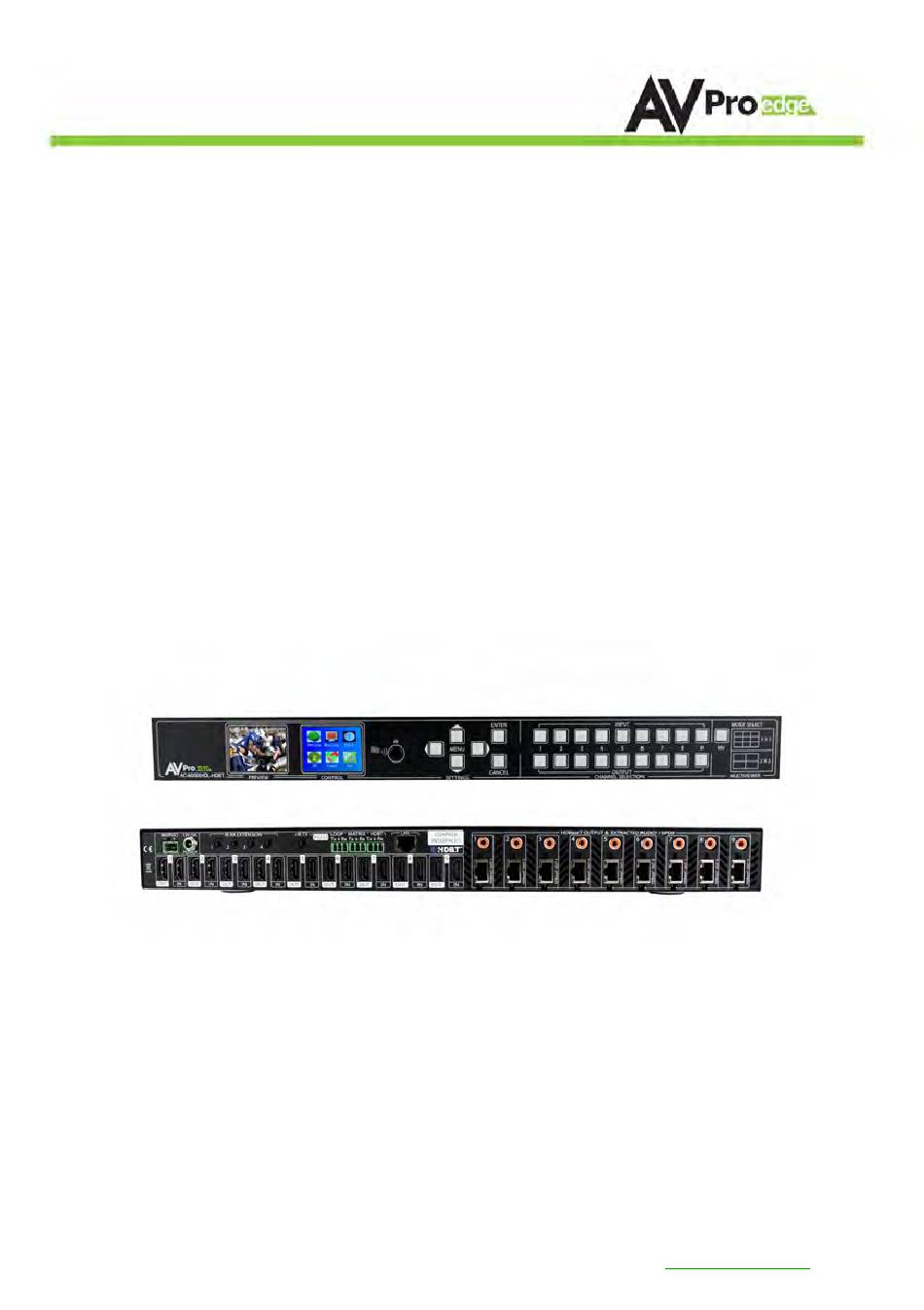

9x9 seamless HDBaseT matrix with quadview,
multiview, instant switching. Expandable to
9xUnlimited Matrix configurations.
pg. 1
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~
support@avproedge.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the AC-MX9XHDL-HDBT and is the answer not in the manual?

Questions and answers

Related Manuals for AVPro Edge AC-MX9XHDL-HDBT

Summary of Contents for AVPro Edge AC-MX9XHDL-HDBT

  • Page 1 AC-MX9XHDL-HDBT User Manual AC-MX9XHDL-HDBT 9x9 seamless HDBaseT matrix with quadview, multiview, instant switching. Expandable to 9xUnlimited Matrix configurations. pg. 1 AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
  • Page 2 AC-MX9XHDL-HDBT Built For Cascading! pg. 2 AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
  • Page 3 AC-MX9XHDL-HDBT Specifications: pg. 3 AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
  • Page 4 AC-MX9XHDL-HDBT AVProEdge Presents a stable alternative to HDMI over IP with Cloud 9. The AC-MX9XHDL-HDBT is a unique piece of technology that allows you to take 9 inputs and distribute them to almost limitless outputs by adding or stacking additional units. Get all of the stuff you love from AV over IP and more with none of the headaches, including Matrixing Quad-View, 9-Source Multiview, Actual Instant Matrix Switching (AIMS), IR &...
  • Page 5 AC-MX9XHDL-HDBT Device Feature Overview: AIMS: "Actual Instant Matrix Switching" allows the Cloud 9 to instantly display any of the sources on any display with no delay from button push to switch. Additionally, AIMS allows you to switch in and out of multiview mode instantly.
  • Page 6 HDBT 3. Power on the sources 4. Connect the power supply's into the AC-MX9XHDL-HDBT (You need to plug in both supply's) 5. Turn on output devices/displays 6. You may now use the front panel controls, supplied IR remote or free PC software to control the switch.
  • Page 7 AC-MX9XHDL-HDBT Navigating the Control Screen: Home Screen You can use the control screen to setup/control several key features including: • Matrix Switch Routing ~ Control switching or view the current routing • Signal Monitor ~ View live video feed from the active sources •...
  • Page 8 EDID effectively tells the source what the system is capable of handling, devices without robust EDID control just have to hope the source behaves how we want it to. With the AC-MX9XHDL-HDBT you control the sources: To Set the EDID, just choose EDID from the "Home Screen"...
  • Page 9 AC-MX9XHDL-HDBT Control Screen - IR Routing (Passthrough to HDBaseT Receivers): IR routing allows you to customize the signal path for IR signals. IR Routing control on the front panel refers to the route from the IR RX Extension ports on the back of the matrix to the remote HDBaseT Receiver IR OUT port.
  • Page 10 AC-MX9XHDL-HDBT Control Screen - IR Routing (Return Channel to IR Tx Port): The IR Return Channel allows you to rout IR Signals from a HDBaseT Receiver back to the Martix for control of the Matrix. In addition IR signals are passed through the IR OUT on the back of the Matrix.
  • Page 11 AC-MX9XHDL-HDBT Control Screen - USART (RS232 Route Setup) & Broadcast Mode Here you can set up the RS232 broadcast route - You can enable or disable remote HDBaseT Rx's ability to receive & transmit RS232 signals. Some key point to remember: 1.
  • Page 12 AC-MX9XHDL-HDBT Control Screen - Network (IP) Setting Here you can setup the Matrix with your preferred network settings. From the front panel you can: • View the current IP Settings and MAC address • Set static Route IP (Default is 192.168.001.001) •...
  • Page 13 AC-MX9XHDL-HDBT IR Details: The IR PIN-OUT's below are consistent for the HDBaseT Receivers and for the Matrix. To plug directly into the "IR RX EXTENTION" port from a control system you will need a cable created as pictured below - We can provide these upon request: pg.
  • Page 14 AC-MX9XHDL-HDBT Using IR When Cascading: When using IR in a cascaded system, you must keep the following in mind: • Each switch has its own IR routes etc...So for example you can route IR from switch "#1" only the the Rx's connected to it.
  • Page 15 AC-MX9XHDL-HDBT IR Control of the Marix: The Matrix can be switched with IR Commands (Remote or other) in several ways: 1. IR Receiver on the front of the matrix 2. From any HDBaseT Receiver (You can select which ones) 3. From the IR Ext ports on the back of the matrix Use the PC Software so set up the "ports"...
  • Page 16 AC-MX9XHDL-HDBT RS232 Details: Here is a sample cable. in this example you can see how to connect or build and RS232 cable to use to control the Cloud 9. The pin configuration is shown here as well. There are three RS232 ports on the Cloud 9, please see the image below for their purpose:...
  • Page 17 AC-MX9XHDL-HDBT RS232 Details: HDBaseT Receiver Pin Out pg. 17 AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
  • Page 18 AC-MX9XHDL-HDBT Device Addresses When Using Serial Communication: NOTE: Only set device address when cascading multiple units together and using RS232 as your control method! You also have to send the device address when doing advanced routing while sending commands by serial (next page) even if it is default "A00".
  • Page 19 AC-MX9XHDL-HDBT How to route RS232 Commands when using serial: The routing command is very straight forward but you have to take care to make sure you format it correctly. The main thing to consider before you begin: 1. You are actually sending 2 commands (route & device command) so depending on what you are using to send the command the format varies slightly - We show some examples below.

  • Page 20: Command Examples

    AC-MX9XHDL-HDBT Command Examples: Using A Terminal Program (RS232): In the following example we are using a program called MYUART Assist. We make this program freely available form www.avproedge.com. You will notice in the example that it is on 2 lines. This is because you have to separate the commands with a return.
  • Page 21 AC-MX9XHDL-HDBT Using TELNET (IP): On Controls Examples Green = Route Command Red = Command to be sent to device This first example is when sending an ASCII Command \x0DA01SET RS PTH OUT1 LEN17 BR4\x0D\x0A\x0DSET OUT4 VS IN5\x0A\x0D\x0D You can also convert to pure HEX and send a command this way:...
  • Page 22 AC-MX9XHDL-HDBT Cascading with RS232 Control: When cascading and using RS232 you have to enable the device address in the following fashion, the example have four Cloud 9's: Device with OUTPUT's 1-9 = A01 Device with OUTPUT's 10-18 = A02 Device with OUTPUT's 19-27 = A03 Device with OUTPUT's 28-36 = A04 To set and device address you can use the PC Control Software or send the command "SET ADDR xx"...
  • Page 23 AC-MX9XHDL-HDBT Cascading with IP Control: With IP you have to have a direct IP connection to each unit, and regard them as individual 9x9 matrixes. So for a 9x81 matrix with IP control, you have to connect ethernet to all 9 matrixes. If you are using a 3rd party control driver, install 9 instances of the drivers, and regard them all as individual 9x9 matrixes.
  • Page 24 AC-MX9XHDL-HDBT Command List & Settings Settings: Baud Rate 57600, Data Bits 8, No Parity, 1 Stop Bit All Commands start by Prefix System Address zz, if [01-99] If it is default (A00), no prefix is necessary =---------------------------------------------------------------------------------------------------------------------------------------= : Help = STA...
  • Page 25 AC-MX9XHDL-HDBT Command List cont: =Multiview Setup Command: = SET BLW z : Set Border Line Width by z {z = [0-15](0=None, 1-15Pixels)} = SET BLC rrr.ggg.bbb : Set Border Line Color by RED/GREEN/BLUE{rrr=[000-255], ggg=[000-255],bbb=[000-255]} = SET MVW MODEx : Set Multiview Mode x{x=[0-1](0=3x3,1=Quad)} = SET QVW VS x.x.x.x...
  • Page 26 AC-MX9XHDL-HDBT Extracted Audio: The extracted audio ports have distinct operating modes. Your desired mode can be set to suite your particular installation. The 3 modes are: From Input ~ This is the default configuration. In this mode the audio port number corresponds to the INPUT signal.
  • Page 27 AC-MX9XHDL-HDBT Extracted Audio cont: Audio Diagrams: pg. 27 AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
  • Page 28 AC-MX9XHDL-HDBT Multiview Setup and Usage: The Multiview display can be matrixed just like a "source". Actually it is easiest to think of the Multiview as your "10th" source. The Multiview function on the Cloud 9 has 2 distinct operating modes, the Cloud 9 is...
  • Page 29 AC-MX9XHDL-HDBT Multiview cont: HDMI Audio When in Multiview: The audio from HDMI can also be switched when in Multiview mode (3x3 or Quad View). You can do this easily from the PC software, driver or using the command here: SET OUTx MAS INy -- x=0-9 (0=ALL OUTPUTS IN MULTIVIEW, 1-9=Desired Output) &...
  • Page 30 AC-MX9XHDL-HDBT Multiview Examples: RS232: IP Control pg. 30 AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...

  • Page 31: Video Wall

    The Cloud 9 has proprietary FPGA technology built in that allows it to do the robust multiviewing (described above). This can be paired with the AVPro Edge video wall receivers, offering a low cost highly roust video walls in these systems. While a video wall is only limited by your own creativity, there are 2 simple ways to...
  • Page 32 AC-MX9XHDL-HDBT Video Wall cont: Using the AC-MX99HDL PC software offers you the ability to do stylized video walls with very little effort. To learn how simple it is to create a video wall like this contact us or download the software from www.avprostore.com.
  • Page 33 AC-MX9XHDL-HDBT PC Control Software - Side Bar: Note: PC Control Software can be used when connected to the "Matrix" port using RS232. Connection Area - Use the drop down to select the COM Port or press "Search Machine" to search your computer for open COM Ports.
  • Page 34 AC-MX9XHDL-HDBT PC Control Software - Video Tab: Note: PC Control Software can be used when connected to the "Matrix" port using RS232. Switching - Simply choose the INPUT radio button you want to see on each output. MV = Multiview Set Multiview Border Color/Width- Use this area to set the multiview border line width (1-15 Pixels) and the color.
  • Page 35 AC-MX9XHDL-HDBT PC Control Software - EDID Tab: Note: PC Control Software can be used when connected to the "Matrix" port using RS232. Set EDID - Choose the EDID you want to use from the drop down and press "Apply to Input x" to set it.
  • Page 36 AC-MX9XHDL-HDBT PC Control Software - IP Config Tab: Note: PC Control Software can be used when connected to the "Matrix" port using RS232. Reset to default Toggle DHCP Set IP Settings Save Settings pg. 36 AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~...
  • Page 37 AC-MX9XHDL-HDBT PC Control Software - Settings Tab: Matrix IR Control - Choose where you can receive and IR Extracted Audio mode- Signal From and have Choose audio routing HDBT IR Rout - Select those signals control configuration on the the IR Port the Rx the Matrix Switch extracted ports.
  • Page 38 AC-MX9XHDL-HDBT PC Control Software - Address Management: Address Table - This is RS232 Command Routing, after you give the addresses, you can make labels in this table for quick recall on the "Side Bar" Tab. THIS TABLE DOES NOT SET ADDRESSES.
  • Page 39 AC-MX9XHDL-HDBT Web Interface: Sense Switch To access the Web Interface, simply type in the IP address of the device. The default IP address 192.168.001.239, if you have setup a different IP or are not sure simply view the "Net" section on the control screen on the front panel.
  • Page 40 AC-MX9XHDL-HDBT Web Interface: Audio Setting The Audio Setting tab allows to to ENABLE or DISABLE the extracted audio ports. ON means that audio will play out of the SPDIF Coax port. OFF means that that port will NOT play audio.
  • Page 41 AC-MX9XHDL-HDBT Web Interface: EDID Manage The EDID Manage tab allows you to set the EDID for each input. To set the EDID: 1. Select the desired EDID form the drop down menu of the input you want. 2. Press Apply Available EDID Options: 1080P 2CH (Default), 1080P 6CH, USER1 (Custom), USER2 (Custom), USER3 (Custom) pg.
  • Page 42 AC-MX9XHDL-HDBT Web Interface: RS232 Config The RS232 Setting tab allows you to ENABLE or DISABLE with HDBASET outputs will get a broadcast RS232 command. NOTE: These ports must be ON if you are using advanced routing. For more on RS232 routing please see the RS232 sections above.
  • Page 43 AC-MX9XHDL-HDBT Web Interface: IR Config The IR Config tab allows you to set up 2 basic IR Routes: 1. Routing IR Inputs on the matrix to the HDBT receivers 2. Which HDBaseT Receivers can send commands back to the IR out on the Matrix For more advanced information of IR routing please see the IR section of the Manual.
  • Page 44 AC-MX9XHDL-HDBT Web Interface: System Config The System Config tab let you achieve two functions. 1. Setting up your network (IP) settings 2. Labeling the Inputs and Outputs for the "Sense Switch" Tab pg. 44 AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~...
  • Page 45 AC-MX9XHDL-HDBT Cascading with IP Control: With IP you have to have a direct IP connection to each unit, and regard them as individual 9x9 matrixes. So for a 9x81 matrix with IP control, you have to install 9 instances of the drivers, and regard them all as individual 9x9 matrixes.

  • Page 46: Maintenance

    Maintenance  To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

  • Page 47: Warranty

    Support  Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •...
  • Page 48 AC-MX9XHDL-HDBT Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 3518 N Casco A venue ~ Sioux F a lls , SD 57104 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 605-274 -6 05 5 pg.
