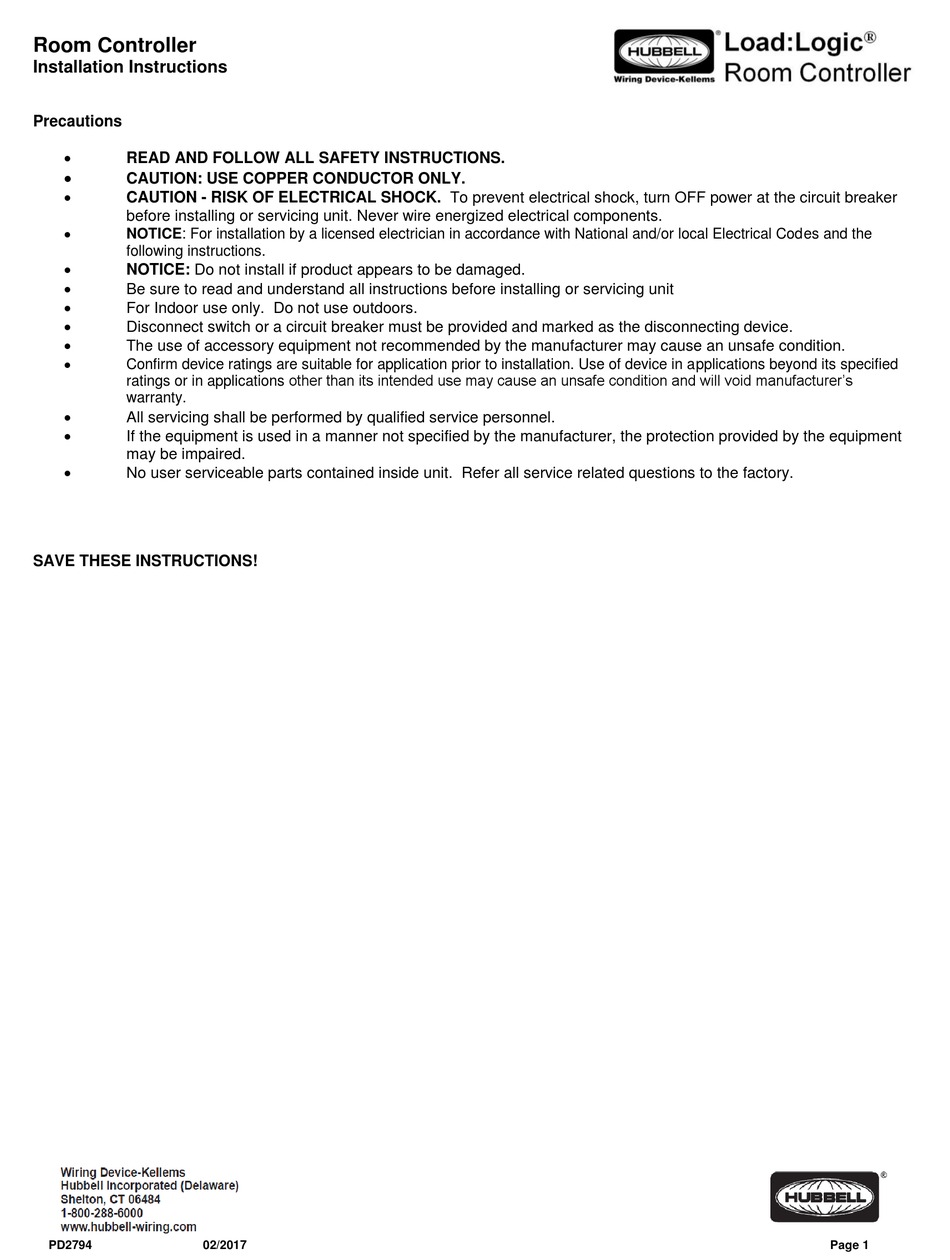

Room Controller
Installation Instructions
Precautions
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
CAUTION: USE COPPER CONDUCTOR ONLY.
CAUTION - RISK OF ELECTRICAL SHOCK. To prevent electrical shock, turn OFF power at the circuit breaker
before installing or servicing unit. Never wire energized electrical components.
NOTICE: For installation by a licensed electrician in accordance with National and/or local Electrical Codes and the
following instructions.
NOTICE: Do not install if product appears to be damaged.
Be sure to read and understand all instructions before installing or servicing unit
For Indoor use only. Do not use outdoors.
Disconnect switch or a circuit breaker must be provided and marked as the disconnecting device.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
Confirm device ratings are suitable for application prior to installation. Use of device in applications beyond its specified
ratings or in applications other than its intended use may cause an unsafe condition and will void manufacturer's
warranty.
All servicing shall be performed by qualified service personnel.
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment
may be impaired.
No user serviceable parts contained inside unit. Refer all service related questions to the factory.
SAVE THESE INSTRUCTIONS!
PD2794
02/2017
Page 1
Advertisement
Related Manuals for Hubbell Load:Logic
Summary of Contents for Hubbell Load:Logic
- Page 1 Room Controller Installation Instructions Precautions READ AND FOLLOW ALL SAFETY INSTRUCTIONS. CAUTION: USE COPPER CONDUCTOR ONLY. CAUTION - RISK OF ELECTRICAL SHOCK. To prevent electrical shock, turn OFF power at the circuit breaker before installing or servicing unit. Never wire energized electrical components. ...
- Page 2 Room Controller Setup App Operation Guide IMPORTANT: This App is designed to assist in the configuration of control parameters for the Hubbell Wiring Device-Kellems ® Load:Logic Room Controller. Once the App has been used to change any setting in a room, manual configuration using the push buttons and LEDs on the Room Controller will be disabled.
- Page 3 Mode: Indicates how the relay will respond to the occupancy sensor. Occupancy mode is automatic ON. Vacancy mode is manual ON. This will automatically be set to Vacancy mode for all relays if at least one switch is connected to the room controller(s).
- Page 4 Switches: Touch to display a list of switches found in the room. Note that each switch display indicates the port number and switch’s address wheel setting (See RC Switch installation instructions for more details). This is useful for distinguishing between switches of the same type in the room. There are a number of different switch types that might be discovered.
- Page 5 C. Scene Switch: Name: Allows the switch to be given a meaningful name. Use the keyboard to enter a name as desired. Preset Setup: The buttons are factory configured to control Preset 1 - Preset 4 from top to bottom respectively. Use the drop down arrow adjacent to a button to choose one of the 16 available presets to be recalled by this button.
- Page 6 ON/OFF Mode: All controlled lighting will turn OFF based on the settings. The controlled lighting will be OFF as long as there is sufficient daylight to maintain the desired minimum task light level. Design Level: The target minimum foot candle level at the task work surface. At Sensor: Indicates the current amount of daylight visible to the daylight sensor.
- Page 7 LED drivers. The Load:Logic Room Controller also features four RJ45 ports ® that provide plug and play support for occupancy, daylight sensors and switches for local control. The Load:Logic Room Controller can operate in a stand-alone mode or connected with other room controllers.
- Page 8 Occupancy Sensors The room controller is compatible with any Hubbell Wiring Device-Kellems low voltage occupancy sensor. An RJ45 wiring adapter (sold separately) is required to make the sensor compatible with the connection to a RJ-45 port in the room controller.
- Page 9 Smart Switches These devices will automatically configure themselves to control the available loads within 5 seconds after being connected to the room controller. For best results, do not press any buttons for 5 seconds after connecting a switch to the room controller. The buttons on the following switch catalog numbers are configured as toggle ON/OFF operation mode by default: RCS1x, RCS2x, RCS2x, RCS4x, and RCS6x.
- Page 10 How to Enter Manual Configuration Mode from the Room Controller To enter manual configuration mode, follow these steps: Simultaneously press and hold the A and B pushbuttons on the room controller until the A and B LED’s start to blink alternately.
- Page 11 Repeat the assignment process above for each load. Switches WITHOUT LED indicators, (RCSOOx, RCSNRLFx, RCSRLx, etc.): Assign a Load Press the ON button or the Raise button to assign control of the load. Press the OFF button or the Lower button to deny control of the load. Tap the recessed configuration button to advance to the next load as necessary.
- Page 12 Repeat the above to set the performance for all loads to be controlled by the photocell. Proceed to auto calibration of the photocell. Hint: The above process can be used to set up multi-zone daylight harvesting in applications where more than one row of lights are to be controlled.
