Revision G
01/18
PSP7400001
Type CRS and Type PRS
Electronic Resettable Sectionalizer
Installation, Operation and Maintenance Manual
NOTE:
Qualified Person
For the purpose of this manual, a qualified person is one who is familiar with the installation,
construction, and operation of the equipment, as well as the hazards involved. In addition, this person
should have the following qualifications:
•
Is trained and authorized to energize, de-energize, clear, ground, and tag circuits and equipment in
accordance with established safety practices.
•
Is trained in the proper care and use of protective equipment such as rubber gloves, hard hats, safety
glasses or face shields, flash clothing, etc., in accordance with established safety practices.
•
Is trained in rendering first aid.
These instructions do not claim to cover all details or variations in equipment, nor to provide for all possible conditions to
be met concerning installation, operation, or maintenance of this equipment. If further information is desired or if particular
problems are encountered which are not sufficiently covered in this guide, contact your Hubbell Power Systems representative.
Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications.

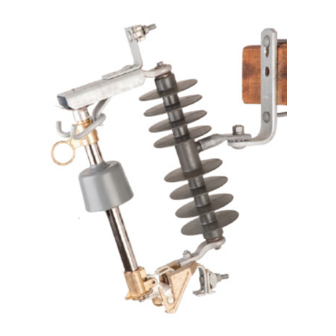

The Chance® Electronic Resettable Sectionalizer (CRS)
and Programmable Resettable Sectionalizer (PRS) work in
conjunction with automatic reclosers or reclosing circuit
breakers to isolate a faulted section of a distribution system.
The sectionalizer is a deadline device, it opens only during
the time that the recloser is open. The CRS and PRS can be
manually reset with an adjustable wrench or in the cutout via
the 'in-air' resettable trunnion.
©2017 Hubbell Incorporated | hpsliterature@hubbell.com | hubbellpowersystems.com
DANGER
!
Hazardous voltage.
Will cause severe personal injury, death, or
property damage.
Only qualified personnel should work on
or around this equipment after becoming
thoroughly familiar with this document and
other publications regarding this equipment.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hubbell Chance CRS
Summary of Contents for Hubbell Chance CRS
- Page 1 If further information is desired or if particular problems are encountered which are not sufficiently covered in this guide, contact your Hubbell Power Systems representative. Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications.
- Page 2 WARNING indicates death, severe personal injury or substantial property damage can result if proper precautions are not taken. NOTICE Indicates notification of installation, operation or maintenance information. ©2017 Hubbell Incorporated | CRS & PRS Installation Instructions...
-
Page 3: Installation
Insert leads into terminals and tighten nuts to approximately 20 lbf (Nm) EXTERNAL-TOOTH LOCKWASHER CARRIAGE BOLT 1/2" NUT LOCKWASHER BUSHING MOUNTING SUPPORT PIN BRACKET Figure 1: SECTIONALIZER MOUNTING ASSEMBLY INSTALLATION ©2017 Hubbell Incorporated | CRS & PRS Installation Instructions... - Page 4 Sectionalizer will not function if trunnion is not latched properly. Follow recommended latching procedure in this manual. Figure 2: Figure 3: Figure 4: RESETTING SECTIONALIZER RESETTING SECTIONALIZER RESETTING SECTIONALIZER START POSITION FINISH POSITION "IN-AIR" (PIN NOT RESET) (PIN RESET) ©2017 Hubbell Incorporated | CRS & PRS Installation Instructions...
- Page 5 Can cause death, serious injury or equipment damage. Locate and repair fault before closing sectionalizer. WARNING Arcing and particles discharge. Can cause personal injury and equipment damage. Use loadbreak tool when opening an energized sectionalizer. ©2017 Hubbell Incorporated | CRS & PRS Installation Instructions...
-
Page 6: Operation Considerations
Check that the pivot of the trunnion is clean and that the trunnion moves freely when resetting the trunnion. The trunnion and/or internal mechanism, if damaged, can be replaced at the factory. If additional information is needed, contact your Hubbell Power Systems Representative or HPS Customer Service at (573) 682-5521 or email at hpscs@hubbell.com. - Page 7 The most current sectionalizer user interface (U.I.) can be obtained by contacting your Hubbell Power Systems representative. If you find your UI, firmware, or drivers require updating, please contact your Hubbell Power Systems representative or email HPSUtilityAutomation@hubbell.com to receive an updated version.
- Page 8 3. Click on the Programmer shortcut (Figure 9) on the desktop to launch the Programmer user interface (U.I.). 4. Once launched, the Hubbell Sectionalizer Programmer software automatically searches for and establishes communications via a USB communication (COM) Port. Please ensure that the proper drivers are installed prior to running the Programmer.
-
Page 9: Settings Tab
(in seconds) in the appropriate fields on the left side of the form. The suggested sectionalizer settings will be displayed on the right side of the screen (See Figure 10B). Figure 10B: Settings Calculator ©2017 Hubbell Incorporated | CRS & PRS Installation Instructions... - Page 10 When operating on a fast curve with lightly loaded lines, please consider setting the sectionalizer to 2 counts less than the upstream recloser if there is insufficient time for the sectionalizer to power up and increment its count. ©2017 Hubbell Incorporated | CRS & PRS Installation Instructions...
-
Page 11: Event Log Tab
Count: An incremental user-programmed count that increments each time a Fault event is detected. % of Cap Voltage: The percent up that the firing capacitor has charged with respect to the full voltage required to fire. ©2017 Hubbell Incorporated | CRS & PRS Installation Instructions... - Page 12 5. The Event Log can then be exported to Microsoft Excel by clicking on “Export to Excel” button. 6. The log can then be cleared by clicking on “Clear Log” button. Figure 11 : Event Log Tab ©2017 Hubbell Incorporated | CRS & PRS Installation Instructions...
-
Page 13: Security Tab
'Load to File'. When first viewing the scratchpad, the user will not be able to see the notes saved on the sectionalizer until the 'Load from Sectionalizer' button is selected. Figure 13 ©2017 Hubbell Incorporated | CRS & PRS Installation Instructions... -
Page 14: Firmware Upgrade Tab
`Save to File' the current settings and then `Load to File' once the firmware has been upgraded. This can be done under the 'Settings Profile' section under the 'Settings' tab. ©2017 Hubbell Incorporated | CRS & PRS Installation Instructions... - Page 15 If additional information is needed, contact your Hubbell Power Systems Representative or HPS Customer Service at (573) 682-5521.
- Page 16 Revision G 01/18 PSP7400001 Hubbell Power Systems, Inc. | hubbellpowersystems.com ©Copyright 2017 Hubbell Incorporated. Because Hubbell has a policy of continuous product improvement, we reserve the right to change design and speci cations without notice. Printed in the U.S.A. | TD_10_161_E...
