Carrier OptiClean FN1SXF Installation Instructions

Square-to-Round Duct Transition

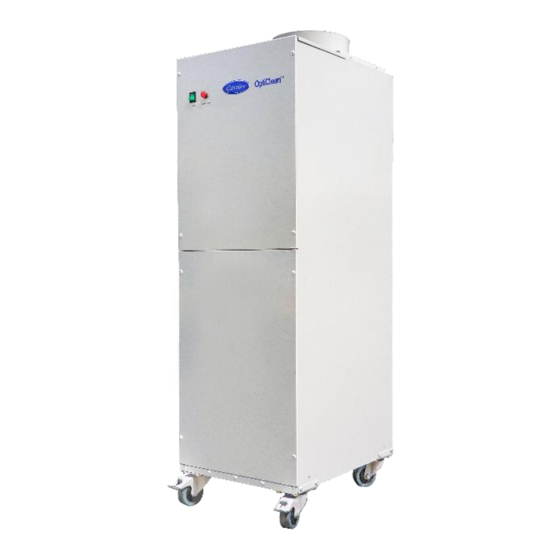

OptiClean™ Negative Air Machine
Model FN1SXF
NOTE: Read the entire instruction manual before starting the
Installation.

SAFETY CONSIDERATIONS

Improper installation, adjustment, alteration, service, maintenance, or use
can cause explosion, fire, electrical shock, or other conditions which may
cause death, personal injury or property damage. Consult a qualified
installer, service agency, or your distributor or branch for information or
assistance. The qualified installer or agency must use factory-authorized
kits or accessories when modifying this product. Refer to the individual
instructions packaged with kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing and work
gloves. Have a fire extinguisher available. Read these instructions
thoroughly and follow all warnings or cautions included in literature and
attached to the unit. Consult local building codes and the current editions
of the National Electrical Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical Code
CSA C22.1.
Recognize safety information. This is the safety-alert symbol When you
see this symbol on the unit and in instruction manuals, be alert to the
potential for personal injury.
Understand the signal words DANGER, WARNING, and CAUTION.
These words are used with the safety-alert symbol. DANGER identifies
the most serious hazards which will result in severe personal injury or
death. WARNING signifies hazards which could result in personal injury
or death. CAUTION is used to identify unsafe practices which may result
in minor personal injury or product and property damage. NOTE is used
to highlight suggestions which will result in enhanced installation,
reliability, or operation.

Introduction

The purpose of the duct transition installation kit is to allow round
ductwork to be used on the OptiClean™ Negative Air Machine. This kit
has a built-in guard, which should be installed prior to powering up the
unit.
Caster assembly installation kit allows easy movement if the unit is in air
scrubber mode and not connected to a duct.
NOTE: This kit will provide the necessary transition panel and hardware
to adapt the unit rectangular opening to a standard 10" round duct
connection. Please see detailed dimensions in
dimensions.
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
Installation Instructions
Fig. 1 for actual collar
WARNING
!
ELECTRICAL OPERATION HAZARD
Failure to follow this warning result in personal injury or death.
Before installing or servicing unit, always turn off all power to unit.
There may be more than 1 disconnect switch.
WARNING
!
MOVING PARTS & SHARP EDGES HAZARD
Failure to follow this warning could result in personal injury.
Do not place objects on top of the discharge plenum.
Keep hands and face away.
Rotating blower wheel can cause serious injury.
Wear gloves when handling.
!
CUT HAZARD
Failure to follow this caution may result in personal injury.
Sheet metal parts may have sharp edges or burrs. Use care and wear
appropriate protective clothing, safety glasses and gloves when
handling parts.
WARNING
!
PORTABLE UNIT AND METAL SHARP EDGES
HAZARD
Failure to follow this Warning could cause personal injury or death.
This unit must be used in a location where unsupervised children are
not allowed to play. The unit is portable, and areas inside and under the
unit could cause personal injury. If the unit is used in a horizontal
configuration, physical barriers must be installed around the unit to
prevent unauthorized access.
WARNING
!
PERSONAL PROTECTION
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
1
CAUTION
