Summary of Contents for Carrier OptiClean 39UV

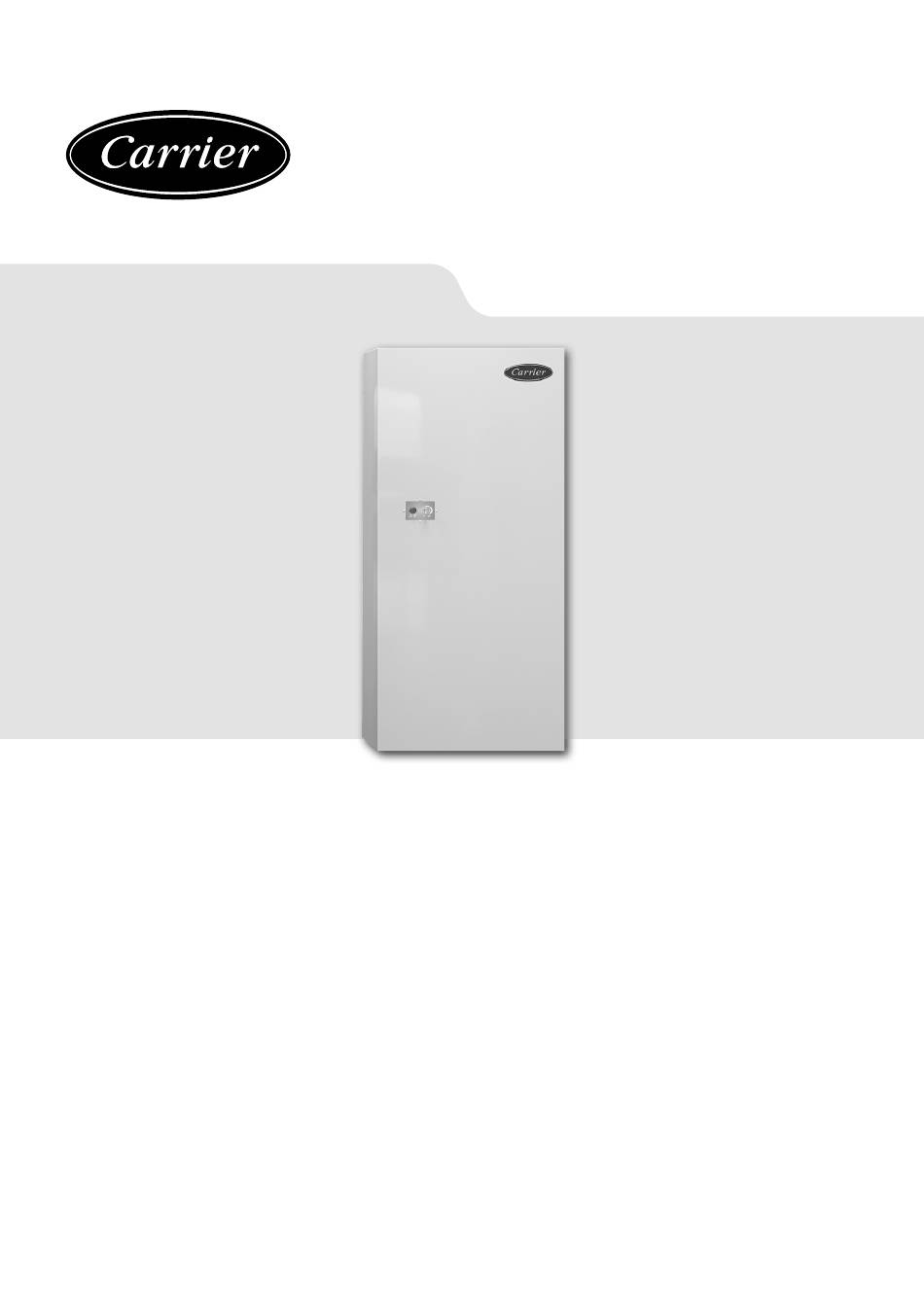

- Page 1 I N S TA L L AT I O N , O P E R AT I O N A N D M A I N T E N A N C E I N S T R U C T I O N S NOTE: Read all instructions and data in this manual before operating.
-
Page 2: Table Of Contents
CONTENTS 1 - A NOTE ABOUT SAFETY ................................3 2 - ABOUT THE NEGATIVE AIR PRESSURE MACHINE/AIR PURIFIER ..................4 3 - UNPACKING YOUR SYSTEM ............................... 5 4 - OPERATING INSTRUCTIONS ..............................6 5 - ROUTINE MAINTENANCE ................................7 5.1 - Daily ......................................7 5.2 - Cleaning .................................... -
Page 3: A Note About Safety
1 - A NOTE ABOUT SAFETY WARNING : Any time you see these symbols and/or in manuals, instructions and on the unit, be aware of the potential for personal PORTABLE UNIT AND METAL SHARP EDGES injury. There are three levels of precaution: HAZARD WARNING identifies the most serious hazards which will or Failure to follow this Warning could cause personal... -
Page 4: About The Negative Air Pressure Machine/Air Purifier
2 - ABOUT THE NEGATIVE AIR PRESSURE MACHINE/AIR PURIFIER OptiClean ™ uses highly efficient filters and a heavy duty, to remove contaminated air from the room. When ducting the unit, the resulting negative air pressure, or “vacuum effect,” helps limit the spread of air-based contaminants into surrounding areas. OptiClean is a ™... -
Page 5: Unpacking Your System
3 - UNPACKING YOUR SYSTEM Carefully remove your unit from its packaging. Inspect for damage. If damage is noted, contact your shipping carrier and file a claim. Assemble the Unit 1. Use a 13 mm nut wrench to remove the 2 mounting lugs under the unit from the transport pallet. -
Page 6: Operating Instructions
4 - OPERATING INSTRUCTIONS IMPORTANT: Always lock the casters during operation. IMPORTANT: Make sure there are no paper or lightweight loose objects near the floor by the unit that could be sucked into the bottom air intake. We recommend that you regularly clean or sweep the floor around the unit to extend the life of the pre-filter. -
Page 7: Routine Maintenance
5 - ROUTINE MAINTENANCE WARNING : 8. Replace the pre-filter (See P.10 for reference). Note the air-flow arrows on the filter and make sure they point up. Replace the Risk of releasing hazardous material if maintenance bottom front door panel. Replace the HEPA filter is not performed. -
Page 8: Fuses Replacement
5 - ROUTINE MAINTENANCE 5.6 - Fuses replacement 1. Move the power switch to the OFF (O) position. 2. Unplug the power cord from the unit, and from the wall outlet. 3. Use a small flat screwdriver to gently push on the 2 small plastic clips on each side of the cable plug. These are fragile parts, take care not to broke them! 4. -
Page 9: Troubleshooting
6 - TROUBLESHOOTING Before you request dealer service, check for these easily solved problems: 1. Check fuses (4 A) on the C14 plug on the unit rear side if the unit does not turn on. 2. Make sure the unit is plugged in to a working electrical outlet. 3. -
Page 10: Specifications
7 - SPECIFICATIONS Table 1 - Electrical Specifications Voltage Hertz 50 / 60 Amps (without UV option) Nominal flow rate: 1000 m 1.4 A / 20mA filter LED Nominal flow rate: 1800 m 2.2 A / 20mA filter LED Nominal flow rate: 2500 m 3.3 A / 20mA filter LED Speed Variable... -
Page 11: Spares References
Nominal flow rate 1000 m 1800 m 2500 m Pre-filter M5 7588972 7588979 HEPA Filter H13 7588973 7588980 HEPA Filter H14 7588974 7588981 Transition plate 7588959 7590632 Diffuser 7588960 7590633 Fuses 7588986 Please contact your local Carrier organization to order. - Page 12 Order No: EN7592065-01, 04.2021 - Supersedes order No: EN7592065-00, 02.2021. Manufacturer: CARRIER SCS - 01120 Montluel, France. Manufacturer reserves the right to change any product specifications without notice. Printed in the European Union..
