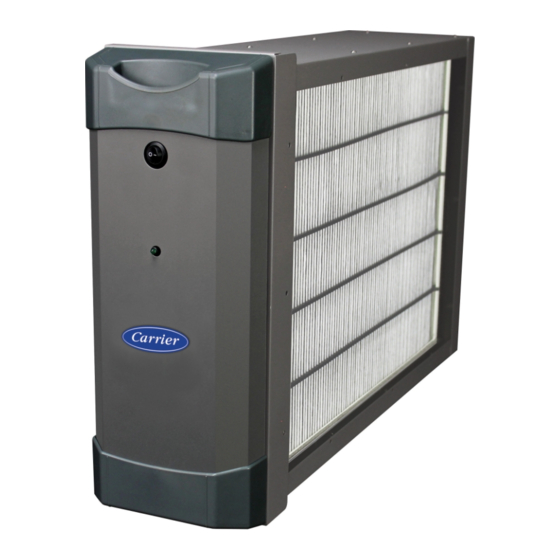

Air Purifier
Models DGAPAXX1625, DGAPAXX2025, DGAPAXX1620, DGAPAXX2020, DGAPAXX2420
Quick Start and Installation Guide
NOTE: A qualified installer or agency is required for proper installation. This guide is
for reference only and it is not intended to replace the product Installation Instructions.
1
RECOMMENDED INSTALLATION PAIRINGS
Furnace
Fan Coil
2

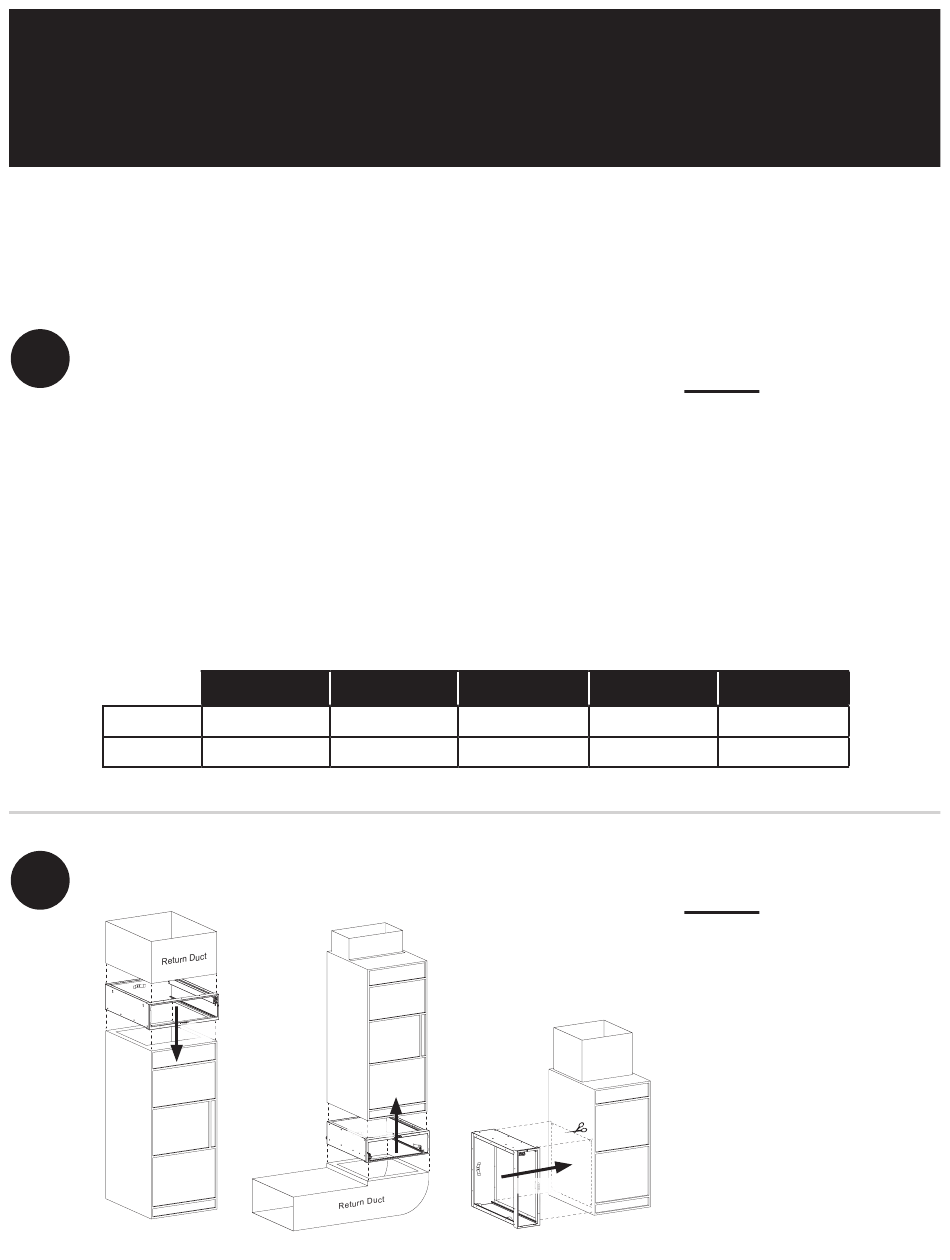

MOUNTING OPTIONS FOR AIR PURIFIERS
Airflow
Top Mount
DGAPAXX1625
DGAPAXX2025
X
X
Airflow
Bottom Mount
DGAPAXX1620
DGAPAXX2020
X
Airflow
Side Mount
The first two models noted below
are designed to be installed
with furnaces, while the last
three models are designed to be
installed with fan coils.
Note: Air Flow Sensor Accessory
Kits are available if your
installation does not match
these recommendations
– see KIT160000,
or KIT161000.
DGAPAXX2420
X
X
There are three main mounting
options for the air purifier product
– top mount, bottom mount, or
side mount. The location of the
Air Purifier should be readily
accessible. Enough room
should be provided for periodic
replacement of the Air Purifier
cartridges.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Carrier DGAPA 1625 Series
Summary of Contents for Carrier DGAPA 1625 Series
- Page 1 Air Purifier Models DGAPAXX1625, DGAPAXX2025, DGAPAXX1620, DGAPAXX2020, DGAPAXX2420 Quick Start and Installation Guide NOTE: A qualified installer or agency is required for proper installation. This guide is for reference only and it is not intended to replace the product Installation Instructions. RECOMMENDED INSTALLATION PAIRINGS The first two models noted below are designed to be installed...
- Page 2 WIRING CONNECTIONS FOR FURNACES Sample Furnace Circuit Board A. Route the power conduit from the purifier to a knockout on the furnace that provides access to the EAC terminals on the furnace control board. Affix the end of the conduit to the furnace using the included conduit fitting.
- Page 3 Reset Procedure When the rapid flashing code occurs on the green light, the controls for the high voltage need to be reset. To reset the controls, the power switch needs to be turned on and off for three cycles. 1. Turn off power by depressing the power switch. 5.
- Page 4 Arc detected Remove foreign object from air purifier and Foreign object inside air purifier ensure purifier is clean and undamaged © 2020 Carrier. All rights reserved. Edition Date: 7/2020 Catalog No.: QSG-DGAPA-01 Replaces: New Manufacturer reserves the right to change, at any time, specifications and designs without obligations.
