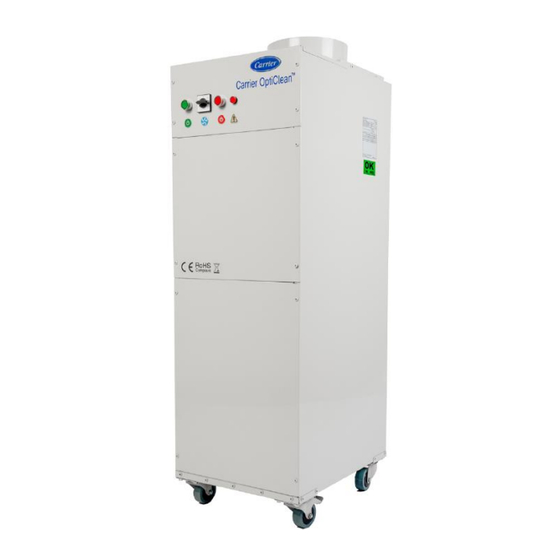

Carrier OptiClean FN1SXF Installation, Operation & Maintenance Manual
Air scrubber - 50/60hz
Hide thumbs
Also See for OptiClean FN1SXF:
- Installation instructions (2 pages) ,
- Operation and maintenance manual (4 pages)
Table of Contents
Advertisement
Quick Links
Quality Assurance
Certificate Reg. No:
04 100 950420
Manufacturer's Name: Saudi Airconditioning Manufacturing Co. Ltd.
Country of origin: Jeddah, Saudi Arabia
Nearest port of embarkation: Jeddah Islamic Port
Product classification: Commercial
The Carrier OptiClean
TM
into Airborne Infectious Isolation (AII) rooms.
The Carrier OptiCleanTM uses highly efficient filters and a heavy duty, yet quiet motor. Remove contaminated air
from the room. the machine is used as an Air Scrubber, pulling air in, removing many contaminants, and discharging
cleaner air back into the room.
The Carrier OptiClean™ is designed for commercial applications and conforms with European 2006/42/EC
Machinery Directive for essential health and safety.
Contact your local Carrier representative for additional reference materials. www.carrier.com
FN1SXF – 50/60Hz
Carrier OptiClean
Air Scrubber is a portable solution primarily designed to help convert normal hospital rooms
FN1SXF Carrier OptiClean
Installation Operation Maintenance Manual
TM
Air Scrubber
Page 1 of 12
Air Scrubber – 50/60Hz
TM
Advertisement
Table of Contents
Related Manuals for Carrier OptiClean FN1SXF
Summary of Contents for Carrier OptiClean FN1SXF
- Page 1 Airborne Infectious Isolation (AII) rooms. The Carrier OptiCleanTM uses highly efficient filters and a heavy duty, yet quiet motor. Remove contaminated air from the room. the machine is used as an Air Scrubber, pulling air in, removing many contaminants, and discharging cleaner air back into the room.
- Page 2 A Note About Safety Any time you see this symbol in manuals, instructions and on the unit, be aware of the potential for personal injury. There are three levels of precaution: Follow all safety codes. Wear safety glasses, protective clothing and work gloves. Have a fire extinguisher available. Read these instructions thoroughly and follow all warnings or cautions included in literature and attached to the unit.
-
Page 3: Table Of Contents
• One-year limited warranty CE Mark and European Regulations Conformity The products of Carrier OptiClean Air Scrubber are in conformity with the European directives and regulation. • EHSR: The products fulfilled the requirement in the directive 2006/42/EC - Machinery Directive for essential health and safety requirements •... -
Page 4: Ce Declaration
Declaration of Conformity We hereby declare that the equipment named below: Trademark Carrier OptiClean Model FN1SXF00500S Is in accordance with the following directives and regulation: 2006/42/EC Machinery Directive for Essential Health and Safety Requirements 2011/65/EU Restriction of Hazardous Substances Directive... -
Page 5: Specifications
Unpacking Your System Carefully remove your unit from its packaging. Inspect for damage. If damage is noted, contact your shipping carrier and file a claim. Casters and Duct Transitions are kept packed underneath the unit follow general instructions. General Instructions The purpose of the duct transition installation kit is to allow round ductwork to be used on the OptiClean™... -
Page 6: The Square To Round Transition
b. Position the caster assembly along the outer edge of the unit and line up the screw holes. c. Use the removed screws to attach the caster assembly. d. Repeat for the other side. Fig. 2 – Casters and Duct Transition 4. -
Page 7: Caster Wheel Assembly / Operating Instructions
To install Square-to-Round Transition P/N 346303-401: 1. Turn off all electrical supply to the unit. 2. Remove the hardware bag from the carton. 3. Place the panel over the unit's supply air opening. See Fig.3. 4. Fasten the panel to the supply air out-turned flange using the provided hardware. See Fig. -
Page 8: Scrubber Mode Application
840 CMH, noise level LpA at 53.6 dBA measured at 1.5-meter distance. Scrubber Mode Application at Tap-4 & Tap-5 The products of Carrier OptiClean can operate in five different fan speed. Operating Scrubber application at Tap-4 and Tap-5 at which the unit is capable to deliver higher airflow could result to higher noise level. -
Page 9: Routine Maintenance
Routine Maintenance Daily Inspect the unit: • power cord is not broken, frayed or worn, and the plug is fully engaged at the wall outlet • casters are locked • red filter/obstruction indicator is not illuminated • unit operates without excessive vibration or unusual noises •... -
Page 10: Troubleshooting
Troubleshooting Before you request dealer service, check for these easily solved problems: • Check your main electrical panel circuit breakers or fuses if the unit will not turn on. • Make sure the unit is plugged in to a working electrical outlet. •... -
Page 11: Base Unit Dimensions
Base Unit Dimensions Page 11 of 12... -
Page 12: Parts
Parts WEEE Disposal Requirements The products of Carrier OptiClean Air Scrubber are marked with this symbol. This means that electrical and electronics products shall not be mixed with unsorted household waste. Refer to your relevant local legislation requirement when to dismantle product. Suggest not to dismantle product yourself.
