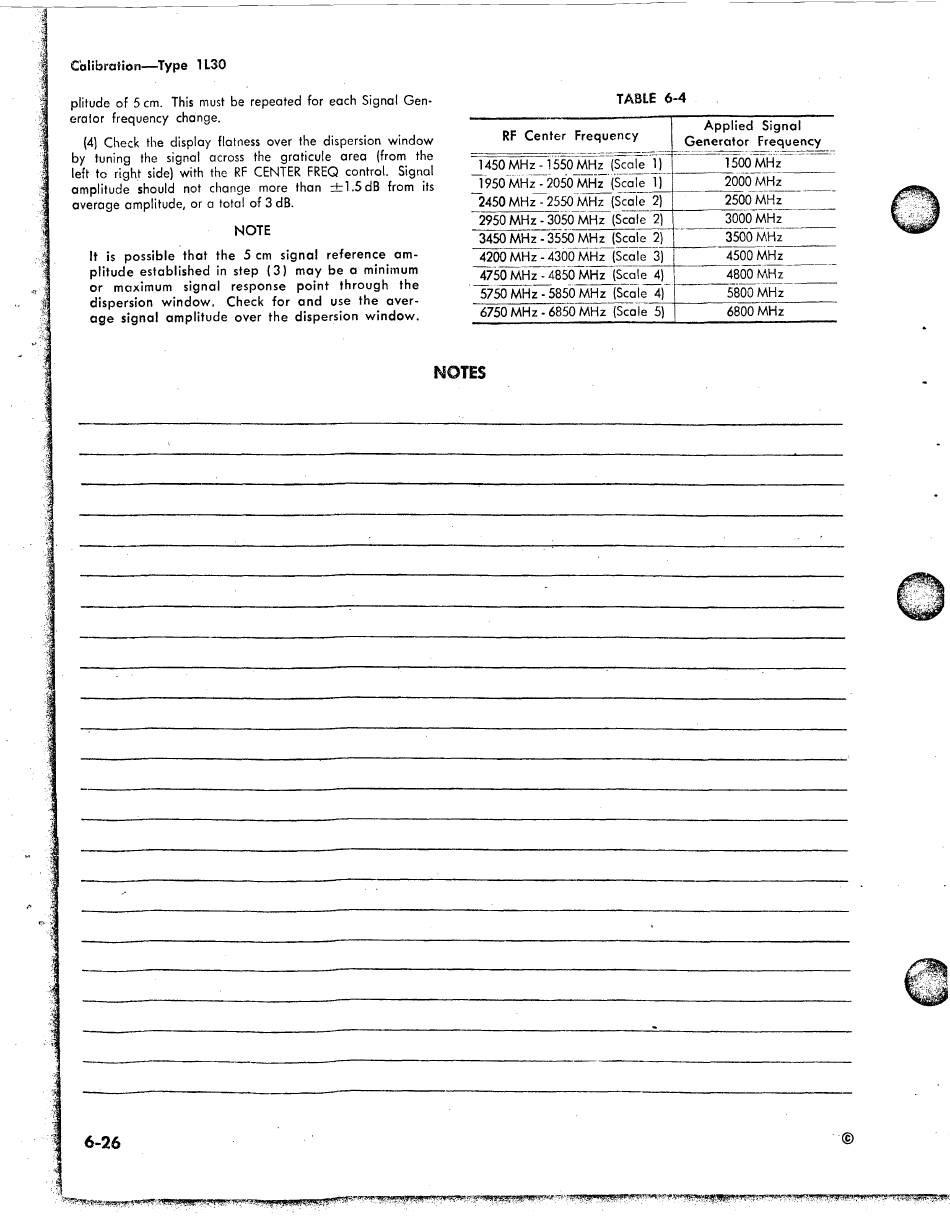

Calibration— Type 1L30
plitude of 5 cm. This must be repeated for each Signal Gen­
erator frequency change.
(4) Check the display flatness over the dispersion window
by tuning the signal across the graticule area (from the
left to right side) with the RF CENTER FREQ control. Signal
amplitude should not change more than ± 1 .5 d B from its
average amplitude, or a total of 3 dB.
It is possible that the 5 cm signal reference am ­
plitude established in step ( 3 ) may be a minimum
or maximum signal
dispersion w indow .
a g e signal am plitude over the dispersion w in d o w .
k
1
■ s
"i
J
I
&
i ■ -y
■I
NOTE
response point through the
Check for and use the a v e r­
RF Center Frequency
1450 M H z - 1550 M Hz (S'cale 1)
1950 M H z -2050 MHz (Scale 1)
2450 M Hz - 2550 MHz (Scale 2)
2950 M Hz - 3050 M Hz (Scaie 2 p
3450 M Hz - 3550 M Hz (Scale 2)
4200 M Hz - 4300 M Hz (Scale 3)
4750 MHz - 4850 M Hz (Scale 4)
5750 M Hz - 5850 M Hz (Scale 4)
6750 M Hz - 6850 M Hz (Scale 5)
NOTES
TABLE 6 - 4
A p p lied Signal
G en erato r Frequency
1500 MHz
2000 MHz
2500 MHz
3000 MHz
3500 MHz
4500 MHz
4800 MHz
5800 MHz
6800 MHz
