Tektronix 1L30 Instruction Manual page 61

Calibration— Type 1L30

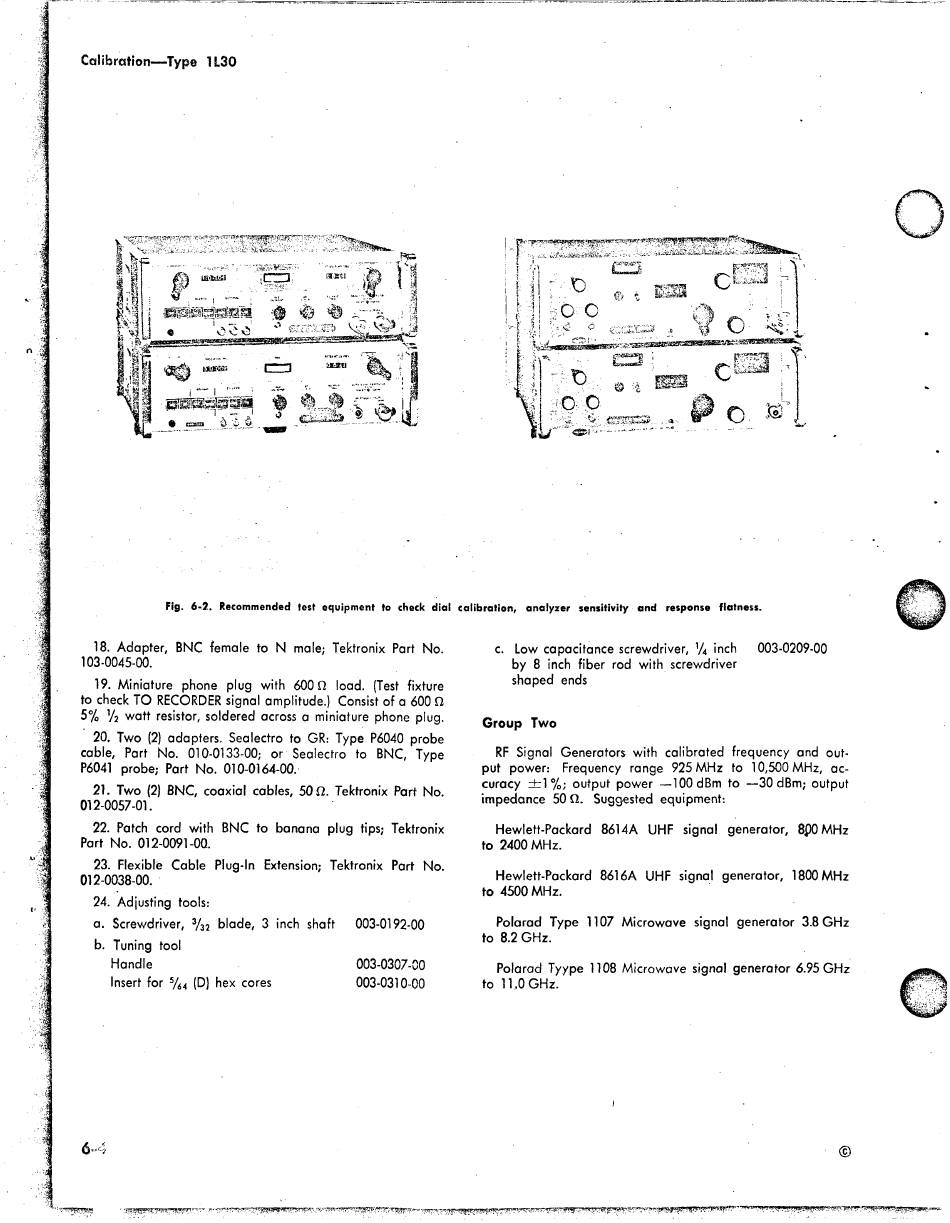

Fig. 6-2. Recommended test equipment to check dial calibration, analyzer sensitivity and response flatness.
18. Adapter, BNC female to N male; Tektronix Part No.
103-0045-00.
19. Miniature phone plug with 600 Q , load. (Test fixture
to check TO RECORDER signal amplitude.) Consist of a 600 f2
5% V watt resistor, soldered across a miniature phone plug.
2
20. Two (2) adapters. Sealectro to GR: Type P6040 probe
cable, Part No. 010-0133-00; or Sealectro to BNC, Type
P6041 probe; Part No. 010-0164-00.
21. Two (2) BNC, coaxial cables, 50 Q. Tektronix Part No.
012-0057-01.
22. Patch cord with BNC to banana plug tips; Tektronix
Part No. 012-0091-00.
23. Flexible Cable Plug-In Extension; Tektronix Part No.
012-0038-00.
24. Adjusting tools:
a. Screwdriver, 3 / 32 blade, 3 inch shaft
b. Tuning tool
Handle
Insert for (D) hex cores
% 4
6
c. Low capacitance screwdriver, V4 inch
by 8 inch fiber rod with screwdriver
shaped ends
Group Two
RF Signal Generators with calibrated frequency and out­
put power:
curacy ± 1 % ; output power — 100 dBm to — 30 dBm; output
impedance 50 fi. Suggested equipment:
Hewlett-Packard 8614A UHF signal generator, 800 M Hz
to 2400 MHz.
Hewlett-Packard 8616A UHF signal generator, 1800 M Hz
to 4500 M Hz.
Polarad Type 1107 Microwave signal generator 3.8 GHz
003-0192-00
to 8.2 GHz.
003-0307-00
Polarad Tyype 1108 Microwave signal generator 6.95 G Hz
003-0310-00
to 11,0 GHz.
Frequency range 925 M Hz to 10,500 MHz, ac­
1
003-0209-00
©
