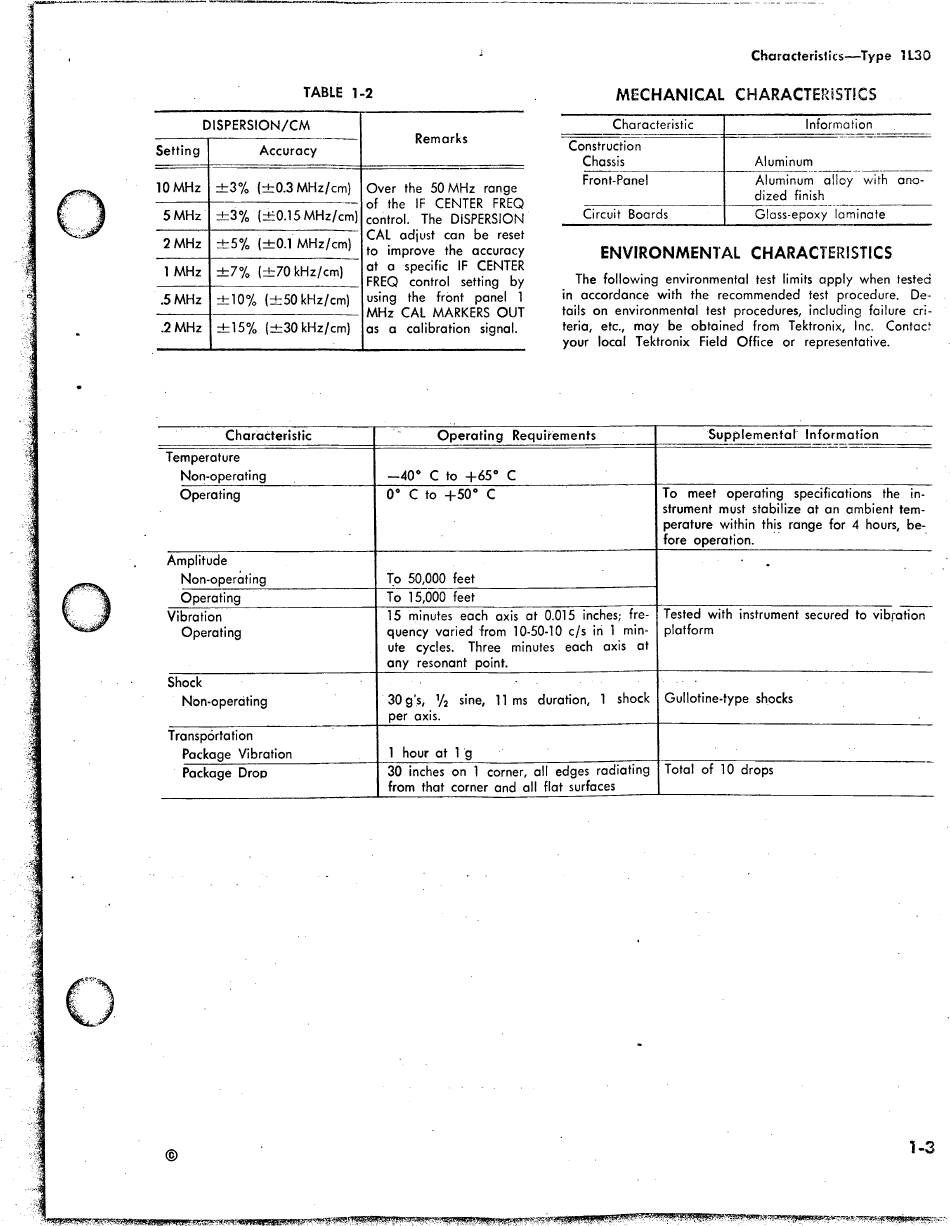

Tektronix 1L30 Instruction Manual page 6

TABLE 1-2
D ISPERSIO N/CM
Setting Accuracy
10 M Hz ± 3 % ( ± 0 .3 MHz/cm )
5 M Hz ± 3 % (± 0 .1 5 MHz/cm )
2 M Hz ± 5 % (± 0 .1 MHz/cm )
1 M Hz ± 7 % ( ± 7 0 kHz/cm)
.5 M Hz ± 1 0 % ( ± 5 0 kHz/cm)
.2 M Hz ± 1 5 % ( ± 3 0 kHz/cm)
Characteristic
Temperature
Non-operating
Operating
Amplitude
Non-operating
Operating
Vibration
Operating
Shock
Non-operating
Transportation
Package Vibration
Package Drop
Remarks
Over the 50 MHz range
of the IF CENTER FREQ
control. The DISPERSION
CAL adjust can be reset
to improve the accuracy
at a specific IF CENTER
FREQ control setting by
using the front panel 1
M Hz CAL MARKERS OUT
as a calibration signal.
O p e ra tin g Requirements
- 4 0 ° C to + 6 5 ° C
0 ° C to + 5 0 ° C
To 50,000 feet
To 15,000 feet
15 minutes each axis at 0.015 inches; fre­
quency varied from 10-50-10 c/s in 1 min­
ute cycles. Three minutes each axis at
any resonant point.
30 g's, V sine, 11ms duration, 1 shock
2
per axis.
1 hour at 1 g
30 inches on 1 corner, all edges radiating
from that corner and all flat surfaces
MECHANICAL CHARACTERISTICS
Characteristic
Construction
Chassis
Front-Panel
Circuit Boards
ENVIRONMENTAL CHARACTERISTICS
The following environmental test limits apply when tested
in accordance with the recommended test procedure.
tails on environmental test procedures, including failure cri­
teria, etc., may be obtained from Tektronix, Inc.
your local Tektronix Field Office or representative.
Supplem ental Inform ation
To meet operating specifications the in­
strument must stabilize at an ambient tem­
perature within this range for 4 hours, be­
fore operation.
Tested with instrument secured to vibration
platform
Gullotine-type shocks
Total of 10 drops
Characteristics— Type 1L30
Information
Aluminum
Aluminum alloy with ano-
dized finish
Glass-epoxy laminate
De­
Contact
•
