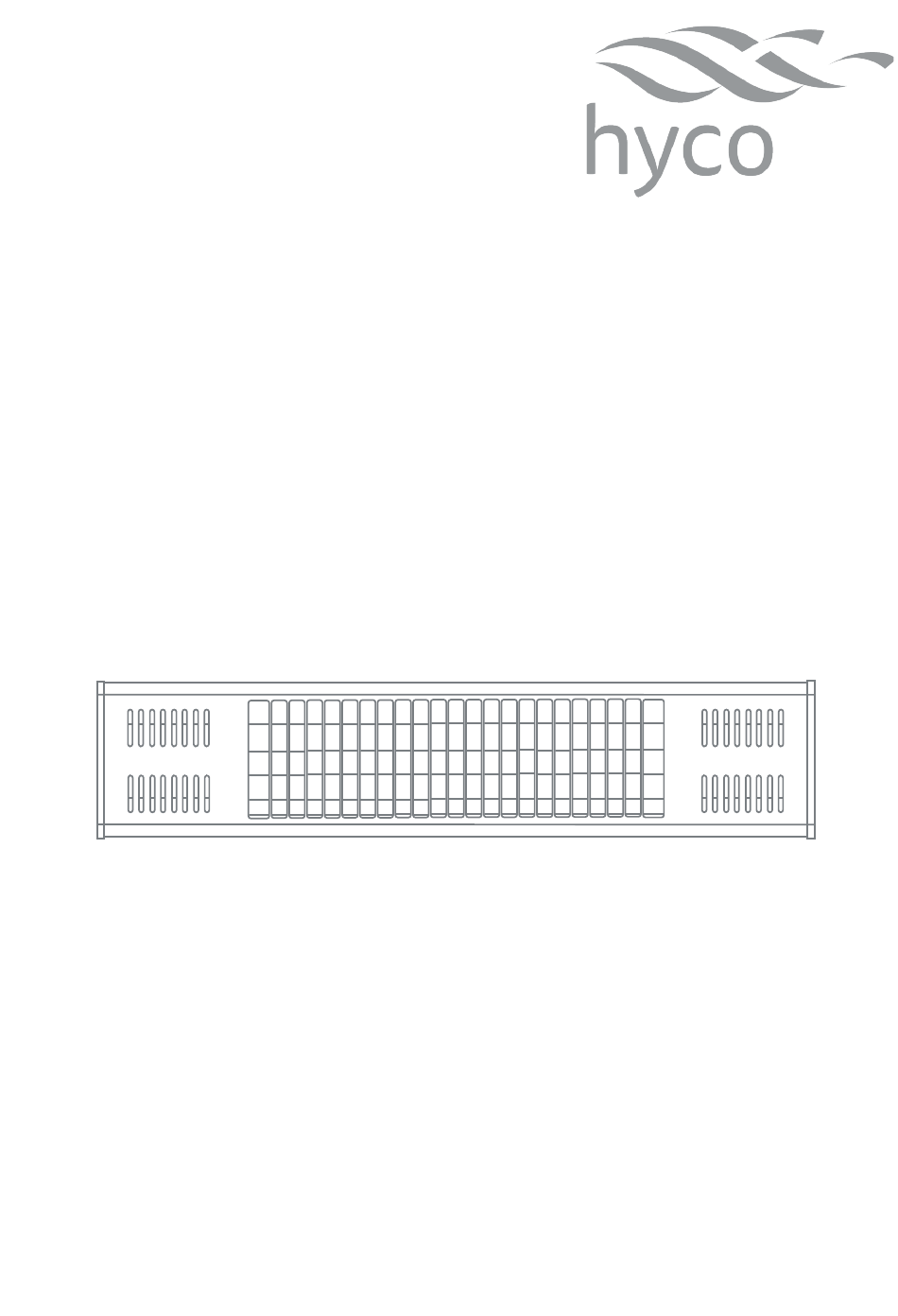

- Page 1 Product Instruction Manual Sun King Quartz SK1500 Outdoor Halogen Infrared Heater v20.7.3...
-
Page 2: Key Features

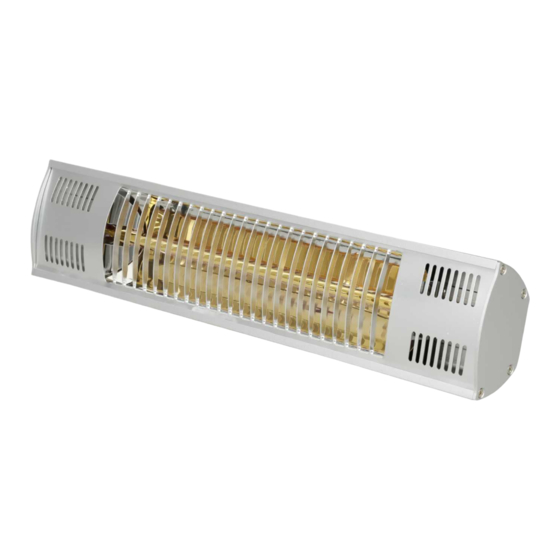

Overview Thank you for purchasing a Sun King Quartz Outdoor Halogen Infrared Heater. The Sun King Quartz is ideal for heating outdoor domestic and commercial applications, such as patios, beer gardens and smoking areas. Key Features • Allows heating of targeted areas •... - Page 3 Ensure that any combustible materials such as curtains, paper, clothing, furniture etc. are kept away at a minimum distance of 1.8m from all surfaces of the heater. Do not install the heater in explosive or combustible environments. The grille of this heater is intended to prevent direct access to heating elements and must be in place when the heater is in use.
-
Page 4: Installation
1. Installation Ensure the minimum distances are followed. • Select a suitable surface that will support the product and accept the wall plugs safely. • When selecting the heater location, ensure the following minimum distances are maintained: Floor 1.8 m, Wall 0.5 m, Ceiling 0.3 m (see diagram 1). •... -
Page 5: Electrical Connection
2. Electrical Connection This appliance must only be connected to a power supply that corresponds to the rating label specifications. If the appliance is connected to the fixed wiring of the property, the electrical installation should be carried out in accordance with the latest IET wiring regulations. -
Page 6: Cleaning And Maintenance
3. Cleaning and Maintenance When replacing the lamp, the unit should be safely disconnected from the electrical supply and removed from the wall so it can be performed on a safe flat surface. Always ensure the heater has fully cooled before handling it. Never handle the glass part of the lamp with bare hands, fingerprints will cause the lamp to burn at this point and seriously impair the lifespan. - Page 7 • Remove both side panels from the unit 1. and slide both back panels away and out from the main chassis 2.
- Page 8 Remove the lamp from the heater by lifting it out of its holders and clear of the heater. Feed the lamp cables out of the holes to complete the lamp removal 1. • Take the new lamp and reverse all the steps to replace. If you experience difficulty please consult a professional, or contact Hyco.
-
Page 9: Specification
4. Specification 230V ~ 50Hz Supply Power 1.5 kW Current 6.5 A Weight 1.4 kg Ingress Protection Dimensions 455W x 100H x 130Dmm... - Page 10 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
