Summary of Contents for Hyco Ariano AR1000T

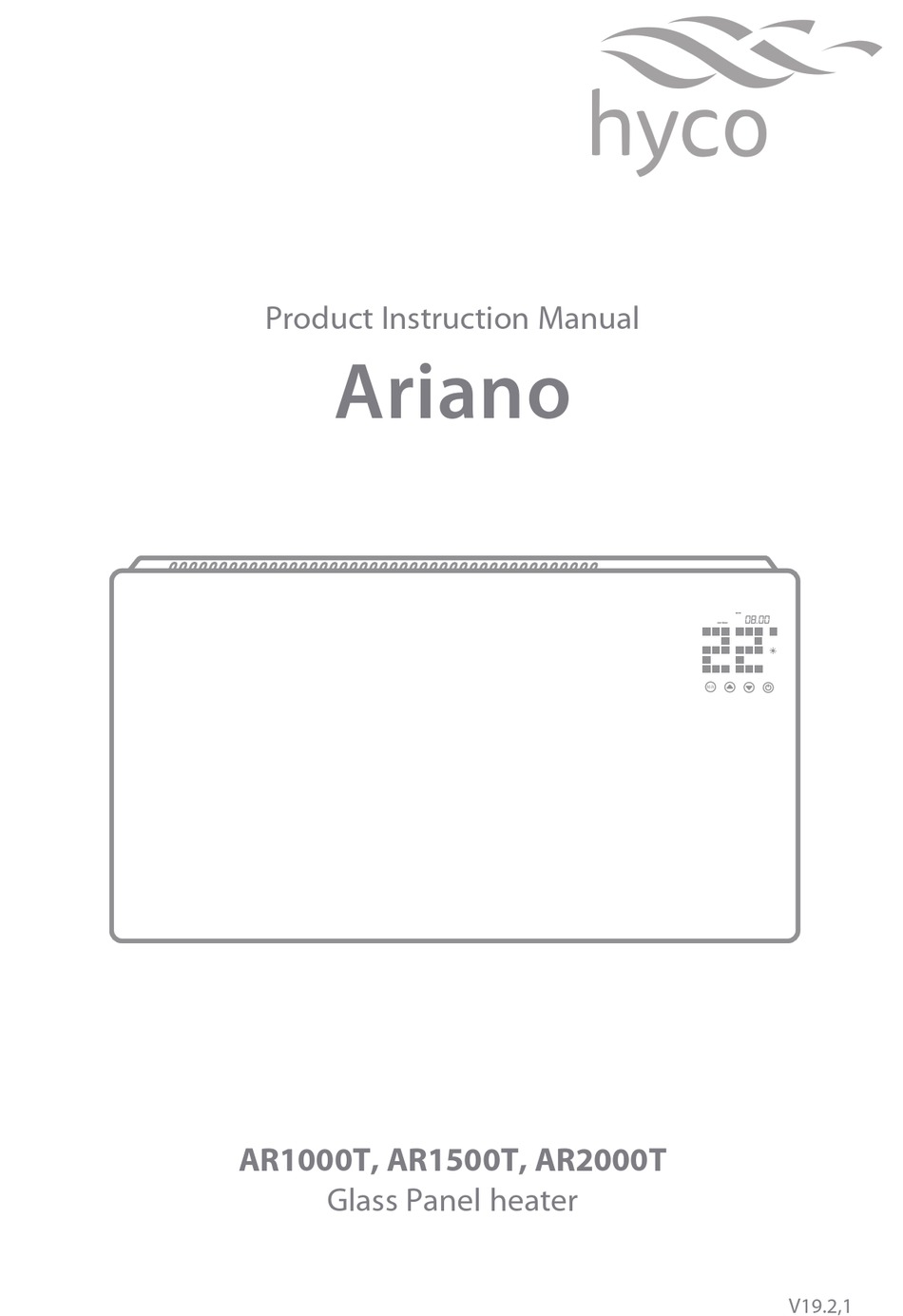

- Page 1 Product Instruction Manual riano 08.00 Day Timer AR1000T, AR1500T, AR2000T Glass Panel heater V19.2,1 Version 3.2 Jan 2015...
-
Page 2: Important Safety Points
Thank you for purchasing a Hyco Ariano glass panel heater. Please ensure you read and understand these instructions to ensure safe installation and operation. The Ariano is ideal for a wide range of fixed installation heating applications in the home and office environment. -
Page 3: Installation
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children of less than 3 years should be kept away unless continuously supervised. - Page 4 L L 1 1 L L 2 Specification Model L(mm) H(mm) L1(mm) L2(mm) H1(mm) H2(mm) AR1000T AR1500T AR2000T • Ensuring a horizontal level, offer the bracket to the wall and mark the two upper holes and the lower central hole as per the dimensions provided in the table above. •...
-
Page 5: Electrical Installation
Electrical installation The electrical installation must be carried out by a qualified electrician in accordance with the current edition of the I.E.E. Wiring Regulations. • Connection should be made to the fixed wiring of the property via a double pole fused spur with a break capacity of no less than 13amps. -
Page 6: Operation
3. Operation Control panel overview 1. Window open indicator 8. Timer on 14. Up selector 2. Auto mode indicator 9. Full power 15. Manual/Auto mode 3. Manual mode indicator 10. Half power 16. Target temperature 4. Timer period indicator 11. Element on indicator 17. - Page 7 Setting the target temperature • Turn on the display screen by pressing the standby on/off button. • To set the target temperature of the heater use the buttons on the touch screen to cycle to the desired target value, allow the display to flash for several seconds, when it stops flashing the display will show the new stored target temperature.
- Page 8 Manual (run on) timer programming In order to use this feature, the remote control must be used. • Turn on the display screen by pressing the standby on/off button. • Select “M” mode via the remote control by pressing the M/A button until "M" is displayed on the touch screen in the manual mode indicator.
-
Page 9: Maintenance And Troubleshooting
When the heater is in a defined period of non-operation it will automatically go into standby mode. It can be woken up by pressing any button in order to alter settings but will go back into standby if no further button is pressed within 10 seconds. Setting the child lock •... -
Page 10: Specifications
5. Specifications AR1000T AR1500T AR2000T Supply 230v~ 50Hz Power (half/full) 500/1000W 750/1500W 1000/2000W Water resistance IP24 Class 5.8kg 7.5kg 9.25kg Weight Thermal protection Auto reset thermostat x 2 515x105x 675x105x 835x105x Size (w x d x h) 450mm 450mm 450mm Model Identifiers: Ariano panel heaters AR100T,AR1500T &... -
Page 11: Guarantee And Service Policy
Item Unit Type of heat input, for electric storage local space heaters (select one) manual heat charge control with integrated thermostat manual heat charge control with room and/or outdoor temperature feedback electronic heat charge control with room and/or outdoor temperature feedback fan assisted heat output Type of heat output/room temperature control (select one) single stage heat output and no room temperature control... - Page 12 If you experience a problem with this product you should first contact our service department on 01924 225 200 before taking any further action. Experience has shown that issues can often be resolved without the need to return or uninstall the product. Hyco Manufacturing Ltd Normandy Court Express Way Castleford, WF10 5NR...
