Summary of Contents for Hyco SK1500

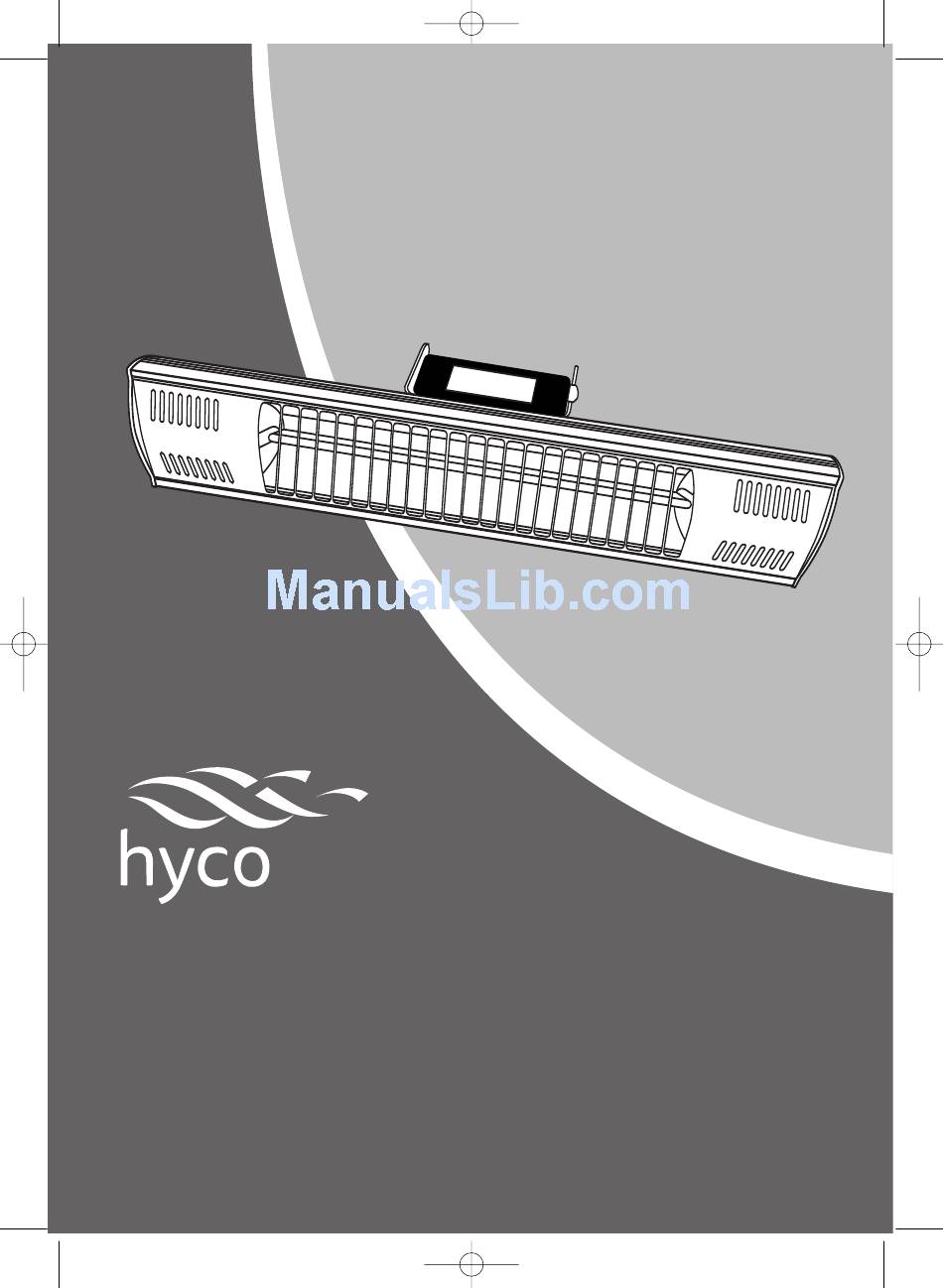

- Page 1 Sunking 1.5kW 6/10/14 11:14 Page 1 Sunking 1.5kW Outdoor Infra-Red Heater SK1500 Instruction Manual Version 1.0 october 2014...

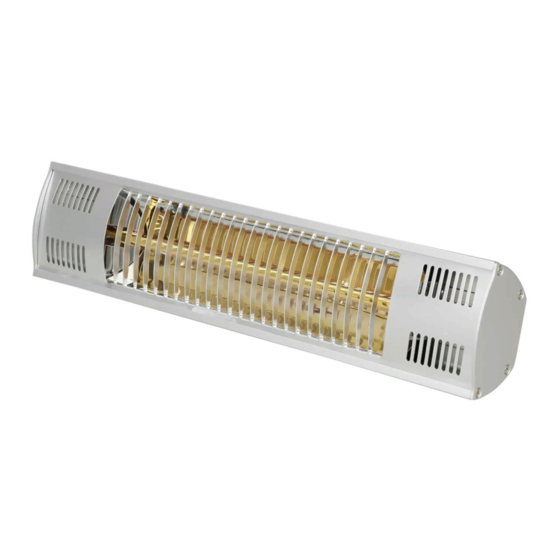

- Page 2 OF INSTALLATION ENSURE THE INSTRUCTIONS ARE LEFT WITH THE USER/MAINTAINER OF THE PRODUCT. Sunking 1.5kW Outdoor Infra-Red Heater SK1500 1. INTRODUCTION The Sun King weatherproof outdoor heater is ideal for domestic and commercial outdoor heating applications. It contains quartz halogen infra-red lamps that operate at a very high temperature and is suitable for patios, beer gardens and outdoor smoking areas.
-
Page 3: Important Safety Points
Sunking 1.5kW 6/10/14 11:14 Page 3 2. IMPORTANT SAFETY POINTS DO NOT PROCEED WITH INSTALLATION IF THERE IS ANY SIGN OF DAMAGE OR DEFECT TO THE PRODUCT. THE PRODUCT SHOULD ONLY BE CONNECTED TO A SUPPLY THAT MEETS THE SPECIFICATIONS DETAILED ON THE RATING LABEL. ELECTRICAL INSTALLATION SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH THE LATEST EDITION OF THE IEE WIRING REGULATIONS. -
Page 4: Installation
Sunking 1.5kW 6/10/14 11:14 Page 4 3. INSTALLATION ENSURE THE MINIMUM DISTANCES ARE FOLLOWED. ENSURE THERE ARE NO COMBUSTIBLE MATERIALS SUCH AS; CURTAINS, PAPER, CLOTHING FURNITURE ETC.WITHIN A MINIMUM DISTANCE OF 1.8M FROM ALL SURFACES OF THE HEATER. Select a suitable surface that will support the product and accept the wall plugs safely. -
Page 5: Electrical Connection
Sunking 1.5kW 6/10/14 11:14 Page 5 4. ELECTRICAL CONNECTION THE SUN KING OUTDOOR HEATER IS SUPPLIED WITH 1.8M OF HEAT RESISTANT CORD AND A MOULDED 13AMP BS PLUG. IT IS HIGHLY RECOMMENDED THAT IF IT IS CONNECTED TO A SOCKET OUTSIDE IT SHOULD BE A WATERPROOF TYPE SOCKET. -
Page 6: Cleaning And Maintenance
Sunking 1.5kW 6/10/14 11:14 Page 6 5. CLEANING AND MAINTENANCE Replacing the lamp WHEN REPLACING THE LAMP,THE UNIT SHOULD BE SAFELY DISCONNECTED FROM THE ELECTRICAL SUPPLY AND REMOVED FROM THE WALL SO IT CAN BE PERFORMED ON SAFE FLAT SURFACE. ALWAYS ENSURE THE HEATER HAS FULLY COOLED BEFORE HANDLING IT. - Page 7 Sunking 1.5kW 6/10/14 11:14 Page 7 Remove both side panels from the unit and slide both back panels away and out from the main chassis...
- Page 8 Sunking 1.5kW 6/10/14 11:14 Page 8 Remove the live and neutral lamp connections from the terminal block located inside the wiring box. Remove the front guard by gently sliding out from either end of the heater.
- Page 9 Sunking 1.5kW 6/10/14 11:14 Page 9 Remove the lamp from the heater by lifting it out of its holders and clear of the heater. Feed the lamp cables out of the holes to complete the lamp removal. Take the new lamp and reverse all the steps to replace. If you experience difficulty please consult a professional, or call the number on the rating label for further advice.
-
Page 10: Technical Specification
Sunking 1.5kW 6/10/14 11:14 Page 10 6.TECHNICAL SPECIFICATION Sunking 1.5kW Voltage 230v ~ 50Hz Power 1500W Current 6.5A Weight 1.0kg Ingress protection Dimensions 455W x 100H x 125Dmm... - Page 11 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation and frost damage are excluded.
- Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court, Express Way Castleford,WF10 5NR Sales: 01924 225 200...
