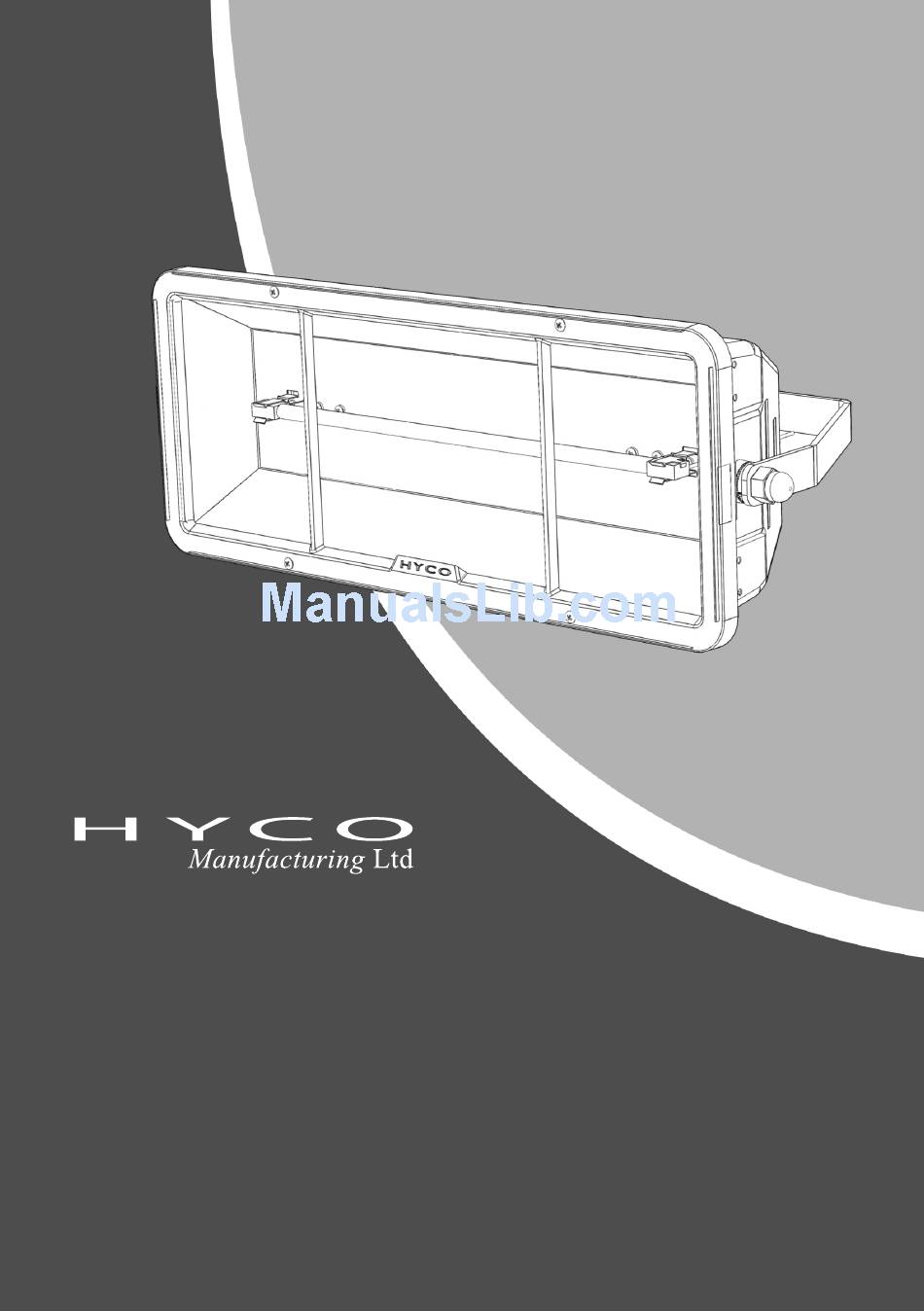

- Page 1 Sun Prince Quartz Heater Models - SP1000H, SP1500H, SP2000H, SP3000H, SP4000H, SP4500H Instruction Manual Version 5.2 2014...
- Page 2 HYCO SUN PRINCE QUARTZ HEATER SP1000H, SP1500H, SP2000H, SP3000H, SP4000H, SP4500H Thank you for purchasing the Hyco Sun Prince Quartz Heater. This heater use radiant heat to warm objects and people directly, making it ideal for draughty, hard to heat situations, such as workshops and warehouses. Please read and understand these instructions before commencing installation and leave them with the user when installation is complete.
-
Page 3: Safety Warning
1. SAFETY WARNING: THE ELECTRICAL INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH THE CURRENT EDITION OF THE IEE WIRING REGULATIONS. A RCD CIRCUIT BREAKER IS STRONGLY RECOMMENDED. THIS HEATER IS NOT EQUIPPED WITH A DEVICE TO CONTROL THE ROOM TEMPERATURE. -
Page 4: Specifications
DO NOT USE THE HEATER WITHOUT THE SAFETY GUARD FITTED OR IF THE SAFETY GUARD IS DAMAGED. THE SUN PRINCE HEATER IS NOT SUITABLE FOR OUTDOOR USE OR USE IN DAMP CONDITIONS. AVOID CONTACT WITH WATER. THE SUN PRINCE IS NOT SUITABLE TO BE USED IN LOCATIONS WHERE MOVING OBJECTS MAY COLLIDE WITH THE HEATER, FOR EXAMPLE IN SPORTS HALLS WHERE BALLS MAY COLLIDE WITH THE LAMP. -
Page 5: Installation
3. INSTALLATION When choosing the location for mounting the Sun Prince, ensure that you have followed the safety instructions and recommendations. All models can be mounted on the wall bracket provided. Units SP3000H, SP4000H, SP4500H, can also be ceiling mounted using chains and eye bolts (not supplied). See diagrams and tables in the following section on mounting each model. - Page 6 Fig 1. Assembly diagrams...
-
Page 7: Installation - Wall Mounting
3.1. INSTALLATION - WALL MOUNTING Fig 2 Wall bracket mount to main body of the heater SP1000H SP3000H SP4500H SP1500H SP4000H SP2000H Caution! WHEN MOUNTING THE SUN PRINCE USING THE WALL BRACKET PROVIDED, THE MINIMUM DISTANCES AND ANGLE MUST BE OBSERVED. - Page 8 Model Number Lamp Power (kW) Distance A Distance B Angle C To wall (mm) To ceiling (mm) SP1000H 20 - 90 SP1500H SP2000H SP3000H 1.5 (x2) SP4000H (x2) SP4500H 1.5 (X3) Once the position of the Sun Prince has been decided, the unit can be mounted (see Fig 1).
- Page 9 3.2. INSTALLATION - CEILING MOUNTING Caution! SINGLE UNITS (SP1000H,SP1500H,SP2000H) ARE NOT SUITABLE FOR CEILING MOUNTING. USE ONLY THE WALL BRACKET PROVIDED. When ceiling mounting the unit, the minimum distances below must be observed. Model Number Distance A Distance B Distance C Angle D To wall (mm) To wall (mm)
-
Page 10: Electrical Installation
• PIR devices or other controllers may be used to control this unit provided all devices are rated to the appropriate electrical loading with due allowance for in-rush current. (Hyco Sun Prince controllers are available and are fitted with a “soft start” feature that negates the need for a slow blow circuit breaker.) •... -
Page 11: Cleaning And Maintenance
• Replace the four retaining screws. 6. GUARANTEE AND SERVICE POLICY The Hyco Sun Prince Quartz Heater is supplied with a standard 12 month replacement warranty (excluding lamps) that protects against any manufacturing defects for up to 1 year from the original purchase date. In the event of a product failure please contact Hyco on 01924 225200. - Page 12 Normandy Court, Express Way Castleford,WF10 5NR Sales: 01924 225 200 Fax: 01924 225 210 Switchboard: 01924 225 215 Email: sales@hyco.co.uk www.hyco.co.uk WATER HEATING SPACE HEATING HAND DRYERS...
