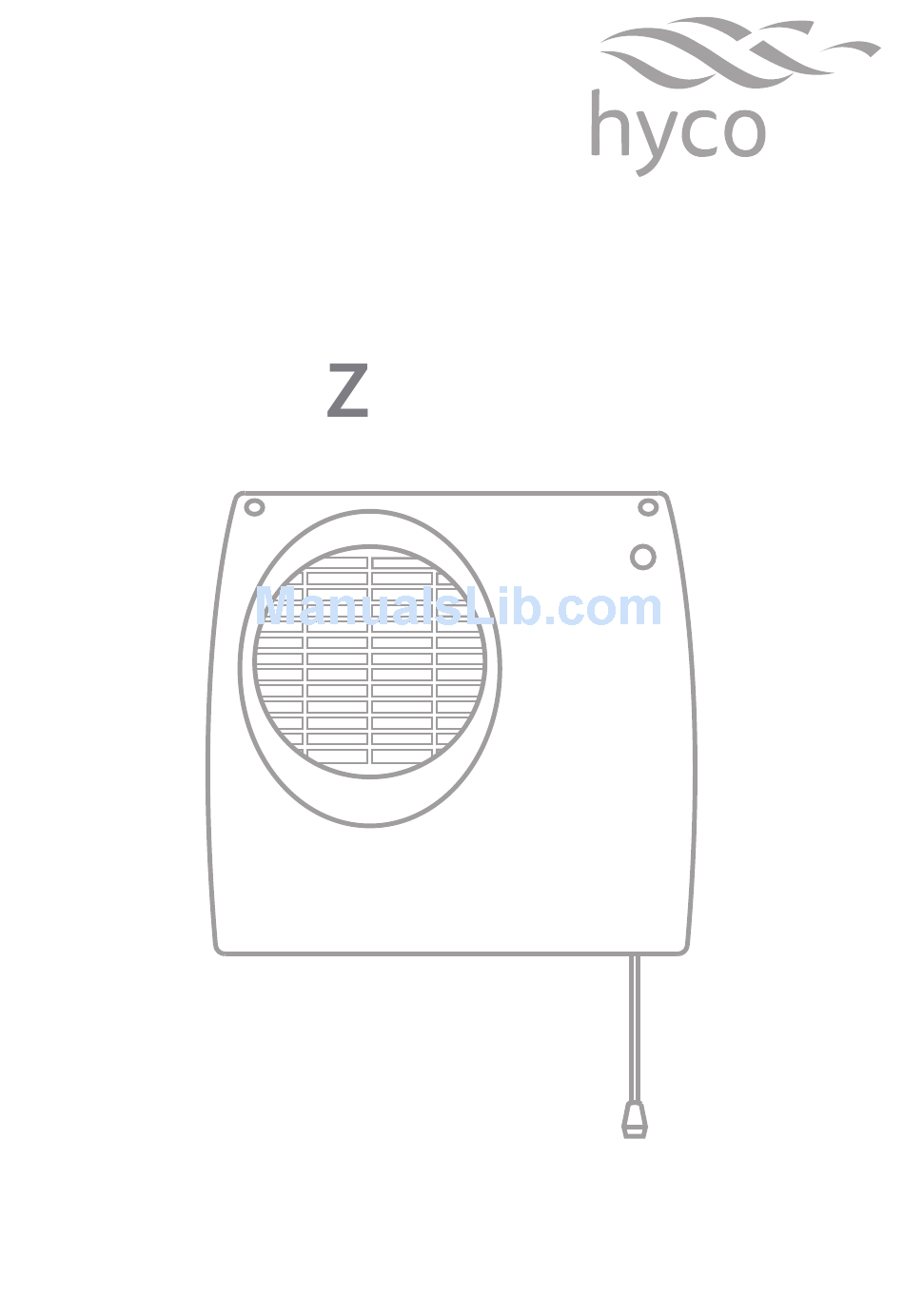

- Page 1 Product Instruction Manual ephyr DF20 2.0 kW Downflow fan heater Version 3.2 Jan 2015 V15.9/5...

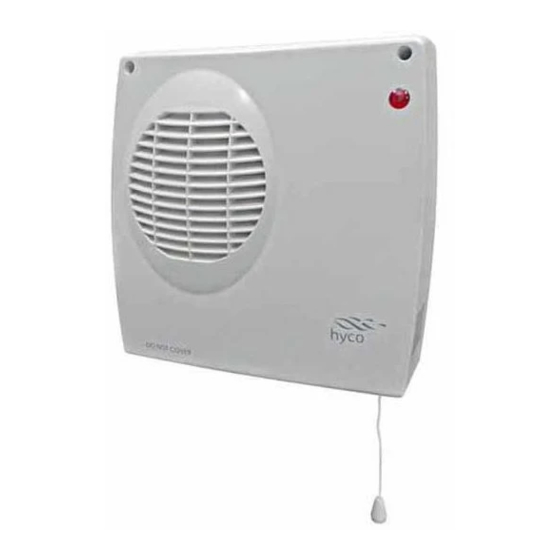

- Page 2 Zephyr_Layout 1 05/10/2015 14:34 Page 2 Thank you for purchasing the Hyco Downflow Fan Heater. The Downflow heater has two selectable settings. Setting I gives a fixed 1kw output and setting II also gives a fixed 1kw output plus a further 1kw which is thermostatically controlled.
- Page 3 Zephyr_Layout 1 05/10/2015 14:34 Page 3 • Do not let animals or children touch or play with the heater. Please note that the hot air outlet gets very hot during operation. • The downflow heater is not suitable for outdoor use. •...
- Page 4 Zephyr_Layout 1 05/10/2015 14:34 Page 4 2. Installation Wall Mounting • The Downflow fan heater is to be wall mounted at a minimum height of 1.8m in the upright position with the warm air vent facing downwards. • Loosen the two screws at the top of the front of the heater and lift off the front cover •...
- Page 5 Zephyr_Layout 1 05/10/2015 14:34 Page 5 Ceiling 300 min 250 min. Top Fixing hole Wall 1800 min Floor Electrical The installation, electrical connection and first operation of this appliance should be carried out by a qualified installer. • Electrical connection must be made to the fixed wiring of the property by means of a connection box and protected by a 13A fuse.
- Page 6 Zephyr_Layout 1 05/10/2015 14:34 Page 6 NOTE: When used in small rooms of less than 10m3 the 1kw output should be selected to avoid nuisance tripping of the cut-out • Set the thermostat to the mid position (recommended setting). • Refit front cover and secure.
-
Page 7: Specifications
Zephyr_Layout 1 05/10/2015 14:34 Page 7 4. Maintenance • Before cleaning, ensure the heater is unplugged and that it has cooled completely. • Wipe the exterior of the heater with a soft dry cloth. • Never use any chemical or abrasive cleaners. •... - Page 8 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation and failure to follow correct operating instructions are excluded.
