Summary of Contents for Hyco Sun Prince

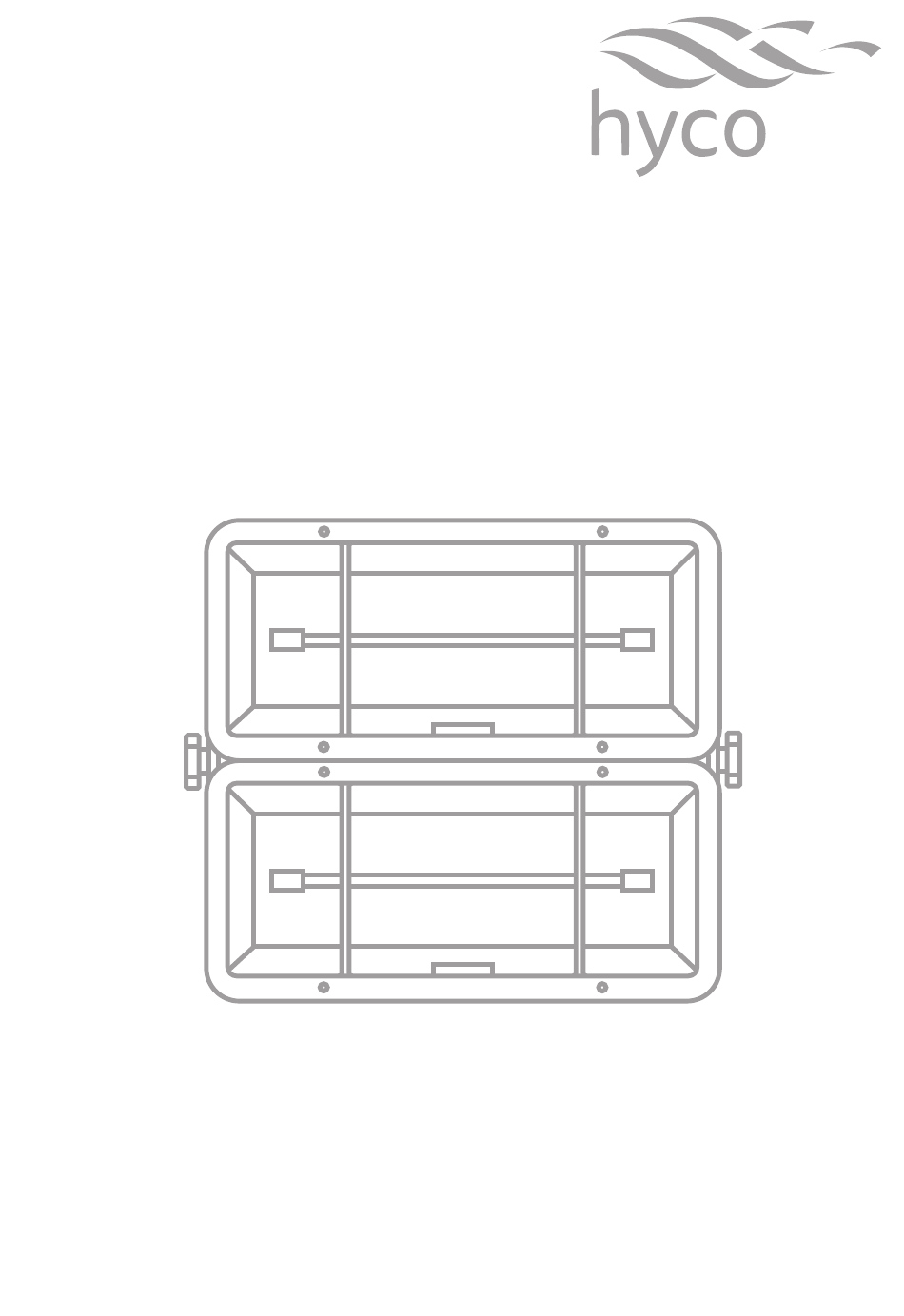

- Page 1 Product Instruction Manual Sun Prince 1.0kW, 1.5kW, 2.0kW, 3.0kW, 4.0kW and 4.5kW Indoor Halogen Infrared Heater V20.7.3...
-
Page 2: Important Safety Points
Thank you for purchasing the Hyco Sun Prince Heater. This heater is for use in unenclosed spaces. Please read and understand these instructions before commencing installation and leave them with the user when installation is complete. 1. Important safety points Do not install the appliance if there is any sign of damage, especially to the lamp •... -
Page 3: Installation
• 2. Installation When choosing the location for mounting the Sun Prince, ensure that you have fol- lowed the safety points. All models can be mounted on the wall bracket provided. Units SP3000HL, SP4000HLG and SP4500HL can also be ceiling mounted using chains and eye bolts (not supplied). - Page 4 Fig 1 – Assembly drawing...
- Page 5 Fig 2 Wall bracket mount to main body of the heater. SP1000HLG SP3000HL SP4500HL SP1500HL SP4000HLG SP2000HLG • When mounting the Sun Prince using the wall bracket provided, the minimum distances and angle must be observed. Distance C Angle D (°) Model Number Distance A Distance B To floor (mm)
- Page 6 Once the position of the Sun Prince has been decided, the unit can be mounted. • The “L” piece of the bracket should be firmly fixed in position using screws and wall plugs. • Attach the main body holder part of the bracket to the piece attached to the wall using the nut and bolt provided.
- Page 7 Model Distance A Distance B Distance C Angle D Chain Rating To ceiling To floor Number To wall (Min - Max °) (kg) (mm) (mm) (mm) 1800 SP3000HL 20 - 45 1800 SSP4000HLG 20 - 45 1800 SSP4500HL 20 - 45 When mounting the unit ensure the mounting surface is capable of safely holding the weight of the unit being fitted.
- Page 8 PIR devices or other controllers may be used to control this unit provided all devices are rated to the appropriate electrical loading with due allowance for the in-rush current. (Hyco Quartz controllers are available and are fitted with a “soft start” feature that negates the need for a slow blow circuit breaker).
-
Page 9: Operation
3. Operation This unit does not have an on/off switch and will operate as soon as mains power is supplied to the unit. 4. Maintenance Before any maintenance or cleaning, ensure the heater is disconnected from the • power supply and has cooled completely. •... -
Page 10: Specifications
• Clip the lamp into the lamp holders. • Replace the reflector and secure the front guard using the four retaining screws. • Replace the back box covering the terminal block. 5. Specifications Model Power (kW) Lamp Colour Lamp Qty SP1000HLG Gold 1 x L1000CGL... -
Page 11: Guarantee And Service Policy
6. Guarantee and service policy This product is covered by a standard parts or replacement warranty for a period of one year from the date of purchase. If there is a manufacturing defect within the warranty period we will send spare parts, repair and return the unit or, at our discretion, supply a replacement product (excluding lamps). - Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
