H/JIG/B
Please read these instructions before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H/JIG/B and is the answer not in the manual?

Questions and answers

Related Manuals for TREND H/JIG/B

Summary of Contents for TREND H/JIG/B

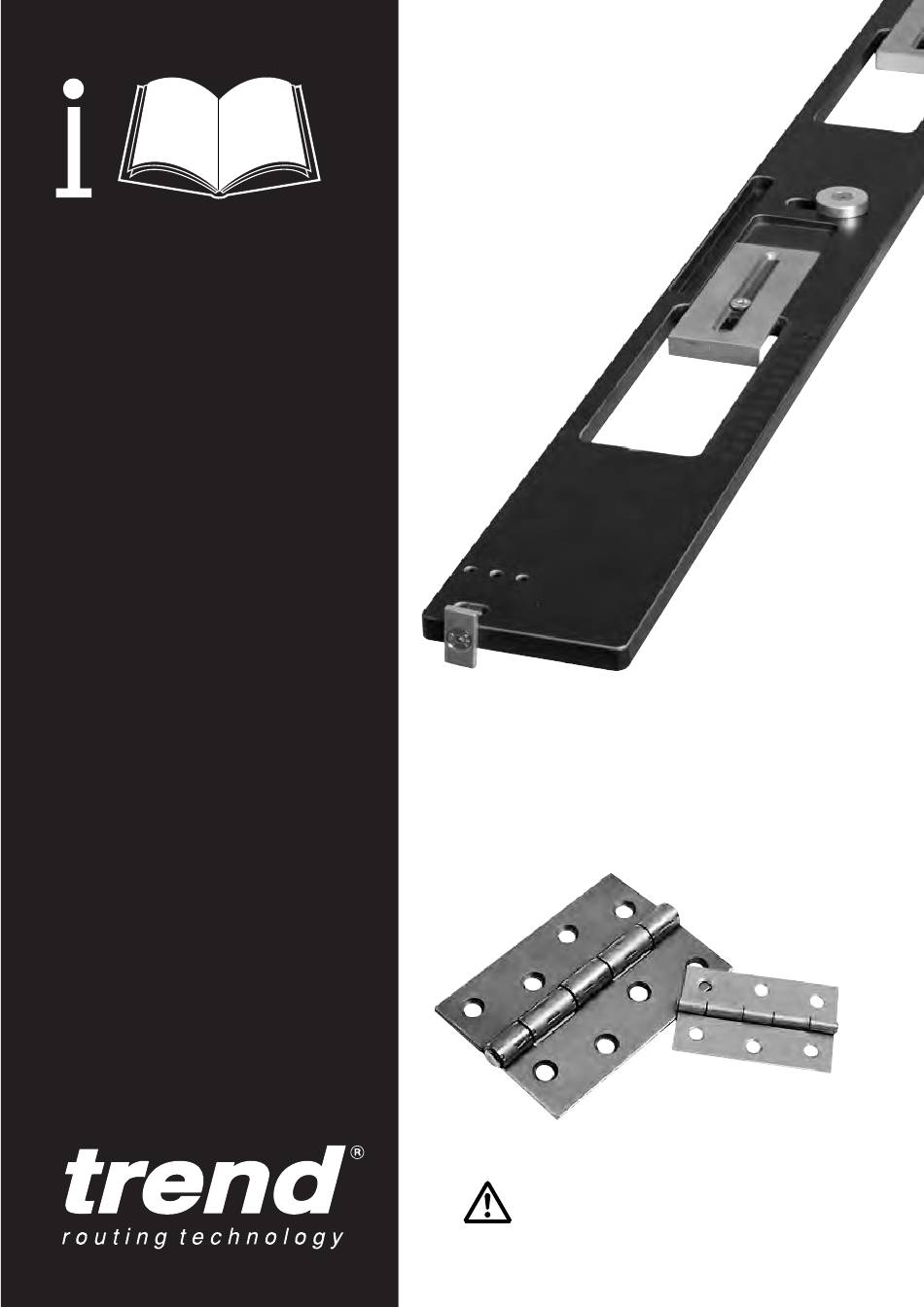

  • Page 1 H/JIG/B Please read these instructions before use.

  • Page 2: Table Of Contents

    H/JIG/B Dear Customer TECHNICAL DATA Thank you for purchasing this Trend product, ⁄ Guide bush diameter 16mm ”) we hope you enjoy many years of creative and Hinge length min. 50mm (2”) productive use. max. 127mm (5”) Please remember to return your guarantee card ⁄...

  • Page 3: Safety

    H/JIG/B SAFETY power tool or accessory by cord or covering to contain long hair. pull it to disconnect from the socket. 5. Consider working environment. Do WARNING: Keep cord from heat, oil and sharp not use the product in the rain or in Observe the safety regulations in the edges.
  • Page 4 Recommended be tightened using the appropriate between cutter tip and inside edge speeds are shown in the Trend spanner or key and to the torque of bush and that it cannot come into Routing Catalogue and/or website.

  • Page 5: Items Required

    H/JIG/B ITEMS ENCLOSED ITEMS REQUIRED n 1/4” collet plunge router. n 12mm diameter router cutter with 1/4” long series shank. n Door clamping device. n Hand tools.

  • Page 6: Description Of Parts

    H/JIG/B DESCRIPTION OF PARTS A Jig body short (top) B Jig body long (bottom) C Aperture D Edge stop location slot E Swive l end plate F Bradawl hole G Guide bush 16mm with extra long spigot H Edge stop...

  • Page 7: Assembly

    H/JIG/B ASSEMBLY The jig is in two separate pieces. It is assembled by the use of a one way keyhole slotted connecting plate. Use the keyhole slot to capture the head of the screw and pull both parts together in the direction shown.

  • Page 8: Setting Up The Plunge Router

    H/JIG/B Setting up the Plunge Router The guide bush fits directly to the Trend T5 Router. To fit the guide bush to other makes and models, a universal sub-base Ref. UNIBASE or circular sub-base Ref. GB/5 can be used. The Ref. UNIBASE is designed to suit the most popular plunge type routers (please see our website for compatibility).

  • Page 9: Fitting The Router Cutter

    H/JIG/B Fitting the Router Cutter n The recommended router cutters for use with the jig are Refs. 3/8LX1/4TC, TR12X1/4TC or C019AX1/4TC. n The cutter must have a 12mm diameter and a minimum overall length of 70mm. n Unplug the router from mains, insert 25mm...

  • Page 10: Operation

    H/JIG/B OPERATION Setting the Jig for Hinge Recessing The jig has adjustments which will require setting depending on the door size and thickness, as well as the size and positions of the hinges. These are all carried out with the hex key provided with the jig, and with one hinge.
  • Page 11 H/JIG/B Setting up the Hinge Length n The aperture length can be set using the engraved markings and a hinge. n Loosen the screw so that the adjustment plate is free to slide. n Align the leaf of the hinge with ‘0’ as shown.

  • Page 12: Routing Hinge Recesses In The Door

    Use the conventional block and wedge to keep the door securely in this position or use the Trend door stand Ref. D/ STAND/A. n Place the jig onto the edge of the door.
  • Page 13 H/JIG/B with cutter and guide bush fitted into the first aperture of the jig. n Position the guide bush in the corner of the aperture, switch router on and plunge the cutter until correct depth is reached. Lock the carriage of the router in this position. Rout...

  • Page 14: Routing Hinge Recesses In The Frame

    H/JIG/B Routing Hinge Recesses in the Frame n No adjustments are necessary to the jig or the router. n Swivel the end plate through 90°. n Using the opposite side of the jig, butt the top of the jig into the head of the frame and up against the hanging jamb until the edge stops touch the opening edge of the frame.
  • Page 15 H/JIG/B n Position the guide bush in any corner of an aperture, switch router on and plunge the cutter into frame until depth, set by depth stop, is reached. Lock the carriage of the router in this position. Immediately start routing around the aperture in a clockwise direction.

  • Page 16: Fitting The Door

    MAINTENANCE can be temporarily glued or stuck to the swivel Please use only Trend original spare parts and end plate in order to utilise the jig in the same accessories. technique and achieve accurate results.

  • Page 17: Spare Parts - Spare Parts Diagram

    H/JIG/B H/JIG/B - SPARE PARTS DIAGRAM V2.0 02/2011 Please use only Trend original spare parts. H/JIG/B - SPARE PARTS LIST V2.0 02/2011 Qty. Desc. Ref. Jig Body Short (Top) WP-HJ/B/01 Jig Body Long (Bottom) WP-HJ/B/02 Swivel Plate WP-HJ/B/04 Edge Stop Complete...

  • Page 18: Quick Start Instructions

    H/JIG/B QUICK START INSTRUCTIONS These instructions are provided for those who are confident with the router and are already familiar with the H/JIG/B. Setting Up Routing the Frame 1. Fit router cutter and guide bush to router. 1. Rotate the end plate until flush with jig.
  • Page 19 RECYCLABLE © Copyright Trend 2014, 2015. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools cannot be held liable for any material rendered unusable or any form of consequential loss.
