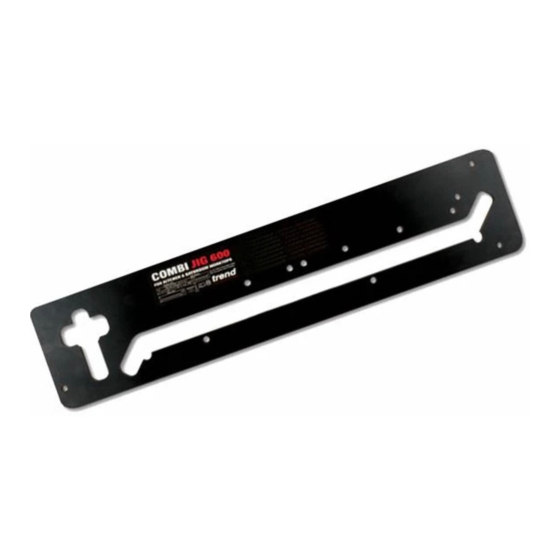

KITCHEN & & B B A A T T H H R R O O O O M M
WORKTOP JIG
600mm
For joining kitchen &
bathroom worktops
with a router.
■
Made from durable 10mm
thick phenolic.
■
Alloy location bushes.
■
Preset widths.
Requires:
■
12.7mm (1/2") collet plunge
router.
■
12.7mm (1/2") x 50mm TCT
router cutter Ref. 3/83DX1/2TC
■
30mm guide bush Ref. GB30.
■
Universal sub-base for guide
bush Ref. UNIBASE
■
Two 100mm (4") throat clamps
Ref. FC/200.
■
Panel bolt connectors
Ref. PC/10/M.
JOINT
*
.
225mm - 616mm
WORKTOP WIDTHS
225mm
500mm
325mm
600mm
300mm
616mm
400mm
COMBI600
*
For certain makes & models of router.
Router cutter & worktop not included.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMBI 600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TREND COMBI 600

Summary of Contents for TREND COMBI 600

  • Page 1 KITCHEN & & B B A A T T H H R R O O O O M M WORKTOP JIG 600mm For joining kitchen & bathroom worktops with a router. ■ Made from durable 10mm thick phenolic. ■ Alloy location bushes. ■...

  • Page 2: Table Of Contents

    COMBI 600 TECHNICAL DATA Dear Customer Thank you for purchasing this Trend product, we Jig thickness 10mm hope you enjoy many years of creative and Cutter size 12.7mm productive use. Workpiece thickness max. 45mm Please remember to return your guarantee card Worktop width: min.

  • Page 3: Safety

    COMBI 600 SAFETY and balance at all times. Do not use recommended when working awkward or uncomfortable hand outdoors. Wear protective hair WARNING: positions. covering to contain long hair. Observe the safety regulations in the 17. Don’t abuse the cable. Never carry 5.
  • Page 4 15. All fastening screws and nuts should be adhered to. Recommended speeds 4. When using a template guide bush, be tightened using the appropriate are shown in the Trend Routing ensure there is sufficient clearance spanner or key and to the torque Catalogue and/or website.

  • Page 5: Items Enclosed

    COMBI 600 ITEMS ENCLOSED 6 0 0 ITEMS REQUIRED ■ Clamps x2 ■ Hand tools ■ 1/2” plunge router ■ Panel connector bolts ■ 30mm guide bush ■ Wooden biscuits Size No.20 ■ 12.7mm diameter x 50mm cut router cutter with 1/2” shank ■...

  • Page 6: Accessories

    COMBI 600 ACCESSORIES Products available from your local store where you bought the jig. Recommended Cutters Ref. 3/83DX1/2TC, 3/83X1/2TC, TR17X1/2TC, TR17DX1/2TC, C153DX1/2TC, C153X1/2TC A 12.7mm ( ”) diameter cutter must be used, which has a 50mm cutting reach and plunge cut facility.

  • Page 7: Panel Butt Connector Bolts

    COMBI 600 Panel Butt Connector Bolts Ref. PC/10/M ( Pack of ten) Panel butt connectors are essential for connecting worktops. They fit into the recess on the underside of the worktop and are tightened with a 10mm spanner. The jig has integral bolt recess slots to allow the bolt recess to be cut in the underside of the worktop, using cutter.

  • Page 8: Assembly

    COMBI 600 ASSEMBLY Location Bush Identification Margin Distance Three location bushes are used in different holes Allow 8.5mm when cutting joints. Measure or in the jig to align the correct template aperture use a batten of this thickness to aid setting out.

  • Page 9: Operation - Setting The Length Stop

    COMBI 600 OPERATION Setting the Length Stop for the Female Cut Carry out the setting operation first: ■ With the label side uppermost fit the length stop bush in one of the holes depending on the width of the worktop. If worktop is...

  • Page 10: Male Joint

    COMBI 600 Male Joint Routing the male part of the Joint Depending on accessibility lay female worktop into position on units. Lay male worktop on top and support other end. Using a pencil draw round the female cut onto the male from underside.

  • Page 11: Cutting The Bolt Recesses

    COMBI 600 Cutting the Bolt Recesses Routing the bolt recess in the female part of the joint When the joint has been tested, proceed as Underside of worktop follows to cut the recess for panel butt connectors bolt on the underside of the worktop.

  • Page 12: Strengthening The Joint

    COMBI 600 Strengthening the Joint If the joint between the worktops is not supported underneath, after some time the joint may ‘sag’ and become misaligned; to reduce this the joint should be reinforced with a loose Underside View tongue or biscuit dowels. The biscuit jointing cutter set can be used with a portable router.

  • Page 13: Spare Parts List

    COMBI 600 COMBI 600 - SPARE PARTS DIAGRAM v1.0 07/2006 COMBI 600 - SPARE PARTS LIST v1.0 07/2006 Qty. Desc. Ref. Combi 600 Jig COMBI/600 Alloy Bush 20mm Dia. BUSH/600 Combi Jig ‘O’ Ring Pack for Bushes (pack of 5)

  • Page 14: Troubleshooting

    COMBI 600 TROUBLE SHOOTING Fault Cause Remedy ■ Joint does not fit correctly Cutter or guide bush is the Check concentricity of cutter at the radius. incorrect diameter or location with guide bush. Cutter 12.7mm bushes are not against diameter with 30mm diameter worktop edge.
  • Page 15 Web: __________________www.trend-uk.com RECYCLABLE © Copyright Trend 2008. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools...
