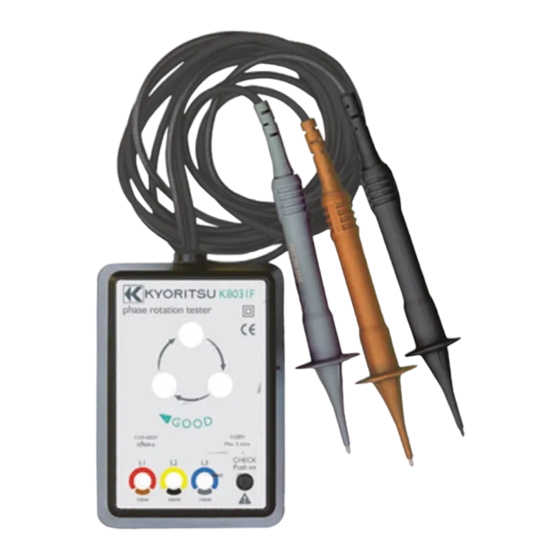

INSTRUCTION MANUAL
PHASE ROTATION TESTER
K8031F

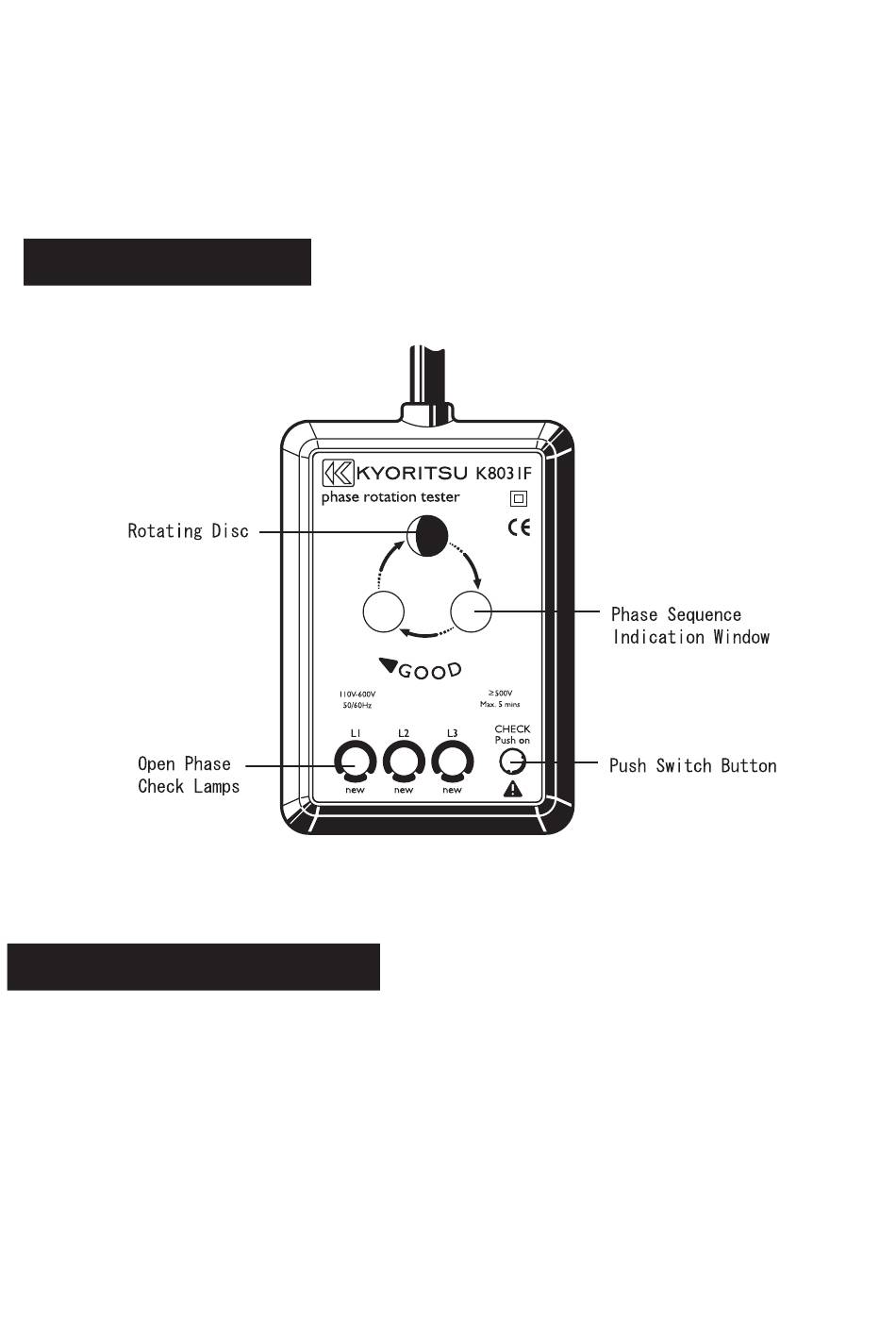

DESIGNATIONS
SAFETY WARNINGS
This instrument has been designed and tested according to IEC
Publication 61010; Safety Requirements for Electronic Measuring
Apparatus. This Instruction manual contains warnings and
safetyrules which must be observed by the user to ensure safe
operation of the instrument and retain it in safe condition.
Therefore, read through these operating instruction before using
the instrument.
Advertisement
Table of Contents
Related Manuals for KYORITSU K8031F
Summary of Contents for KYORITSU K8031F
- Page 1 INSTRUCTION MANUAL PHASE ROTATION TESTER K8031F DESIGNATIONS SAFETY WARNINGS This instrument has been designed and tested according to IEC Publication 61010; Safety Requirements for Electronic Measuring Apparatus. This Instruction manual contains warnings and safetyrules which must be observed by the user to ensure safe operation of the instrument and retain it in safe condition. Therefore, read through these operating instruction before using the instrument.
- Page 2 WARNING ●Read through and understand instructions contained in this manual before starting using the instrument. ●Save and keep the manual handy to enable quick reference whenever necessary. ●Be sure to use the instrument only in its intended applications and to follow measurement procedures described in the manual. ●Be sure to understand and follow all safety instructions contained in the manual. Failure to follow the above instructions ...
- Page 3 WARNINGS 1. Never open the instrument when making measurements. 2. If the instrument shows the following conditions, do not try to make measurements and have the instrument checked for inspection or repair. a) Instrument shows visual damage. b) Test leads are damaged. c) Instrument can not be operated for intended measurements. d) Instrument has been stored for a long period of time under abnormal conditions. e) Instrument has been subjected to severe shocks and vibrations. 3. High voltage may be present with high energy levels. Connect the leads to the system carefully with fingers behind all finger guards. 4. If the all open phase lamps are not lit on, any phase may still be live-be carefull. CAUTIONS 1. Make sure to never apply a voltage more than 600V ACrms.
- Page 4 CAT.Ⅰ: Equipment connected to a mains outlet socket CAT.Ⅱ: Fault category level at a mains socket CAT.Ⅲ: Fault category at distribution board level CAT.Ⅳ: The circuit from the service drop to the power meter and primary over-current protection device (distribution panel). Distribution Board CAT.Ⅲ Incoming supply Interior wiring CAT.Ⅳ CAT.Ⅰ Socket CAT.Ⅱ Socket Equipment CAT.Ⅱ FEATURES ●Two Functions in One Unit K8031F is designed to check phase sequence. Lamps provided on the unit will also tell you if a phase is open. ●Highly Reliable Can check a wide range of 3-phase power source from 110V to 600V. Sealed against dust, the unit ensures trouble-free performance.
- Page 5 ●Functional Design Small, Lightweight and portable. Designed for maximum ease of operation and ruggedness. ●Safety Design No exposed metal parts. Safety features are incorporated including the instant push button switch operation. SPECIFICATIONS Standard : IEC 61010-1 CAT.Ⅲ 600V Pollution degree 2 Voltage : 110V to 600V Frequency : 50Hz / 60Hz Withstand Voltage : 5,550V AC for one minute Time Limit for Continuous Use : Within 5 minutes in case voltage is above 500V. Dimensions : 106 (L) x 75 (W) x 40 (D) mm Weight : Approx. 350g Cord : 1.2m each of Red (L1), Yellow (L2) and Blue (L3) cord Fuse : 0.5A / 600V (F) Accessories : Instruction Manual, Carrying Case OPERATING INSTRUCTIONS (1) Connect ...
- Page 6 (3) Make sure that all of the three lamps for phase check are on. If so, there is no open phase. When any of the three lamps is Not on there is open phase. Open phase check Open phase on terminal Lamp "L1" is not on where Red alligator clip is connected. Open phase check Open phase on terminal Lamp "L2" is not on where Yellow alligator clip is connected. Open phase check Open phase on terminal Lamp "L3" is not on where Blue alligator clip is connected. *When the open phase check lamps are not on the rotating disc does not turn. (4) Check the rotating direction of the inside disc through the phase sequence indication window.
