Inspection

● Inspect compressor prior to any use.
● Check for external damage that might have occurred during transit. Check for possible damage from
transit and test the pulley by turning it freely with your hands. Be careful of moving parts.
● Report any damage to delivery carrier immediately.
Do not operate unit if damaged during shipping, handling or use. Damage may result
in bursting and cause injury or property damage.

Description

14
10
9
8
5
2
3
fig 1

Get to know your compressor

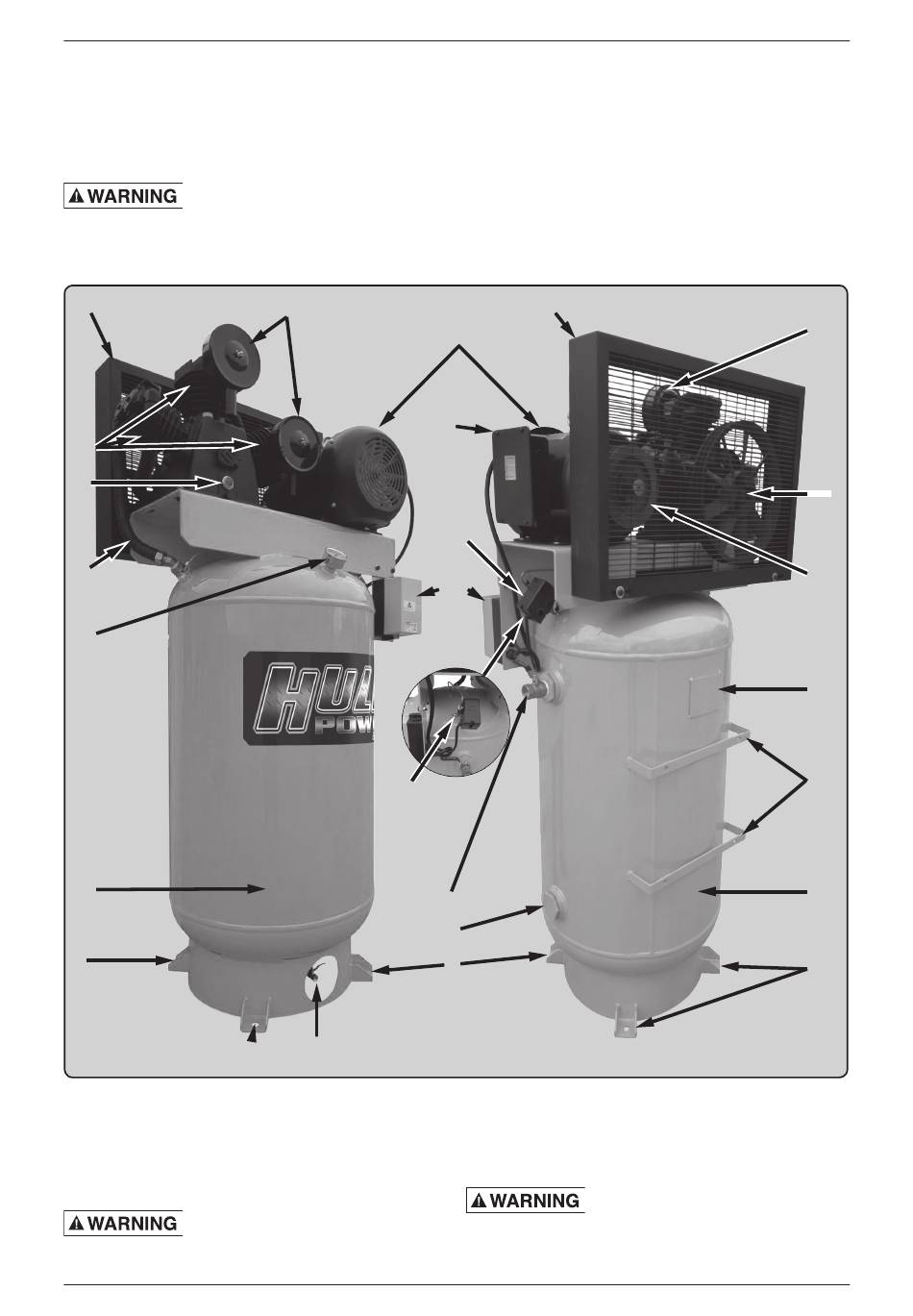

Please refer to fig 1 and 2.
1. TANK DRAIN VALVE
(located on bottom of tank) - The tank drain
valve can be opened to allow moisture and
compressed air to be released from the air tank.
The tank drain valve should
always be opened slowly to
avoid damage to equipment and possible injury.
7
4
3
1
14
11
13
6
12
21
20
3
2. AIR TANK -
eighty gallon (302.8 liters) tank
3. FOOT
Allows fastening to the floor, reduces
compressor tip danger, vibration and movment.
1/4" thick vibration isolator must
be used.
4. SAFETY VALVE -
The safety pressure relief valve automatically
relieves pressure from the air tank in the event
3
Stationary Air Compressor
HI05V08Y1/HS05V08Y1 man
7
15
16
17
18
2
3
