Operating Instructions
EMAX designs and manufactures products for safe
operation. However, operators and maintenance per-
sons are responsible for maintaining safety. All safety
precautions are included to provide a guideline for
minimizing the possibility of accidents and property
damage while equipment is in operation.
Keep these instructions for reference.

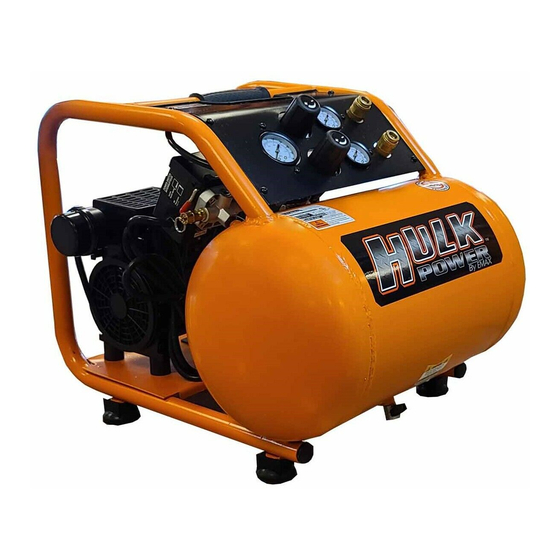

Portable Air Compressor
Silent Air
HP01P005SS
Model # :
815002013961
UPC:
EMAX Compressor
1000 Cass Dr., Clayton, OH 45315 USA
866.294.4153
info@emaxcompressor.com
Fax: (937) 540-1157
HP01P005SS man v.170804
Advertisement
Table of Contents
Related Manuals for Emax HULK Silent Air
Summary of Contents for Emax HULK Silent Air
- Page 1 Operating Instructions EMAX designs and manufactures products for safe operation. However, operators and maintenance per- sons are responsible for maintaining safety. All safety precautions are included to provide a guideline for minimizing the possibility of accidents and property damage while equipment is in operation.
-
Page 2: Table Of Contents
HULK Power Air Compressors Contents Model Specifications ………………………… 2 Installing the air filter ………………… 8 Description ……………………………………… 3 Operation ………………………………………… 8 Get to know your compressor ………… 3 Before operating your new air compressor: ………………………………… 8 Safety Information …………………………… 4 General Overview ………………………………... -
Page 3: Description
Silent Air Series Description fig 1 Get to know your compressor Please refer to fig 1. valve end to check that it is working properly. 1. TANK DRAIN VALVE 5. RESERVOIR AIR PRESSURE GAUGE - (located on bottom of tank) - The tank drain Indicates pressure of compressed air built up in valve can be opened to allow moisture and the tank. -
Page 4: Safety Information
HULK Power Air Compressors Always make sure that the the State of California to cause cancer and birth compressor power switch is in defects or other reproductive harm. Wash hands the OFF position before performing any after handling. maintenance or plugging the compressor into a Basic Guidelines power supply. -
Page 5: Personal Protective Equipment
Silent Air Series welding, drilling or other modifications. Such 2. Allow sufficient space around compressor for modifications may weaken the air tank and maintenance access and adequate airflow. cause a hazardous condition. Mount unit leaving a minimum of 15 inches (38 cm) of clearance. -
Page 6: Operation
HULK Power Air Compressors 9. If the tool is equipped with three-pin plug, it as death or serious injury may result. should be plugged into a three-pin electrical 7. Make sure to provide adequate ventilation socket. Never remove the ground pin. while operating the compressor. -
Page 7: Air Tool Cautions
Silent Air Series 19. The air pressure switch is set at the factory strict adult supervision. for optimum performance of your equipment. 6. Store idle tools out of the reach of children and Never attempt to bypass or remove this switch untrained persons. -
Page 8: Connect To Power Source
HULK Power Air Compressors used (C, fig 5) it must be attached to the metal screw check that all pipes and hoses are firmly of the receptacle. connected. ● Do not use the air compressor if any damage is The use of an adaptor plug is found. -
Page 9: Attaching An Air Hose
Silent Air Series cord is properly wired and in good electrical Pressure Switch condition. 2. Check that the pressure switch is pointed up, ● Maximum length of extension cord should be in the OFF position (fig 9.0). 50 feet (15 meters). Minimum wire size of extension cord should be 12 gauge. -
Page 10: Shutting Off Your Compressor
HULK Power Air Compressors Maintenance Shutting off your compressor 1. Move the pressure switch clockwise to the OFF Daily position (fig 9.0). ● Before each use, 2. Unplug the compressor from the electical power. 3. If not draining the tank, reduce tank pressure 1. -
Page 11: Troubleshooting
Silent Air Series Troubleshooting Always inspect the compressor before use, and make sure it is in good working condition. Make sure all air vents are clear. Check the power cable to make sure it is intact and free from cracks, bare wires etc. Avoid using solvents when cleaning plastic parts, most plastics are susceptible to damage from the various types of commercial solvents. -
Page 12: Parts List
HULK Power Air Compressors Parts List Description Qty. Description Qty. Bearing Filter cover Outside spring Filter element Capacitor Filter base Bolt Bolt Capacitor cover Washer Bolt superseded Spring washer O-ring Gasket Connecting pipe Power cord Shroud Bolt Metal hose Cylinder head Safety valve Rubber mat Pressure gauge... -
Page 13: Schematic Drawing
Silent Air Series Schematic Drawing HP01P005SS man v.170804... -
Page 14: Warranty Statement
HULK Power Air Compressors Warranty Statement HULK makes every effort to ensure that this product meets high quality and durability standards. HULK warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials.
