Operating Instructions
EMAX designs and manufactures products for safe
operation. However, operators and maintenance per-
sons are responsible for maintaining safety. All safety
precautions are included to provide a guideline for
minimizing the possibility of accidents and property
damage while equipment is in operation.
Keep these instructions for reference.

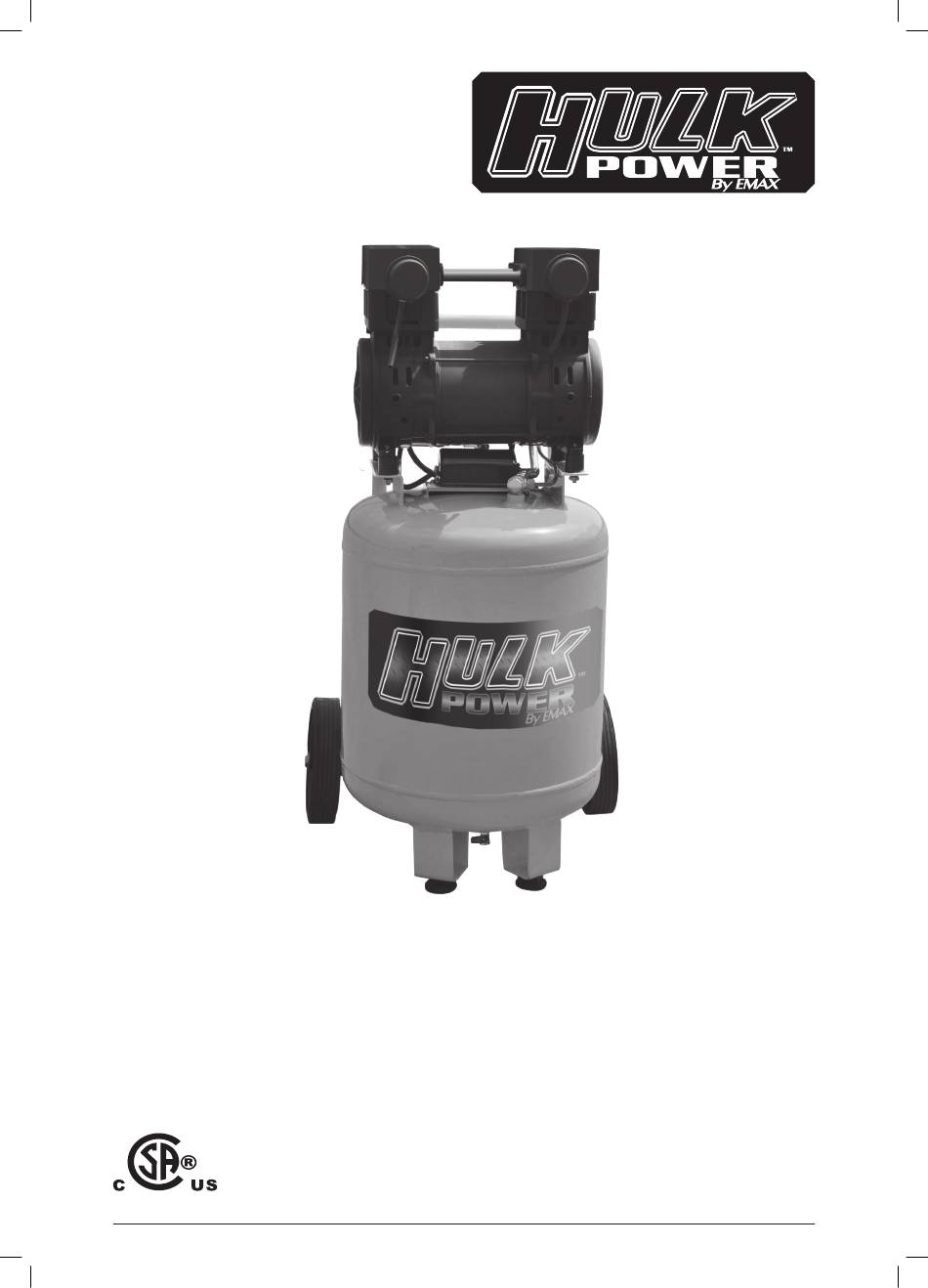

Portable Air Compressor
Silent Air
HP02P010SS
Model # :
815002014005
UPC:
EMAX Compressor
1000 Cass Dr., Clayton, OH 45315 USA
866.294.4153
info@emaxcompressor.com
Fax: (937) 540-1157
HP02P010SS man v.170809
Advertisement
Table of Contents
Related Manuals for Emax Hulk Power Silent Air HP02P010SS
Summary of Contents for Emax Hulk Power Silent Air HP02P010SS
- Page 1 Operating Instructions EMAX designs and manufactures products for safe operation. However, operators and maintenance per- sons are responsible for maintaining safety. All safety precautions are included to provide a guideline for minimizing the possibility of accidents and property damage while equipment is in operation.
-
Page 2: Table Of Contents
HULK Power Air Compressors Contents Model Specifications ………………………… 2 Installing the air filter ………………… 8 Description ……………………………………… 3 Operation ………………………………………… 8 Get to know your compressor ………… 3 Before operating your new air compressor: ………………………………… 8 Safety Information …………………………… 4 General Overview ………………………………... -
Page 3: Description
Silent Air Series Description fig 1 properly. Get to know your compressor Please refer to fig 1, 2 and 3. 5. RESERVOIR AIR PRESSURE GAUGE - 1. TANK DRAIN VALVE Indicates pressure of compressed air built up in (located on bottom of tank) - The tank drain the tank. -
Page 4: Safety Information
HULK Power Air Compressors Safety Information 7. AIR FILTER - Ensures the air being pressurized is free of This manual contains very important information to know and understand. This is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help understand this information, observe the following: Danger indicates an imminently hazardous situation which, if not... -
Page 5: Basic Guidelines
Silent Air Series Basic Guidelines 5. If the air tank develops a leak, replace it immediately. Never repair, weld or make modifications to the air tank or its attachments. 1. Allow only trained, authorized persons who have read and understood these operating 6. -
Page 6: Electrical Safety
HULK Power Air Compressors 3. Use shims to level compressor if installation refrigerators. There is an increased risk of area is not flat. This will avoid excessive electric shock if your body is grounded. vibration and premature pump wear. 11. To reduce the risk of electrical shock or injury, DO NOT install compressor in do not expose tool to moisture. -
Page 7: Air Tool Cautions
Silent Air Series icer systems with antifreeze compound, shut 20. Compressed air from the unit may contain off compressor and allow it to cool. Keep carbon monoxide. Air produced is not suitable sparks, flames and other ignition sources for breathing purposes. away and DO NOT permit smoking in the 21. -
Page 8: Power Source Connection
HULK Power Air Compressors Total Extension Cord Length Feet Meters Feet Meters Feet Meters Feet Meters Amp Rating 3-10 amp 18 ga. 16 ga. 14 ga. 14 ga. 10.1 - 12 amp 16 ga. 16 ga. 14 ga. 14 ga. 12.1 - 16 amp 14 ga. -
Page 9: General Overview
Silent Air Series ● Depending on the CFM draw of the tools being air coupler, your compressor is ready to accept air operated, your new air compressor can be used hoses equipped with 1/4" male air connectors (fig 4). for operating paint sprayers, air tools, grease Use only air hoses rated for use guns, airbrushes, caulking guns, abrasive with 115 psi air pressure or... -
Page 10: Adjusting The Air Pressure
HULK Power Air Compressors 5. Turn the pressure switch on, moving the lever Cold Weather Starting to the AUTO position (fig 8.1). Temperatures below freezing (32 °F / 0 °C) cause the metal parts of your air compressor to contract and that makes starting more difficult. -
Page 11: Troubleshooting
Silent Air Series Troubleshooting Always inspect the compressor before use, and make sure it is in good working condition. Make sure all air vents are clear. Check the power cable to make sure it is intact and free from cracks, bare wires etc. Avoid using solvents when cleaning plastic parts, most plastics are susceptible to damage from the various types of commercial solvents. -
Page 12: Parts List
HULK Power Air Compressors Parts List Description Qty. Description Qty. 39 Pad Filter cover Filter element 40 Plastic head cover Filter base 41 Capacitor cover 42 Hand grip O-ring Gasket 43 Elbow Joint pipe 44 Handle Bolt 45 Tube 46 Lock ring Cylinder head Rubber mat 47 Nut... -
Page 13: Schematic Drawing
Silent Air Series Schematic Drawing HP02P010SS man v.170809... -
Page 14: Warranty Statement
HULK Power Air Compressors Warranty Statement HULK makes every effort to ensure that this product meets high quality and durability standards. HULK warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials.
