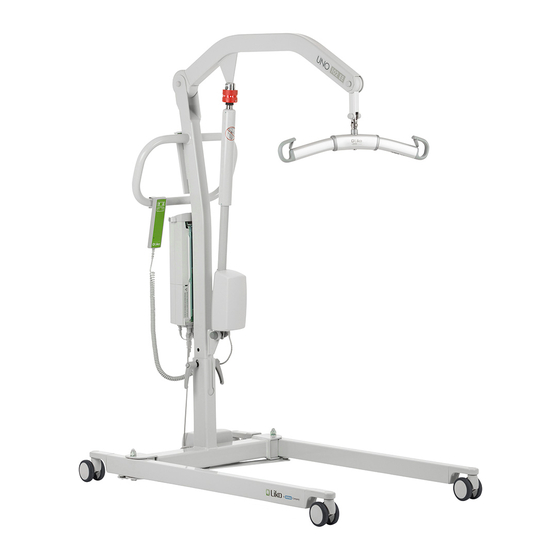

Uno™102
Mobile lift
Instructions for Use
Uno 102 EE
Prod. No. 2010004
Uno 102 mobile lift has electric raising and lowering of the
lift arm. Uno mobile lift is intended mainly for use in Post
Acute Care facilities like nursing homes and other care
homes in the most common lifting situations, for instance,
transfers between bed and wheelchair, to and from toilet
and for lifting to and from the floor.
Uno mobile lift has three alternative height settings, in
order always to provide the optimum lifting height.
In this document, the person being lifted is referred to as the patient, and the person helping them is referred to as the
caregiver.
IMPORTANT!
Lifting and transferring a patient always involves a certain level of risk. Read the instructions for use for both the patient lift and
lifting accessories before use. It is important to completely understand the contents of the instructions for use. The equipment
should only be used by trained personnel. Ensure that the lifting accessories are suitable for the lift used. Exercise care and caution
during use. As a caregiver, you are always responsible for the patient's safety. You must be aware of the patient's ability to make it
through the lifting situation. If something is unclear, contact the manufacturer or supplier.
7EN150104 Rev. 8
ENGLISH 2020
Product Description
The middle position is the standard setting; the lowest is
suitable for, for instance, lifting children and lifting to/from
the floor. Select the highest position for lifting extra high,
for instance, to beds and gurneys with fixed heights.
Individual fitting of the sling and other lifting accessories is
of utmost importance for function and safety when using
the lift.
Advertisement
Table of Contents
Related Manuals for Liko Uno 102
Summary of Contents for Liko Uno 102
- Page 1 Uno 102 EE Prod. No. 2010004 Product Description Uno 102 mobile lift has electric raising and lowering of the The middle position is the standard setting; the lowest is lift arm. Uno mobile lift is intended mainly for use in Post...
-
Page 2: Table Of Contents
Table of Contents Symbol Description .......................... 3 Safety Instructions ........................... 4 Definitions ............................5 Technical Data ..........................5 Dimensions ............................6 EMC Table ............................7 Assembly ............................10 Operation ............................12 Charging the Batteries ........................14 Maximum Load ..........................15 Recommended Lifting Accessories .................... -
Page 3: Symbol Description
Symbol Description These symbols can be found in this document and/or on the product. Symbol Description For indoor use only. The product has extra protection against electric shock (Insulation Class II). Protection level against electric shock Type B. Warning; this situation requires extra care and attention. Read instructions for use before use. -
Page 4: Safety Instructions
Incorrect attachment of sling to slingbar may cause severe injury to the patient. Uno 102 EE mobile lift has been tested by an accredited testing institute No modification of this product is allowed. Use of the product adjacent to other equipment should be avoided because it could result in improper operation. If such use is necessary, observe and verify that the other equipment is operating normally. -
Page 5: Definitions
Definitions Lift arm Flexlink Latches Sling bar Outer tube Motor for lift arm Product label Front wheels Base 10. Rear wheels with brakes 1 1. Motor for base-width adjustment 12. Locking handle 13. Cable for hand control 14. Control box 15. Battery 16. -
Page 6: Dimensions
Measurement Table Measurements in mm Model Max. Min. Max. Min. max. min. max. min. 2015 1435 1105 1790 Uno 102 1965 1385 1255 920 730 590 1090 690 1055 1740 370 185 495 1925 1345 1015 1700 Measurements in inch. -
Page 7: Emc Table
EMC Table Guidance and manufacturer’s declaration – electromagnetic emissions The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that they are used in such an environment. ”Essential performance according to the manufacturer: The product shall not move unintentionally while being submitted to disturbances.”... - Page 8 Guidance and manufacturer’s declaration – electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. ”Essential performance according to the manufacturer: The lift shall not move unintentionally while being submitted to disturbances.”...
- Page 9 Guidance and manufacturer’s declaration – electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. ”Essential performance according to the manufacturer: The product shall not move unintentionally while being submitted to disturbances.”...
-
Page 10: Assembly
Assembly Before assembly, make sure you have the following parts: • Lift mast with lift arm, control box, motor for lift arm, • Battery flexlink, locking handles and sling bar • Bag containing Instruction for use, Quick Reference • Base (including motor for width adjustment) Guide, charger cable and charger extension cable. - Page 11 7. Hang the hand control on the handle. 8. Reset the emergency stop by turning the button clockwise. 9. A) Connect the extension cable for the charging cable to the control box. B) Insert the extension cable in the tension clip underneath the control box. C) Connect the charging cable to the extension cable.
-
Page 12: Operation
Operation Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the lift, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. Operating To activate the emergency stop: When raising or lowering the lift arm:... - Page 13 Figure 2. Figure 3. Figure 1. Installation of Latches Lift correctly! After installation, ensure that the Before each lift, make sure that: spring loaded latches is taut against – the Sling loops at opposite sides of the Sling are at the same height the sling bar and moves freely in the –...
-
Page 14: Charging The Batteries
Charging the Battery Indications for charging the battery In the event of low battery capacity, a signal from the control box will sound and the indicator (A) on the hand control will light. When this happens, the battery must be charged as soon as possible. -
Page 15: Maximum Load
For the assembled lift unit, the maximum load is always the lowest maximum load rating for any of the components. For example, a Uno 102 mobile lift which is approved for 175 kg (385 lbs) can be equipped with a lifting accessory which is approved for 300 kg (660 lbs). - Page 16 Quick-Release Hook Liko™ Quick-Release Hooks is a system for quick change of lifting accessories on Liko’s mobile and stationary lifts. Uno mobile lift must be equipped with the Q-link 13 in order to be used with the Quick-release Hook. Q-link 13...
-
Page 17: Simple Troubleshooting
Troubleshooting The lift do not work up/down with 1. Make sure that the emergency stop button has not been activated Hand Control. (shall not be pressed in). The base-width adjustment 2. Check the battery capacity. doesn’t work (in/out) with the 3. -
Page 18: Recycling Instructions
Recycling Instructions Lead battery (Pb) Waste of Electrical and Electronic Equipment (WEEE). Metals Old batteries are to be deposited at the nearest recycling station or given to personnel authorized by Hillrom. Hillrom evaluates and provides guidance to its users on the safe handling and disposal of its devices to aid in the prevention of injury, including, but not limited to: cuts, punctures of the skin, abrasions, and any required cleaning and disinfection of the medical device after use and prior to its disposal. - Page 19 • Warm water • To find Cleaning / Disinfectants compatible or not compatible for use on Liko™ products, follow the "Application of commonly used Cleaning / Disinfectants on Liko products" in this document. Prepare the Unit for Cleaning and Disinfecting: Unplug mains (AC power source) before cleaning and disinfection.
- Page 20 Scale (if applicable) Damaged items should be replaced! Step 2: Disinfection: 1. For the use of suitable disinfectants see "Application of commonly used Cleaning / Disinfectants on Liko products” in this document. 2. Follow the manufacturer's instructions. 3. Make sure all surfaces remain wet with the cleaner/disinfectant for the specified contact time. Rewet surfaces with a new wiping cloth as necessary and per the manufacturer's instructions.
- Page 21 7EN150104 Rev. 8 • 2020 www.hillrom.com...
-
Page 22: Inspection And Maintenance
Hill-Rom offers the opportunity to enter into service contracts for the maintenance and regular inspection of your Liko product. Expected Life Time The product has an expected service life of 10 years when correctly handled, serviced and inspected in accordance with Liko’s instructions. Transport and Storage During transport, or if the lift is not going to be used for a long time, the emergency stops should be engaged.
