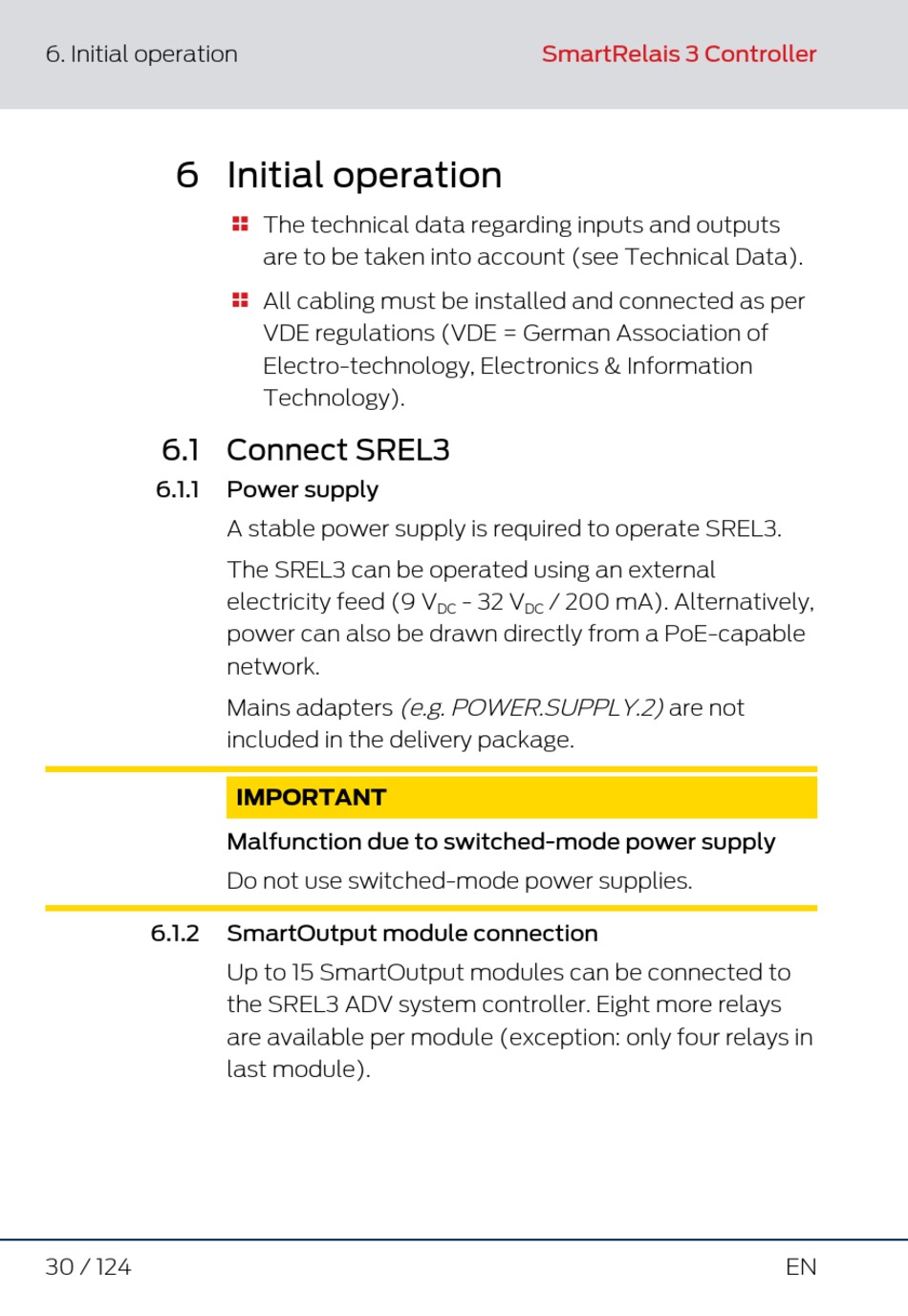

6. Initial operation

6 Initial operation

6.1 Connect SREL3

6.1.1
6.1.2
30 / 124
The technical data regarding inputs and outputs

are to be taken into account (see Technical Data).
All cabling must be installed and connected as per

VDE regulations (VDE = German Association of
Electro-technology, Electronics & Information
Technology).

Power supply

A stable power supply is required to operate SREL3.
The SREL3 can be operated using an external
electricity feed (9 V
power can also be drawn directly from a PoE-capable
network.
Mains adapters (e.g. POWER.SUPPLY.2) are not
included in the delivery package.
IMPORTANT
Malfunction due to switched-mode power supply
Do not use switched-mode power supplies.

SmartOutput module connection

Up to 15 SmartOutput modules can be connected to
the SREL3 ADV system controller. Eight more relays
are available per module (exception: only four relays in
last module).
SmartRelais 3 Controller
- 32 V / 200 mA). Alternatively,
DC DC
EN
