4. Housing

4 Housing

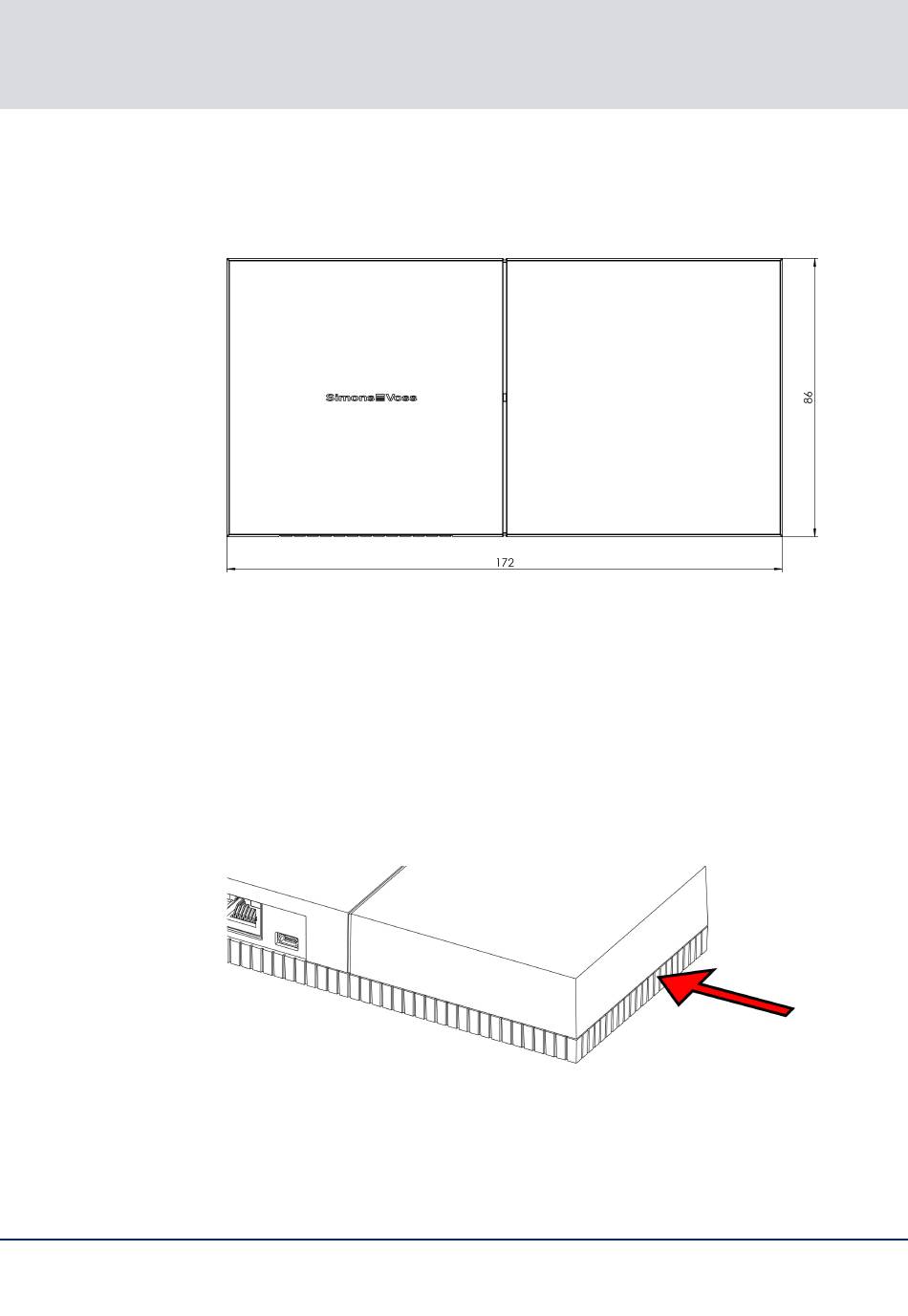

4.1 Images and dimensions

4.2 Dimensions of lower housing shell

4.3 Opening the housing lid

26 / 124
(dimensions in mm)
You do not need a tool to open the upper housing
section. Apply slight pressure to the centre of the base
plate on the left- or right-hand side and then you can
remove the upper section.
SmartRelais 3 Controller
EN
