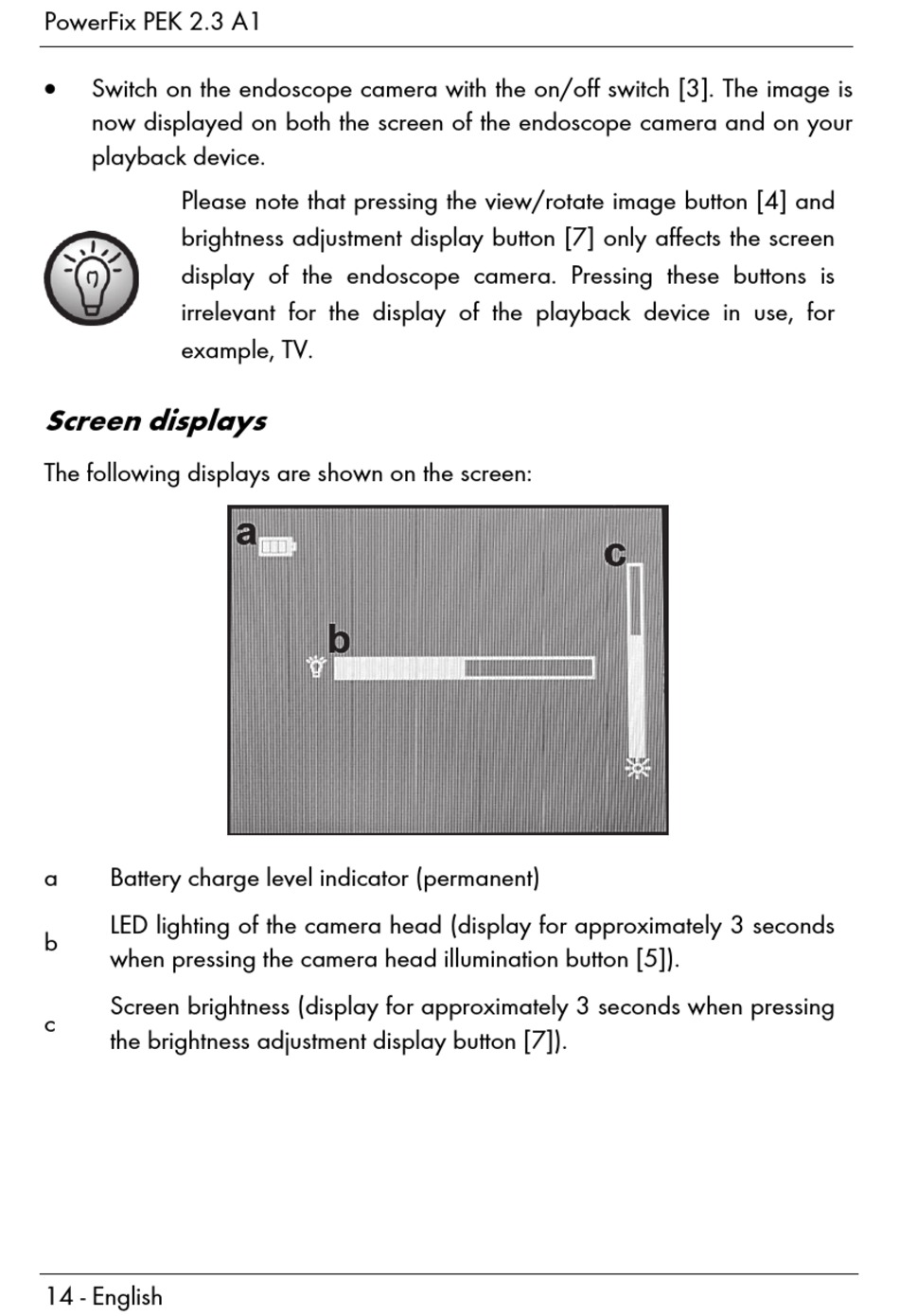

Switch on the endoscope camera with the on/off switch [3]. The image is
now displayed on both the screen of the endoscope camera and on your
playback device.
Please note that pressing the view/rotate image button [4] and
brightness adjustment display button [7] only affects the screen
display of the endoscope camera. Pressing these buttons is
irrelevant for the display of the playback device in use, for
example, TV.

Screen displays

The following displays are shown on the screen:
a Battery charge level indicator (permanent)
LED lighting of the camera head (display for approximately 3 seconds
b
when pressing the camera head illumination button [5]).
Screen brightness (display for approximately 3 seconds when pressing
c
the brightness adjustment display button [7]).
