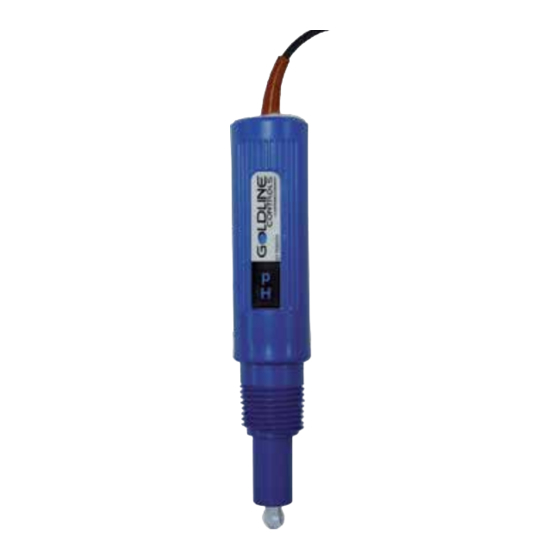

pH Upgrade Kit
For the AquaRite™+
Owner's Manual
To prevent potential injury and to avoid unnecessary service
calls, read this manual carefully and completely.
SAVE THIS INSTRUCTION MANUAL
Hayward Pool Products (Australia) Pty Ltd.
Melbourne-Sydney-Brisbane-Perth
Email: sales@hayward-pool.com.au | Website: www.hayward-pool.com.au
PO Box 4384 | Dandenong South VIC 3164
ABN 66 083 413 414
Sales Contact Ph: 1300POOLS1 Fax: 1300POOLS2
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
30-LITINSD007RB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hayward AquaRite +
Summary of Contents for Hayward AquaRite +
- Page 1 To prevent potential injury and to avoid unnecessary service calls, read this manual carefully and completely. SAVE THIS INSTRUCTION MANUAL Hayward Pool Products (Australia) Pty Ltd. Melbourne-Sydney-Brisbane-Perth Email: sales@hayward-pool.com.au | Website: www.hayward-pool.com.au PO Box 4384 | Dandenong South VIC 3164...
-
Page 2: Electrical Hazard
WARNING – Use only genuine Hayward WARNING – To reduce the risk of electric replacement parts. shock, do not use an extension cord to connect the device to the mains. - Page 3 INTRODUCTION The pH Upgrade Kit is an optional accessory to the Hayward AquaRite+ Chlorinator. The kit assesses the pH level of the pool’s water and automatically calculates and injects the necessary amount of acid needed to bring the body of water to ideal acidity levels. Once the pH...
-
Page 4: Installation
» Hydrochloric Acid (HCL) diluted to 16.5% for pools or 11% for Spas or Pool/Spa combinations. Hayward recommend the following when the system is used with Hydrochloric Acid: » For pools, Hydrochloric Acid diluted to 16.5% must be used. This is commercially available already diluted or can be achieved by diluting commercially available 33% HCL at a rate of 1 part HCL to 1 part water. - Page 5 » Connect the BNC connector on the pH probe to the pH BNC input on the AquaRite+ (Shown above) » Fit the pH Chip Set in the terminal labelled pH on the AquaRite+ PCB USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 5 ®...
-
Page 6: Caution - Risk Of Electric Shock
Pull Unscrew Dead Front Panel: Remove the six (6) screws fastening the panel to the unit. Once all loose, lift the panel off the unit to access the PCB. Unscrew Unscrew USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 6 ®... - Page 7 5 - 6 SELV 12 V a.c. 50 W Aux 3 Auxiliary dry contact 7 - 8 Dry contact Aux 4 Auxiliary dry contact (or heating control). 9 - 10 Dry contact USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 7 ®...
-
Page 8: Cable Gland Installation
After this, access to the PCB is no longer required and the Dead Front Panel can be screwed back on. Ensure that the gasket is fitted correctly before securing the Dead Front Panel and then reinstall the display module. Pins Facing To The Left Insert pH Chip Set Here USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 8 ®... -
Page 9: Water Chemistry
To remove salt, drain the pool down and replenish with fresh water. Repeat until the desired level is achieved. Do not add stabiliser to indoor pools. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 9... - Page 10 Quantity of Stabiliser (CYANURIC ACID in kg) Required for 40 ppm Volume of water in the pool in Litres (L) Current Stabiliser 30,000 37,500 45,000 52,500 60,000 67,500 75,000 82,500 90,000 97,500 105,000 112,500 120,000 127,500 135,000 142,500 150,000 Level (ppm) USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 10 ®...
-
Page 11: Saturation Index
The water must be balanced manually BEFORE the device is started up. The following table summarises the ideal chemical levels recommended by Hayward. Your water should be checked regularly to maintain these ideal levels in order to minimise surface corrosion, scaling or deterioration and to ensure maximum performance from your AquaRite+ Chlorinator. -
Page 12: Operation
On small bodies of water, if pH set-point overshoot is occurring, the pH pump off-time could be increased to allow more time for the acid to mix before introducing more to the body of water. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 12 ®... - Page 13 (without buffer solution) keys to adjust the reading to – recommended only for your reference value (pool shop adjusting small deviations in pH test value or test from a readings. photometer test instrument). USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 13 ®...
-
Page 14: Troubleshooting
LIMITED WARRANTY Hayward Pool Products (Australia) warrants that its products are free from defects in materials and manufacture for 12 months from date of supply by Hayward Pool Products (Australia) plus 90 days to allow for installation and supply (unless otherwise specified). - Page 15 Paying the costs of repairing the Goods. Claims made for warranty, labour or infield support will not be accepted by Hayward Pool Products unless evidence is provided that installation has been completed in accordance with standard warranty conditions. Please refer to specific program document for details.
- Page 16 Hayward Pool Products (Australia) Pty Ltd. Melbourne-Sydney-Brisbane-Perth Email: sales@hayward-pool.com.au | Website: www.hayward-pool.com.au PO Box 4384 | Dandenong South VIC 3164 ABN 66 083 413 414 Hayward and AquaRite are registered trademarks of Hayward Industries, Inc. Sales Contact Ph: 1300POOLS1 Fax: 1300POOLS2...
