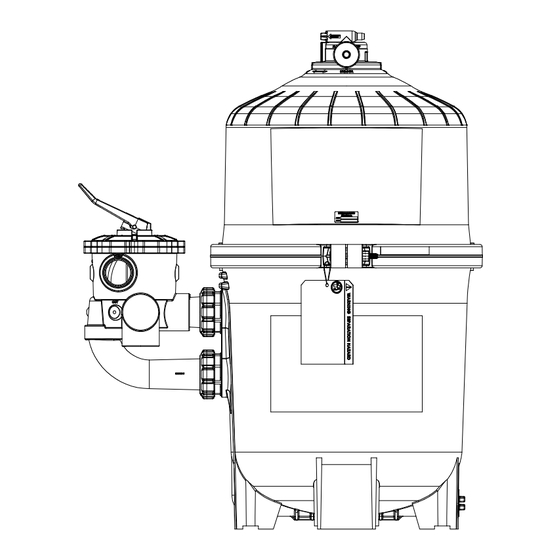

Pro-Grid
Vertical DE Filter Series
Owner's Manual
EFFECTIVE
MODEL
FILTRATION RATE
FT
M
2
2
DE2420
24
2.2
DE3620
36
3.4
DE4820
48
4.5
DE6020
60
5.6
DE7220
72
6.7
MAXIMUM WORKING PRESSURE FOR ALL MODELS 50 PSI (3.45 BAR)
Hayward Industries
1415 Vantage Park Dr., Suite 400
Charlotte, NC 28203
Phone: (908)-355-7995
www.hayward.com
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Contents
Safety Instructions..................1
Overview................................3
Installation.............................3
System Start-Up.....................4
Operation..............................5
Winterization......................8
Replacement Parts.................9
Maintenance.......................11
Warranty...............................12
RECOMMENDED
DESIGN FLOW RATE
AMOUNT OF D.E.
GPM
LPM
LBS
48
182
3.0
72
273
4.5
96
363
6.0
120
454
7.5
144
545
9.0
ISDE2423EF RevE
KGS
1.4
2.0
2.7
3.4
4.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro-Grid DE Series and is the answer not in the manual?

Questions and answers

Luis Caminero
June 2, 2025

can filter W3DE6020 operates with a 2 HP pump?

1 comments:
Mr. Anderson
June 2, 2025

YES. The Hayward Pro-Grid DE Series filter W3DE6020 can operate with a 2 HP pump, as it is a commercial-grade filter designed for in-ground pools and compatible with high flow rates typically produced by 2 HP pumps. Proper sizing based on flow rate and system design is still recommended.

This answer is automatically generated

Summary of Contents for Hayward Pro-Grid DE Series

  • Page 1: Table Of Contents

    FILTRATION RATE AMOUNT OF D.E. DE2420 DE3620 DE4820 DE6020 DE7220 MAXIMUM WORKING PRESSURE FOR ALL MODELS 50 PSI (3.45 BAR) Hayward Industries 1415 Vantage Park Dr., Suite 400 Charlotte, NC 28203 Phone: (908)-355-7995 www.hayward.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 2: Important Safety Instructions

    • Follow all safety and operation instructions. • Do not operate water circulation system if a system component is assembled improperly, damaged, missing, or not a genuine Hayward component. • Before performing maintenance on the water circulation system, verify all system and pump controls are in OFF position and filter manual air relief valve is in the OPEN position.
  • Page 3 Failure to keep suction outlet components clear of debris, such as leaves, dirt, hair, paper and other material can result in an increased potential for suction entrapment. Suction outlet covers and grates have a finite life. They should be inspected frequently and replaced within specified life. For warranty information, please go to www.hayward.com/warranty. SAVE THESE INSTRUCTIONS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 4: Overview

    Model (MAR) 26" 66 cm DE2420 32.0 DE3620 34.1 DE4820 40.1 Upper Filter Body DE6020 46.1 DE7220 52.0 Clamp To Pool Side 5" Lower Filter Body From Pump 12.5" Drain 18" Plug 46 cm USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 5: Installation Steps

    Use ONLY Hayward clamp system components; DEX2421JKIT clamp system, DEX2421J2 nut/bolt assembly, DEX2422Z2 metal reinforced seal. Non- Hayward clamp components may fail in use and cause explosive component separation. Verify that upper and lower filter bodies are properly secured with the filter body clamp.
  • Page 6: Operation

    (D) WASTE – To bypass filter for draining or lowering water level and for vacuuming heavy debris directly to WASTE. (E) RECIRCULATE – Water is re-circulated through the pool system, bypassing the filter. (F) CLOSED – Shuts off flow from pump to filter. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 7: Manual Cleaning

    Before removing the element cluster assembly we recommend hosing it down with a strong stream from a garden hose or preferably with the Hayward cleaning wand (EC2024). Be sure the drain plug is not in place or the drain valve is open. Remove as much of the dirty D.E.
  • Page 8 Place the metal reinforced seal on the lower filter body (Figure 4). Place the up- per filter body on the Hayward DEX2422Z2 metal reinforced seal and lower filter body in a position which allows all operation and safety labels to be clearly visible and the upper body to be centered on the lower filter body.
  • Page 9: Winterization

    Follow directions under FILTER DISASSEMBLY INSTRUCTIONS Then REMOVING CARTRIDGES per instructions Reassemble per the instructions on Page 7. Be sure to leave the drain plug unattached during the winter season to avoid cracking the filter body. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 10: Replacement Parts

    Replacement Parts USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 11 SP0740DE *Label Pack: Includes all Warning and Operation Vari-Flo Valve 1 ½” NPT SP0710XR50 Labels, Hang Tag, Wire Tie, and Owner's Manual. Vari-Flo Valve 2” NPT SP0715XR50 (Optional) Slide Valve 2” SKT SP0410X502S (Optional) USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 12: Maintenance

    Maintenance Service and Repairs Consult your local authorized Hayward dealer or service center. No returns may be made directly to the factory without the expressed written authorization of Hayward Pool Products. Pool Chemistry SUGGESTED POOL CHEMISTRY LEVELS 7.2 to 7.8...
  • Page 13: Warranty

    The Hayward Pool products warranty does not apply to components manufactured by others. For such products, the warranty established by the respective manufacturer will apply. The express limited warranty above constitutes the entire warranty of Hayward Pool Products with respect to its pool products and is in lieu of all other warranties expressed or implied, including warranties of merchantability or fitness for a particular purpose.
  • Page 14 Hayward Industries, Inc. © 2024 Hayward Industries, Inc. All other trademarks not owned by Hayward are the property of their respective owners. Hayward is not in any way affiliated with or endorsed by those third parties. For patent information, refer to www.hayward.com/patents.
  • Page 15: Manuel Du Propriétaire

    PRESSION D’UTILISATION MAXIMALE POUR TOUS LES MODÈLES : 3,45 BARS (50 PSI) Hayward Industries 1415 Vantage Park Dr., Suite 400 Charlotte, NC 28203 Téléphone : (908)-355-7995 www.hayward.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS UTILISEZ UNIQUEMENT DES PIÈCES DE RECHANGE D’ORIGINE HAYWARD...
  • Page 16: Consignes De Sécurité

    (OFF) et que le purgeur manuel est en position OUVERTE. • Utiliser UNIQUEMENT les composants pour collier de serrage Hayward : collier de serrage DEX2421JKIT, boulon/écrou DEX2421J2 et joint à renfort métallique DEX2422Z2. Des composants autres que ceux proposés par Hayward pourront se briser et se séparer violemment. •...
  • Page 17 Les couvercles et grilles des bouches d'aspiration ont une durée de vie utile déterminée. Les inspecter fréquemment et les remplacer dans les limites de la durée de vie utile prévue. Pour plus d’informations sur la garantie, veuillez consulter www.hayward.com/warranty. CONSERVEZ CES INSTRUCTIONS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS UTILISEZ UNIQUEMENT DES PIÈCES DE RECHANGE D’ORIGINE HAYWARD...
  • Page 18: Aperçu

    DE2420 32,0 supérieure DE3620 34,1 du filtre DE4820 40,1 DE6020 46,1 DE7220 52,0 Collier de Serrage Vers la Piscine Côté 5" Partie Inférieure Depuis du Filtre Pompe 12.5" Bonde 18" 46 cm UTILISEZ UNIQUEMENT DES PIÈCES DE RECHANGE D’ORIGINE HAYWARD...
  • Page 19: Étapes D'installation

    Utilisez UNIQUEMENT des composants de collier de serrage Hayward : collier de serrage DEX2421JKIT, boulon/écrous DEX2421J2, joint à renfort métal- lique DEX2422Z2. Des composants autres que ceux proposés par Hayward pourront se briser et provoquer une séparation violente des éléments. Vérifiez que le collier de serrage assure fermement la jonction de la partie haute et la partie basse du filtre.
  • Page 20: Opération

    (E) RECIRCULATE (recirculation) – L’eau est remise directement dans le flux de la piscine, sans passer par le filtre. (F) CLOSED (fermé) – Coupe le flux de la pompe vers le filtre. UTILISEZ UNIQUEMENT DES PIÈCES DE RECHANGE D’ORIGINE HAYWARD...
  • Page 21: Nettoyage Manuel

    Avant de retirer l'ensemble des éléments, il est recommandé de le nettoyer au jet avec un tuyau d'arrosage ou, de préférence, avec la lance haute pression Hayward (EC2024). Assurez-vous que la bonde de la vidange n'est pas en place ou que la vanne de vidange est ouverte.
  • Page 22 Il est possible d'effectuer le nettoyage par aspiration directement dans le filtre chaque 0.96 fois que nécessaire. Nettoyez ensuite par contre-lavage s'il y a lieu. 0.82 0.68 Tableau de Perte de Charge (Figure 6) 0.55 0.41 0.27 140 GPM Flow / Flux / Flujo UTILISEZ UNIQUEMENT DES PIÈCES DE RECHANGE D’ORIGINE HAYWARD...
  • Page 23: Hivernage

    Ensuite, suivez les indications sous DÉPOSE DES CARTOUCHES dans la notice d'installation. Remontez les éléments tel qu'indiqué page 7. Veillez à ne pas remettre la bonde de la vidange pendant l'hivernage afin d'éviter de fêler le filtre. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS UTILISEZ UNIQUEMENT DES PIÈCES DE RECHANGE D’ORIGINE HAYWARD...
  • Page 24: Pièces De Rechange

    Pièces de Rechange UTILISEZ UNIQUEMENT DES PIÈCES DE RECHANGE D’ORIGINE HAYWARD USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 25 38 mm (1 ½ po) NPT d’attache et manuel de l’utilisateur. SP0715XR50 Vanne Vari-Flo 51 mm (2 po) NPT SP0410X502S Distributrice à tiroir 51 mm (2 po) SKT UTILISEZ UNIQUEMENT DES PIÈCES DE RECHANGE D’ORIGINE HAYWARD USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 26: Entretien

    Entretien Entretien et Dépannage Consultez votre revendeur agréé Hayward ou le centre de service. Aucune marchandise ne peut être retournée directement à l'usine sans l'autorisation expresse par écrit de Hayward Pool Products. Chimie de la Piscine NIVEAUX RECOMMANDÉS POUR LES ÉLÉMENTS CHIMIQUES 7,2 à...
  • Page 27: Garantie

    Pour obtenir le service de garantie, veuillez contacter le lieu d’achat ou le centre de services Hayward agréé le plus proche. Pour trouver le centre de services Hayward agréé le plus près de chez vous, rendez-vous sur notre page https://hayward.com/dealerlocator.
  • Page 28 Toutes les autres marques de commerce n’appartenant pas à Hayward sont la propriété de leurs propriétaires respectifs. Hayward n’est en aucun cas affilié ou approuvé par ces tiers. Pour plus d’informations sur les brevets, voir www.hayward.com/patents. UTILISEZ UNIQUEMENT DES PIÈCES DE RECHANGE D’ORIGINE HAYWARD...
